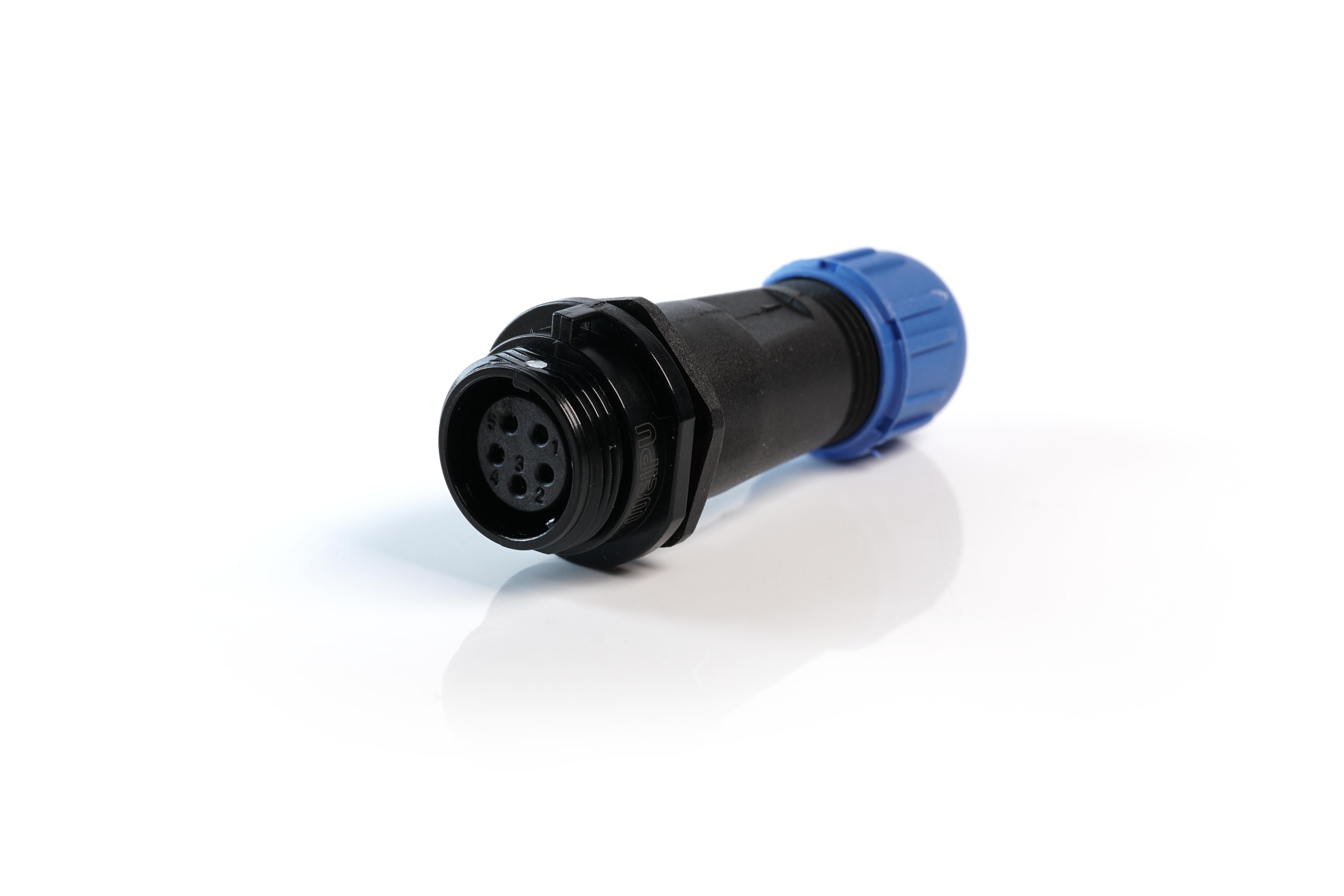

MULTICOMP PRO MP002528 circular connector
The MP-T13 IP68 series features durable, weather-resistant connectors with threaded coupling, suitable for harsh outdoor environments. These connectors support panel mounting, cable mounting, and in-line cable configurations with secure connections and compatibility with a 13mm cut-out. They include solder termination and come in 2, 3, 4, 5, and 7 pole versions, making them versatile for industrial automation, process control, medical, security, and testing applications. An IP68-rated dust cap provides additional protection, ensuring reliability in demanding operational conditions. Designed for both indoor and outdoor use, these connectors meet high standards of durability and performance.
MULTICOMP PRO MP002528 circular connector Specifications:
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Material: Shell made of PC; Insert made of PPS, maximum temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Rated Current: 13A (2-pole), 5A (3,4,5,7 poles)
- Rated Voltage: 250V (2 and 3 poles), 200V (4,5,7 poles)
- Contact Diameter: 1.6mm (2 poles), 1.0mm (3 poles), 1.0mm (4,5,7 poles)
- Test Voltage: 1500V (1 min)
- Contact Resistance: 2.5mΩ (2 and 3 poles), 5mΩ (4,5,7 poles)
- Connector Configurations: Cable mount, in-line cable and rear panel mount
- Coupling Threaded
- Included accessories: Dust caps for receptacle, plug, and different cable sizes
Buy the Multicomp Series IP68 Circular Connector: MP002528
Order the Multicomp series IP68 circular connector MP002528 online today and ensure secure, durable, and weather-resistant connections for industrial automation, process control, security, and outdoor applications. Featuring threaded coupling, solder termination, and multiple configurations like panel, cable, and inline mount, these connectors are built to withstand extreme conditions. Their high IP68 rating guarantees protection against dust and water ingress, making them ideal for demanding environments. Purchase online now to benefit from fast delivery, reliable performance, and easy installation, ensuring your project stays on track with quality components.
Buy Multicomp IP68 Circular Connector MP002528 now and experience unmatched reliability and performance in harsh environments.
