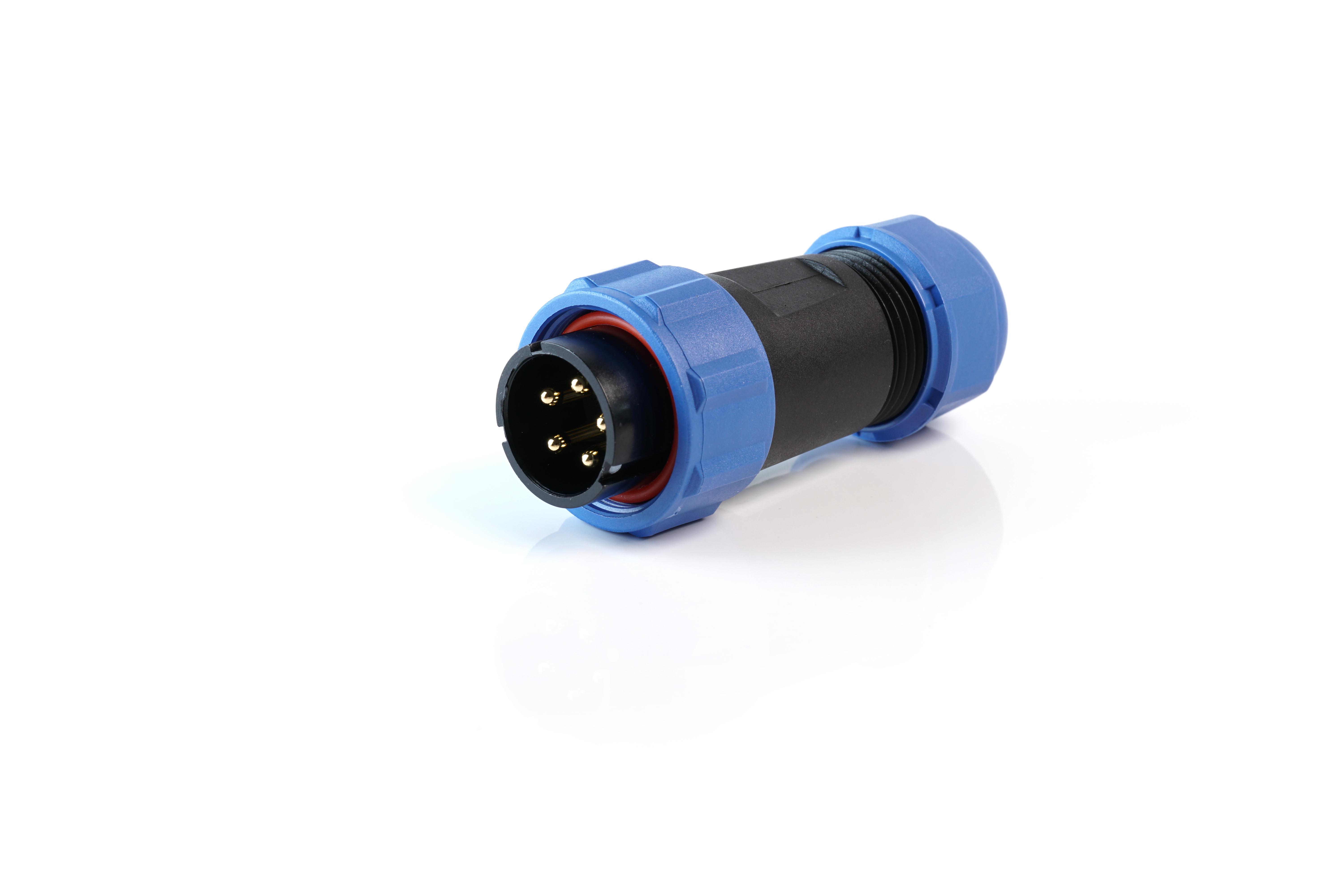

MULTICOMP PRO MP002554 Weatherproof Circular Connector
The MP-T21 IP68 series provides reliable, weatherproof circular connectors with threaded couplings designed for industrial and outdoor applications. These connectors are available in panel mount, cable mount, and inline configurations, supporting 2 to 12 pins for versatile wiring solutions. Made with durable nylon66 shells, brass contacts with gold plating, and PPS inserts rated up to 260°C, they ensure high electrical performance and resistance in harsh environments. Suitable for automation, security, medical, and test equipment, they feature IP68 sealing, solder and screw terminations, and a maximum operating temperature of -40°C to +85°C, supporting robust industrial connectivity.
MULTICOMP PRO MP002554 Weatherproof Circular Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Termination: Solder and Screw
- Temperature Range: -40°C to +85°C
- Contact Diameter: 3 mm (up to 5 pins), 2 mm (7, 9, 12 pins)
- Rated Voltage: 400-500 V
- Rated Current: 5-30 A
- Mating Cycle: 500
- Waterproof: Yes, IP68 rated
- Cable Compatibility: Outer diameter range 7mm to 12mm
- Panel Cutout: Supports 21mm mounting hole
- Cap Availability: IP68 dust cap
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- RoHS Compliant
Buy the Multicomp Series MP002554 Weatherproof Circular Connector: Reliable Industrial Connectivity
Enhance your industrial or outdoor projects with our IP68 weatherproof circular connectors. Designed for durability, these connectors support multiple configurations from 2 to 12 contacts, with robust threaded coupling for secure connections. Constructed with high-quality nylon66 shells, brass contacts with gold plating, and rated for temperatures from -40°C to +85°C, they offer excellent electrical performance and resistance. Ideal for automation, security, medical, and test systems, their versatile mounting options include panel, cable, and inline configurations, ensuring long-lasting, reliable performance in harsh environments.
Get Multicomp IP68 series connectors today—built for rugged industrial environments and outdoor weather resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002554?
You can click on the BUY or RFQ button to purchase MP002554 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002554?
You can download the MP002554 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002554?
MULTICOMP PRO
