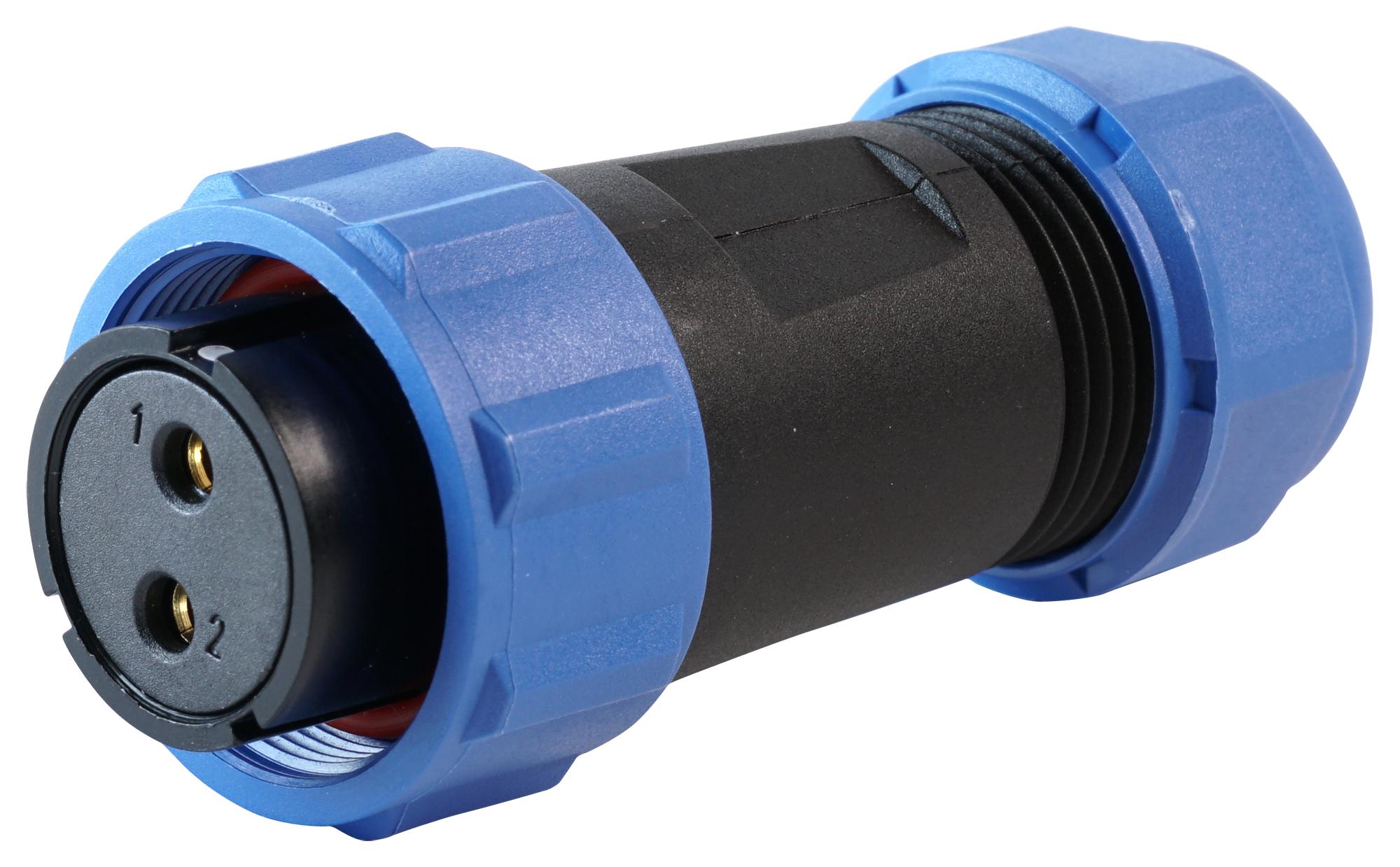

MULTICOMP PRO MP002558 Weatherproof Connectors
The MP-T21 IP68 series connectors are robust and weatherproof, featuring threaded coupling, panel and cable mounting options, and sealing for outdoor or harsh environments. They support multiple configurations with 2, 3, 4, 5, 7, 9, and 12 poles, making them versatile for industrial automation, security, medical, and testing applications. Constructed with a nylon66 shell, PPS inserts, brass contacts with gold plating, and offering solder and screw termination, these connectors withstand temperatures from -40°C to +85°C. An IP68 dust cap is available for extra protection, ensuring reliable, long-term connections.
MULTICOMP PRO MP002558 Weatherproof Connectors Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Ingress Protection: IP68 sealing for dust and water resistance
- Temperature Range: -40°C to +85°C
- Rated Current: 30A for 2-4 poles, 15A for 5 poles, 5A for 7-12 poles
- Rated Voltage: up to 500V AC for 2-4, 5 poles; 400V AC for 12-pole
- Contact Resistance: 1mΩ for smaller contacts, 2.5-5mΩ for larger or more contacts
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder and screw options with compatible wire sizes
- Mating Cycle: 500
- Coupling: Threaded
- Suitable for outdoor and industrial environments
- Dust Cap: Part numbers MP002619 and MP002620 for plugs and receptacles
Buy the Buy multicomp:ro IP68 Connectors Part Number MP002558 Online
Discover the durable IP68 weatherproof connectors, designed for harsh environments with threaded locking, multiple mounting options, and versatile configurations. These connectors combine rugged nylon66 shells, brass contacts with gold plating, and high-temperature PPS inserts to provide reliable electrical connections from -40°C to +85°C. Suitable for industrial automation, security, medical, and testing applications, they support solder and screw terminations, with a lifecycle of 500 mating cycles. An optional dust cap ensures maximum protection against dust and water ingress, ideal for outdoor and critical applications.
Buy multicomp:ro IP68 connectors MP002558 now and experience unmatched reliability and performance in harsh environments.
