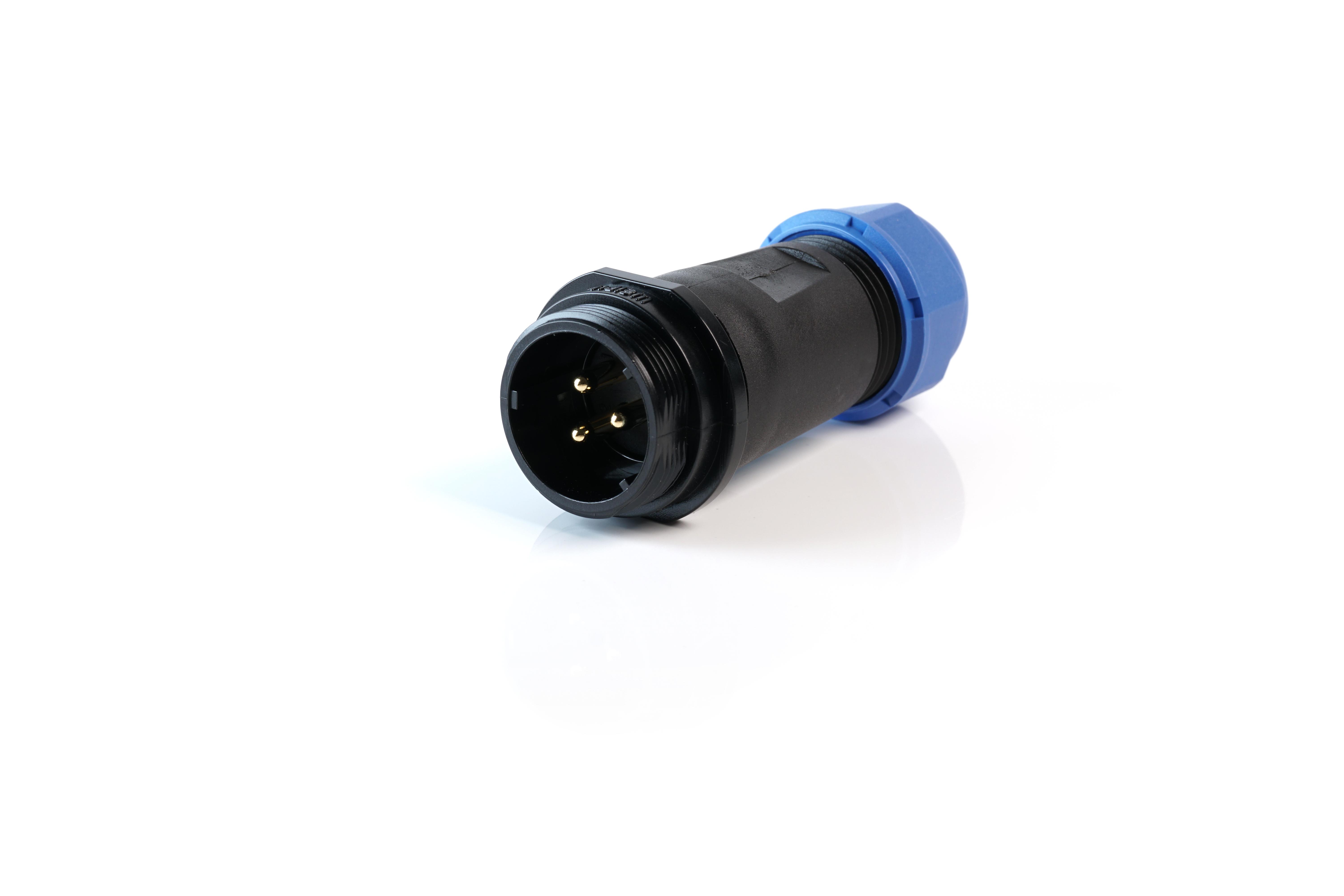

MULTICOMP PRO MP002571 Industrial Connector
The MP-T21 IP68 series offers durable, weatherproof connectors with threaded coupling and sealing to IP68 standards. Suitable for indoor and outdoor use, these connectors feature panel, cable, and inline mounts with 2 to 12 poles. They support solder and screw terminations, fit a 21mm cut-out, and are ideal for automation, medical, security, and industrial applications. The series includes dust caps and various set configurations, ensuring versatile, secure connections for demanding environments, with high ingress protection and robust construction for reliable performance.
MULTICOMP PRO MP002571 Industrial Connector Specifications:
- Ingress Protection Rating: IP68
- Connection Types: Threaded coupling, solder and screw termination
- Mounting Options: Panel, cable, inline cable mount
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Maximum Voltage: 500 V AC
- Maximum Current: 30 A per contact
- Temperature Range: -40°C to +85°C
- Material: Nylon66 shell, insert material PPS, brass contacts with gold plating
- Max. Temperature (Insert): 260°C
- Contact Resistance: 1 mΩ for solder, 2.5-5 mΩ for screw contacts
- Mating Cycles: 500
- Cable Outer Diameter Range: 7mm to 12mm
- Dimensions: Compatible with 21mm panel cutout
- Compliance: RoHS
Buy the Multicomp Series IP68 Connectors: MP002571
Enhance your connectivity with the durable IP68-rated industrial connector series designed for outdoor, industrial, and automation environments. Featuring threaded coupling, versatile mounting options, and high ingress protection, these connectors ensure secure, reliable connections in demanding conditions. Available in multiple configurations with 2 to 12 poles, supporting solder and screw terminations, they are ideal for applications requiring high durability and safety. Buy online today and ensure your systems are protected with high-quality, weatherproof connectors from Multicomp.
Buy Multicomp Series IP68 connectors now and experience unmatched reliability and performance in demanding outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002571?
You can click on the BUY or RFQ button to purchase MP002571 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002571?
You can download the MP002571 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002571?
MULTICOMP PRO
