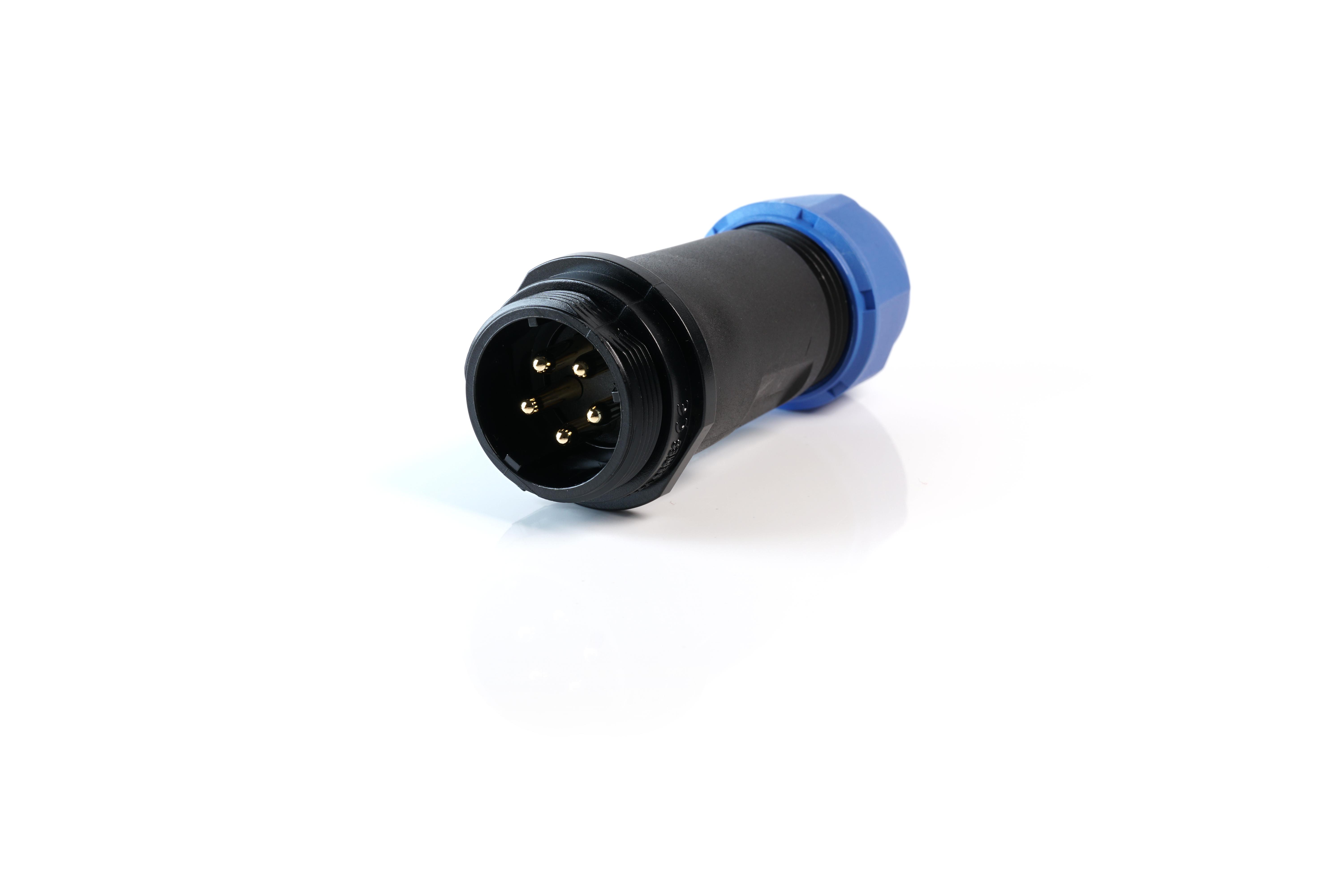

MULTICOMP PRO MP002575 IP68 Circular Connector
The MP-T21 IP68 series connectors are robust and sealed for demanding indoor and outdoor environments. Featuring threaded coupling, these connectors offer IP68 protection against dust and water ingress, making them ideal for industrial automation, process control, and security systems. Available in panel-mounted, cable-mounted, and in-line configurations, they accommodate 2 to 12 contacts with solder or screw terminals. Their durable nylon and brass construction ensures long-lasting performance, with optional IP68-rated caps for extra environmental sealing. Suitable for various industrial and electronic applications requiring reliable connectivity.
MULTICOMP PRO MP002575 IP68 Circular Connector Specifications:
- Shell Material: Nylon66
- Locking Nut, Back Shell, Compressing Nut, Retaining Nut: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Rated Current: 30 A for 2-4 poles, 15 A for 5 poles, 5 A for 7-12 poles
- Rated Voltage: 500 V for 2-5 poles, 400 V for 7-12 poles
- Contact Diameter: 3 mm for 2-5 poles, 2 mm for 7 poles, 1 mm for 9 poles
- Contact Resistance: 1 mΩ for 2-5 poles, 2.5-5 mΩ for larger poles
- Termination: Solder or Screw
- Cable Outer Diameter Range: 7mm to 12mm
- Mating Cycle: 500
- Certifications: RoHS compliant
Buy the Buy Multicomp IP68 Circular Connectors Part Number MP002575 Online
Order the Multicomp IP68 Circular Connector MP002575 online now for dependable performance in demanding environments. Crafted from durable Nylon66 with brass contacts, this connector offers sealed, water-proof, and dust-tight protection. Its threaded coupling ensures a secure fit, making it suitable for industrial automation, process control, and outdoor applications. Available in various configurations with solder or screw terminations, and supporting 2 to 12 poles, it guarantees long-lasting, reliable connectivity in tough conditions. Enhance your projects with this high-quality, sealed industrial connector today.
Get Multicomp IP68 Connectors MP002575 today—designed for reliable connections in harsh environments with high durability and seal protection.
