MULTICOMP PRO MP002587 Sealed Connectors

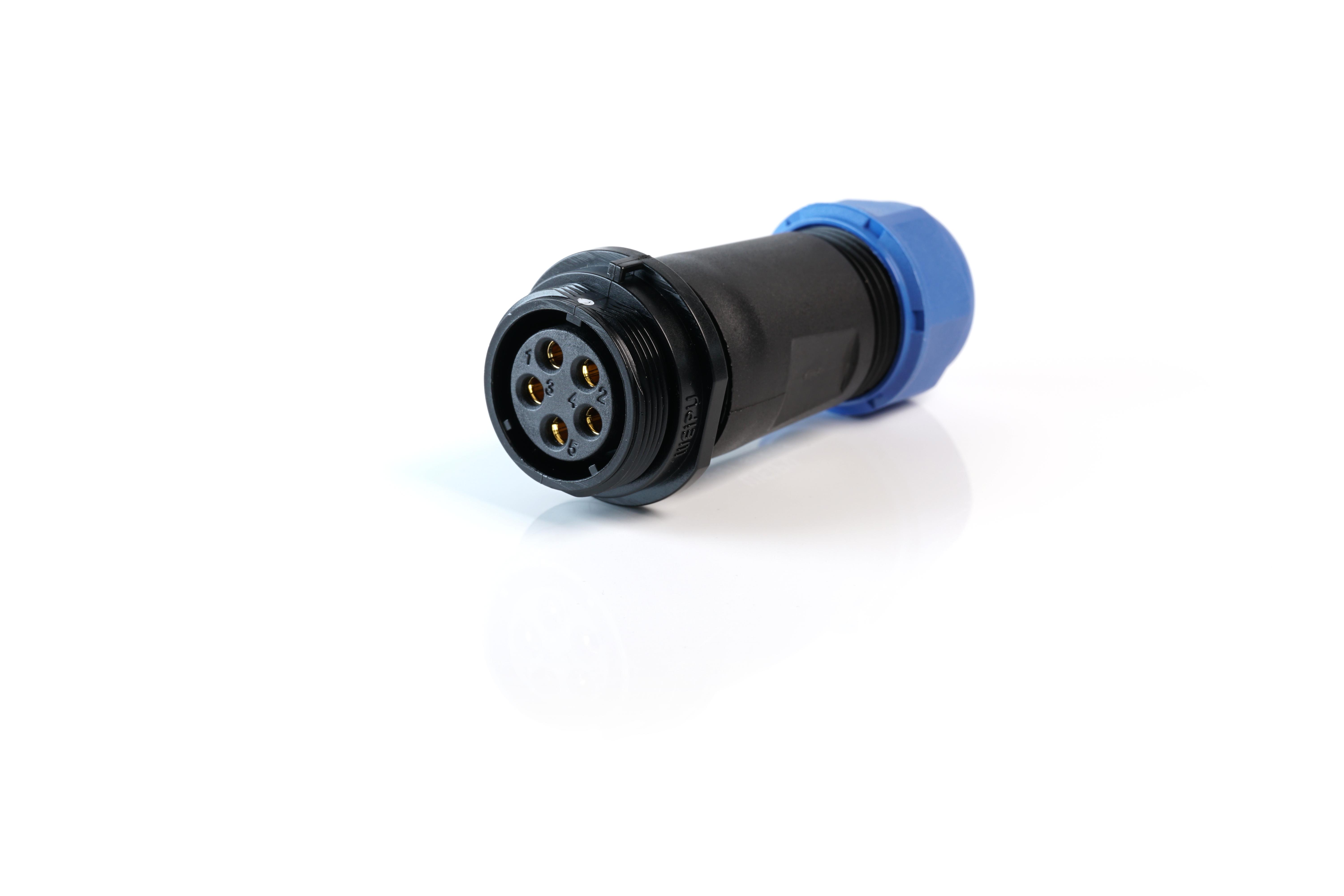

The MP-T21 IP68 series is a durable range of connectors designed with threaded couplings and sealed to IP68 standards. These connectors are available in panel mount, cable mount, and in-line configurations, allowing for cable-to-panel or cable-to-cable connections. Suitable for both indoor and outdoor use, they feature a 21mm panel cut-out, with options for solder or screw terminations. The series includes versions with 2, 3, 4, 5, 7, 9, and 12 poles. An IP68-rated cap provides extra protection. Ideal for automation, medical, security, testing, and industrial automation, these connectors ensure reliability in tough environments.
MULTICOMP PRO MP002587 Sealed Connectors Specifications:
- Coupling: Threaded
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: >2000 MΩ
- Contact Diameter: 1-3 mm depending on contact
- Rated Current: 5A to 30A depending on contact
- Rated Voltage: 400V to 500V depending on model
- Termination: Solder and Screw options
- Cable Outer Diameter Range: 7mm to 12mm
- Panel Cutout: 21mm
- Dust Cap: Available for protection
- Configurations: 2, 3, 4, 5, 7, 9, 12 contacts
- RoHS Compliant
Buy the Multicomp IP68 – Reliable Sealed Connectors for Industrial Applications
Purchase the multicomp IP68 Sealed Connectors online today to ensure your industrial, automation, security, and medical projects benefit from high-quality, waterproof, and durable connections. With various configurations including panel, cable, and inline mountings, these connectors are designed for ease of installation and long-term reliability in challenging conditions. Supported by corrosion-resistant materials, they feature easy solder or screw terminations and are rated IP68 for complete dust and water resistance. Invest now to enhance your project’s robustness and operational safety with trusted sealing expertise.
Order your multicomp IP68 connector today and secure reliable performance in demanding environments for your industrial projects.
