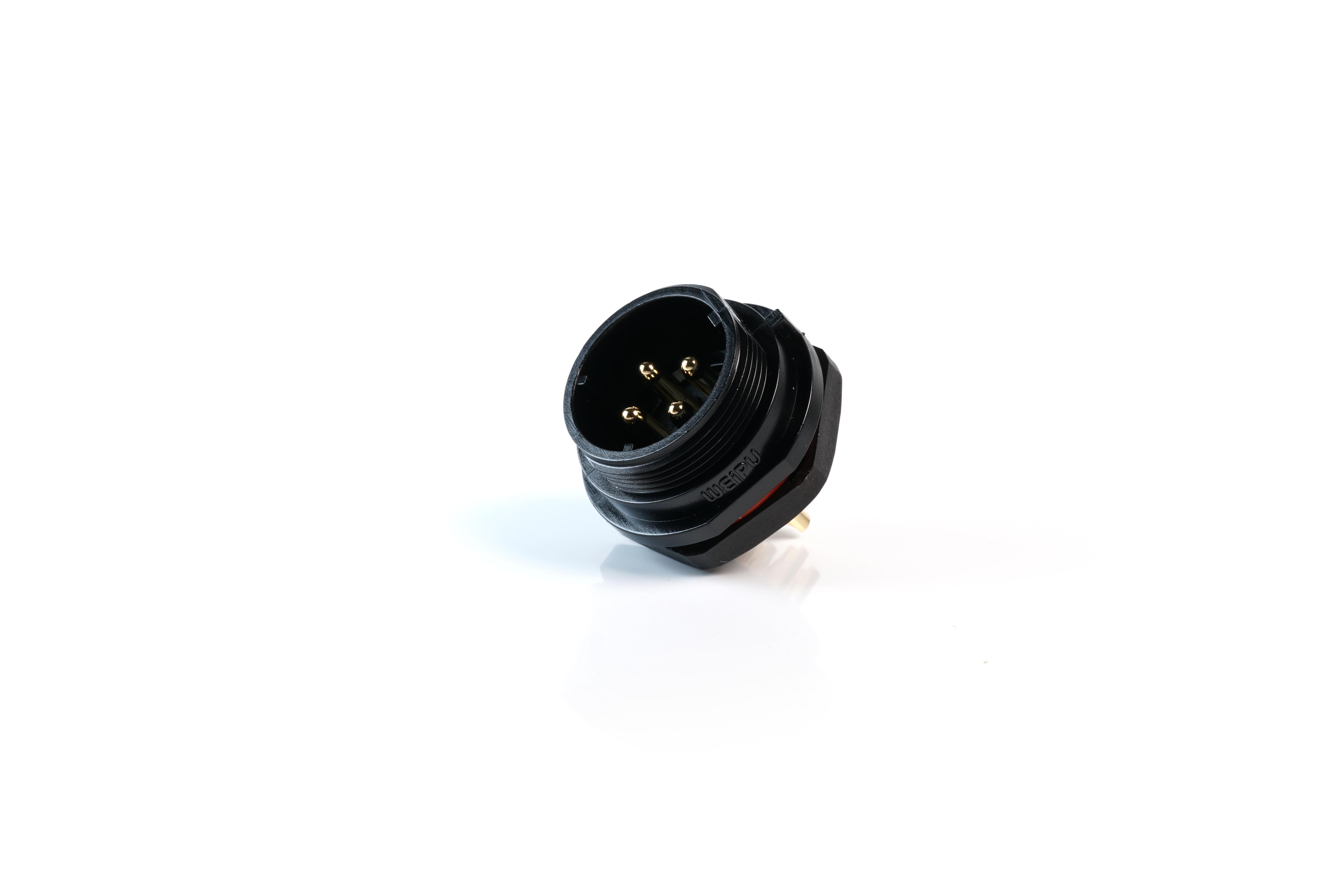

MULTICOMP PRO MP002602 industrial connector
The MP-T21 IP68 series connectors are rugged, weather-resistant components designed for durable outdoor and indoor applications. Featuring threaded coupling and IP68 sealing, these connectors support cable-to-panel and cable-to-cable connections, ideal for automation, security, medical, and industrial equipment. Available in panel, cable, and inline mount configurations, they include models with 2, 3, 4, 5, 7, 9, and 12 poles. Termination options include solder and screw, with corresponding connector part numbers. An optional dust cap provides extra protection, and they are rated for 500 mating cycles with a temperature range of -40°C to +85°C.
MULTICOMP PRO MP002602 industrial connector Specifications:
- Ingress Protection: IP68
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Operating Temperature Range: -40°C to +85°C
- Rated Voltage: 400-500 V AC (depending on model)
- Rated Current: 5-30 A (depending on number of contacts)
- Contact Diameter: 1-3 mm (depending on contact number)
- Mating Cycle Life: 500 cycles
- Termination: Solder and screw options for wire sizes up to 4/11 mm² or 50/75 AWG
- Cable Range: Suitable for cables with outer diameter 7mm to 12mm
- Coupling Threaded with locking nut, shell material nylon
- Dimensions: Supports 21mm panel cut-outs, includes locking and back shells, and rubber sealing components
- Conforms to RoHS compliance
- Capacities: 2, 3, 4, 5, 7, 9, and 12 contacts per connector
Buy the Buy multicomp IP68 Connectors Part Number MP002602 Online
Discover the high-quality multicomp IP68 connectors designed for robust outdoor and industrial applications. These connectors feature threaded coupling, weatherproof sealing, and support multiple mounting options including panel, cable, and inline mounts. They accommodate various pole configurations with solder and screw terminations suitable for wire sizes up to 4/11 mm². Ideal for automation, medical devices, security systems, and test equipment, they ensure long-lasting durability and reliable performance across a wide temperature range. Order online today for fast delivery and premium quality.
Get multicomp IP68 connectors today—built for durability, weather resistance, and reliable connections in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002602?
You can click on the BUY or RFQ button to purchase MP002602 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002602?
You can download the MP002602 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002602?
MULTICOMP PRO
