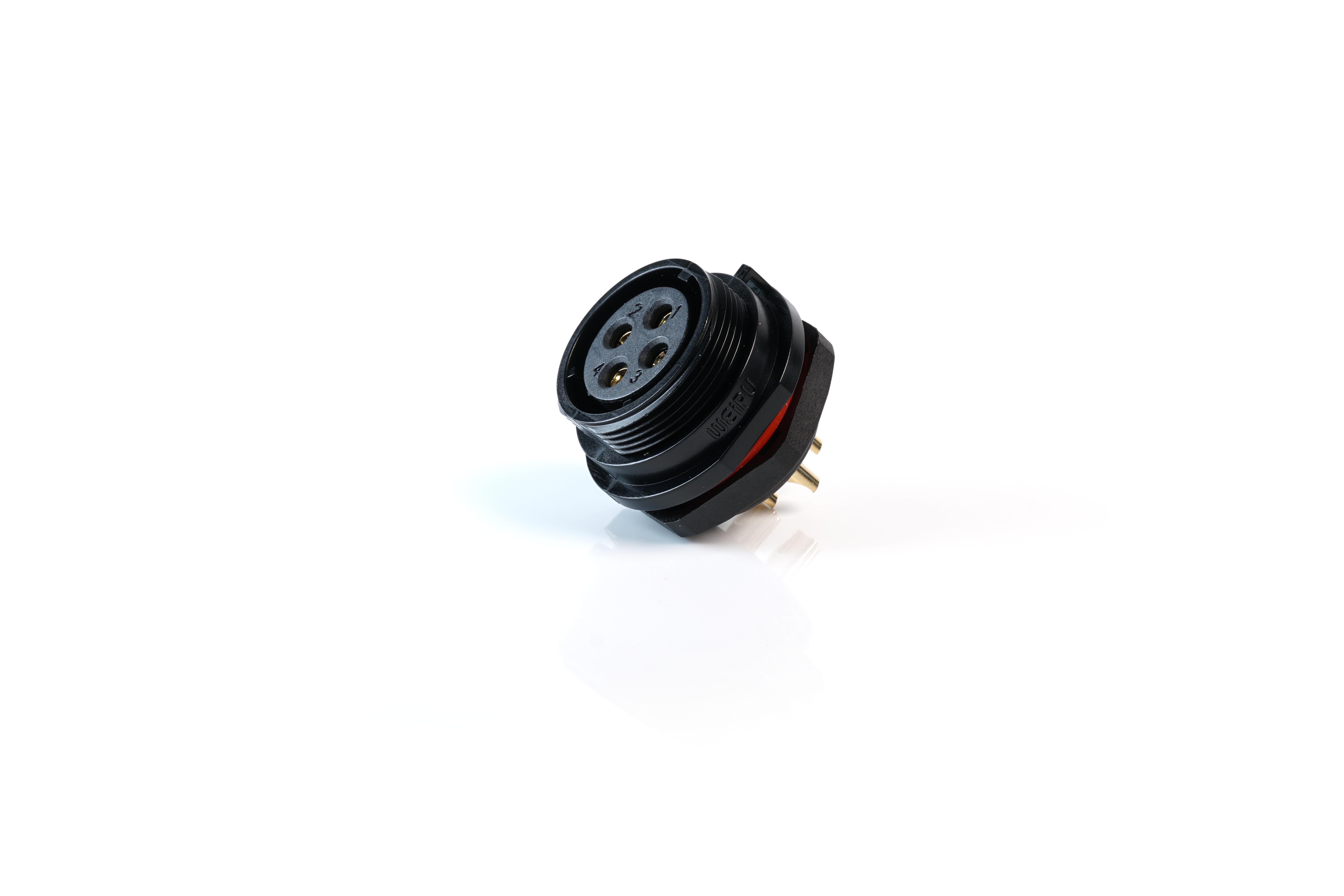

MULTICOMP PRO MP002613 IP68 Connector
The MP-T21 IP68 series connectors are robust, threaded connectors designed for reliable outdoor and indoor use with weatherproof sealing. They feature a 21mm mounting cut-out, available in cable mount, in-line, and panel mount configurations, accommodating various installation needs. Made from nylon66 with a max temperature of 260°C, brass contacts with gold plating, and optional solder or screw terminations, these connectors support up to 500 mating cycles. Suitable for automation, medical, security, and industrial applications, they include a compatible IP68 cap for enhanced protection.
MULTICOMP PRO MP002613 IP68 Connector Specifications:
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Temperature Range: -40°C to +85°C, Max. Temperature 260°C
- Ingress Protection: IP68-rated sealing
- Coupling Type: Threaded
- Contact Numbers: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30A (2-4 contacts), 15A (5 contacts), 5A (7-12 contacts)
- Rated Voltage: Up to 500V, Test Voltage: 1500V for 1 minute
- Termination: Solder or screw, compatible wire sizes 4/11 to 2/14 mm²
- Mating Cycle: 500 cycles
- Dimensions: 21mm mounting cut-out, suitable for cable diameters 7-12mm
- Compliance: RoHS
- Additional features: IP68 dust cap available, suitable for outdoor applications
Buy the Buy Multicomp Series MP002613 Part Number MP002613 Online
Get your Multicomp Series MP002613 IP68 connector now online and enjoy fast delivery and competitive pricing. Ideal for outdoor, industrial automation, security, and medical environments, these durable connectors provide weatherproof sealing and reliable performance. Designed with a threaded coupling and available in multiple configurations, they support solder and screw terminations, ensuring flexible installation options. Whether you need a cable mount, panel mount, or in-line connector, order today to ensure hassle-free, dependable connections in demanding conditions and enhance your project reliability.
Order your Multicomp Series MP002613 IP68 cable connector today and secure reliable, weatherproof connections for industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002613?
You can click on the BUY or RFQ button to purchase MP002613 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002613?
You can download the MP002613 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002613?
MULTICOMP PRO
