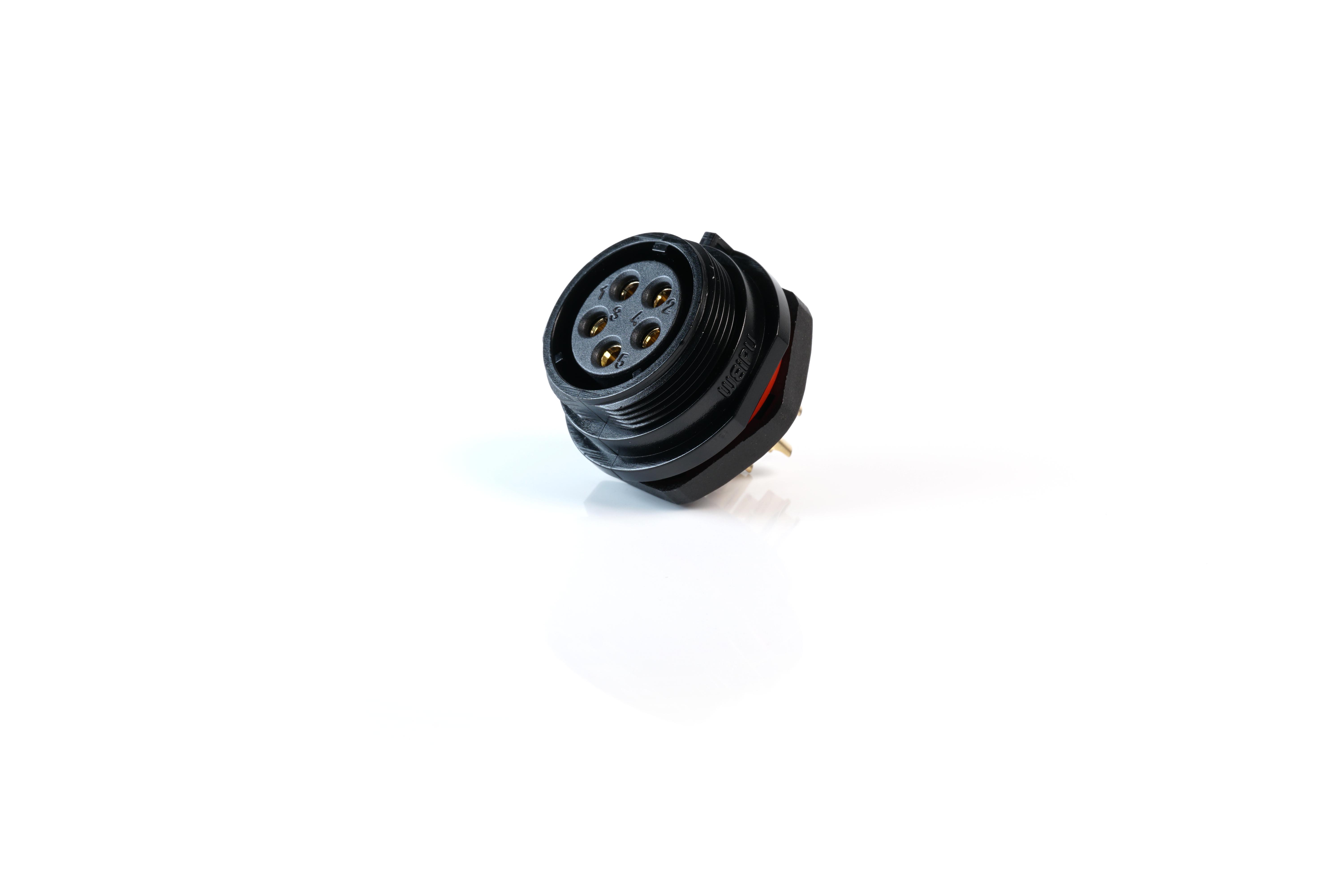

MULTICOMP-PRO MP002615 Industrial Circular Connector
The MP-T21 IP68 series connectors are rugged, weatherproof, and versatile, offering threaded coupling, solder and screw termination options, and configurations from 2 to 12 poles. Designed for reliable indoor and outdoor use, these connectors feature nylon66 shells, PPS inserts, and brass contacts with gold plating, ensuring durability and corrosion resistance. Suitable for automation, industrial control, security, medical, and measurement applications, the connectors support IP68 sealing, with an easy-mount design for a secure fit in tight spaces. Available with optional dust caps for enhanced protection, they are ideal for demanding environments where reliable connection is critical.
MULTICOMP-PRO MP002615 Industrial Circular Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Threaded
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30 A (for up to 4 contacts), 15 A (5 contacts), 5 A (7 or 12 contacts)
- Rated Voltage: Up to 500 V, 400 V for certain versions
- Test Voltage: 1500 V AC (1 min)
- Contact Resistance: 1 mΩ (up to 4 contacts), 2.5-5 mΩ (higher contacts)
- Termination: Solder or screw
- Cable Outer Diameter Range: 7mm to 12mm
- Dimensions: Suitable for 21mm panel cutout, with threading for secure mounting
- RoHS Compliant
Buy the Multicomp IP68 Connectors – Reliable Industrial Connectivity for Automated Systems
Enhance your equipment with multicomp IP68 circular connectors, delivering reliable, weatherproof, and secure connections. Ideal for industrial automation, outdoor use, and demanding environments, these connectors offer versatile configurations, solder and screw terminations, and excellent durability. Designed with rugged nylon66 shells, brass contacts, and optional dust caps, they ensure a long service life and dependable performance. Reliable connection quality and IP68 sealing make these connectors a smart choice for various industrial, security, and measurement applications. Order online today to secure premium protection and performance for your projects.
Buy multicomp IP68 connectors now and ensure robust, weatherproof, and corrosion-resistant connections for industrial automation and outdoor applications.
