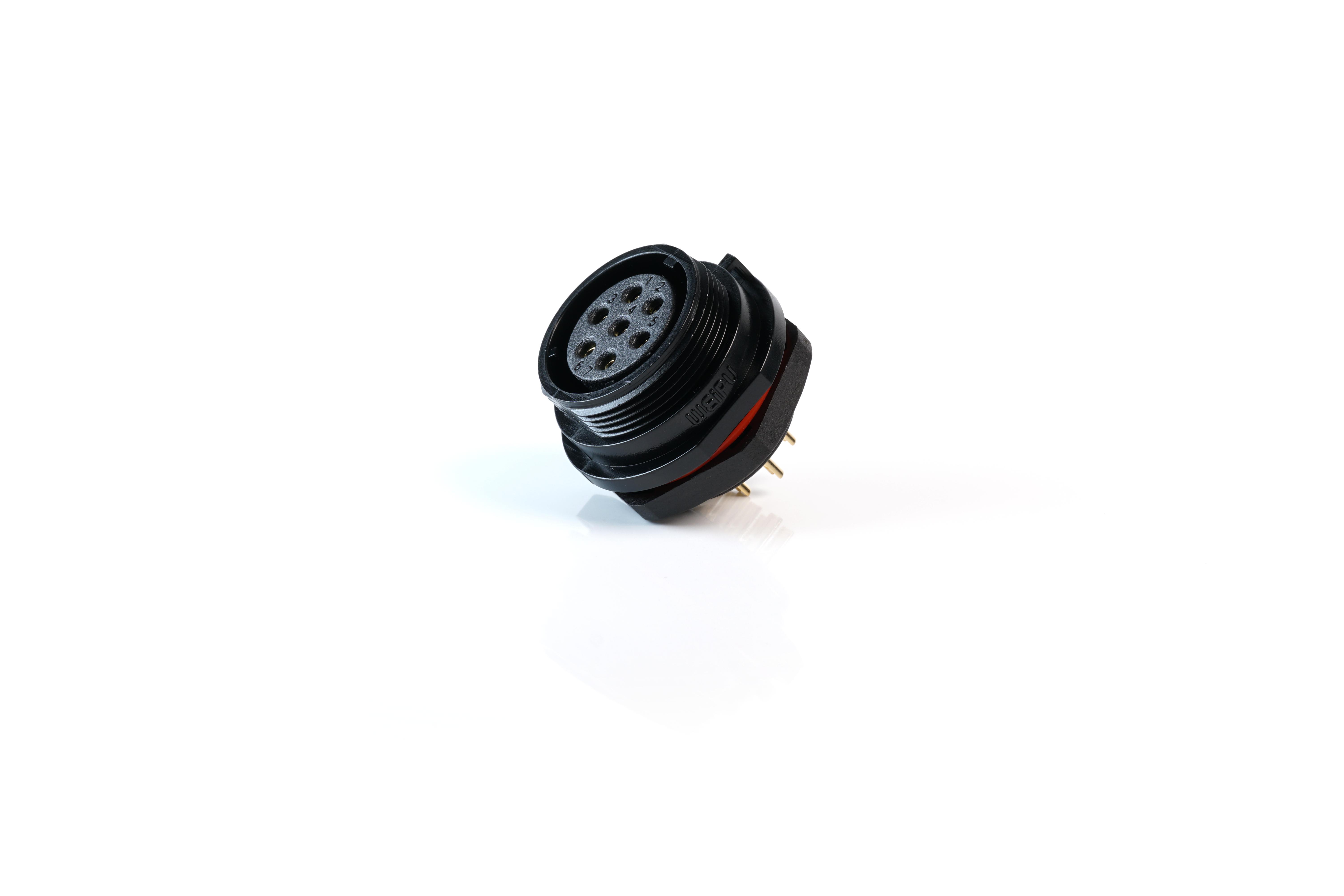

MULTICOMP-PRO MP002616 Industrial Connectors
The MP-T21 IP68 series is a durable range of connectors designed for harsh environments. These connectors feature threaded couplings and weather sealing rated at IP68, ensuring resistance to dust and water. Available in panel mount, cable mount, and in-line configurations, they facilitate cable-to-panel and cable-to-cable connections, making them suitable for both indoor and outdoor use. Options include models with 2, 3, 4, 5, 7, 9, and 12 poles, with solder or screw terminations. An IP68 cap is also available to enhance protection. These connectors are ideal for applications in automation and process control, medical equipment, security systems, test and measurement, and industrial automation.
MULTICOMP-PRO MP002616 Industrial Connectors Specifications:
- Material: Nylon66 shell, PPS insert, Brass contact with gold plating
- IP Rating: IP68
- Coupling: Threaded
- Temperature Range: -40°C to +85°C
- Contact Resistance: 1 mΩ for solder, 2.5-5 mΩ for screw
- Rated Current: 30 A (2-4 poles), 15 A (5 poles), 5 A (7-12 poles)
- Rated Voltage: 500 V (up to 5 poles), 400 V (12 poles)
- Test Voltage: 1500 V for 1 min
- Contact No.: 2, 3, 4, 5, 7, 9, 12
- Mating Cycle: 500
- Termination: Solder or screw
- Wire Size: 0.75/18 AWG for solder, 1.5/15 mm² for screw
- Dust Caps: Available for receptacle and plug
- Connector Configurations: Cable mount, inline, rear panel mount
- Dimensions and sizes vary per model, compatible with cable diameters 7mm to 12mm
- RoHS compliant
Buy the Multicomp IP68 Connector – Reliable Industrial Connectors for Harsh Environments
Upgrade your industrial applications with Multicomp IP68 connectors. Crafted for durability and weather resistance, these connectors ensure secure, reliable connections in harsh environments. Perfect for automation, security systems, and medical equipment, they come in various configurations with solder or screw terminations, supporting cable or panel mounting. Browse our selection, select your model, and purchase online easily. Fully RoHS compliant, these connectors are designed to withstand extreme temperatures and repeated mating cycles, ensuring long-lasting operational performance in your projects.
Buy Multicomp IP68 connectors now and experience unmatched durability and reliable performance in demanding industrial settings.
