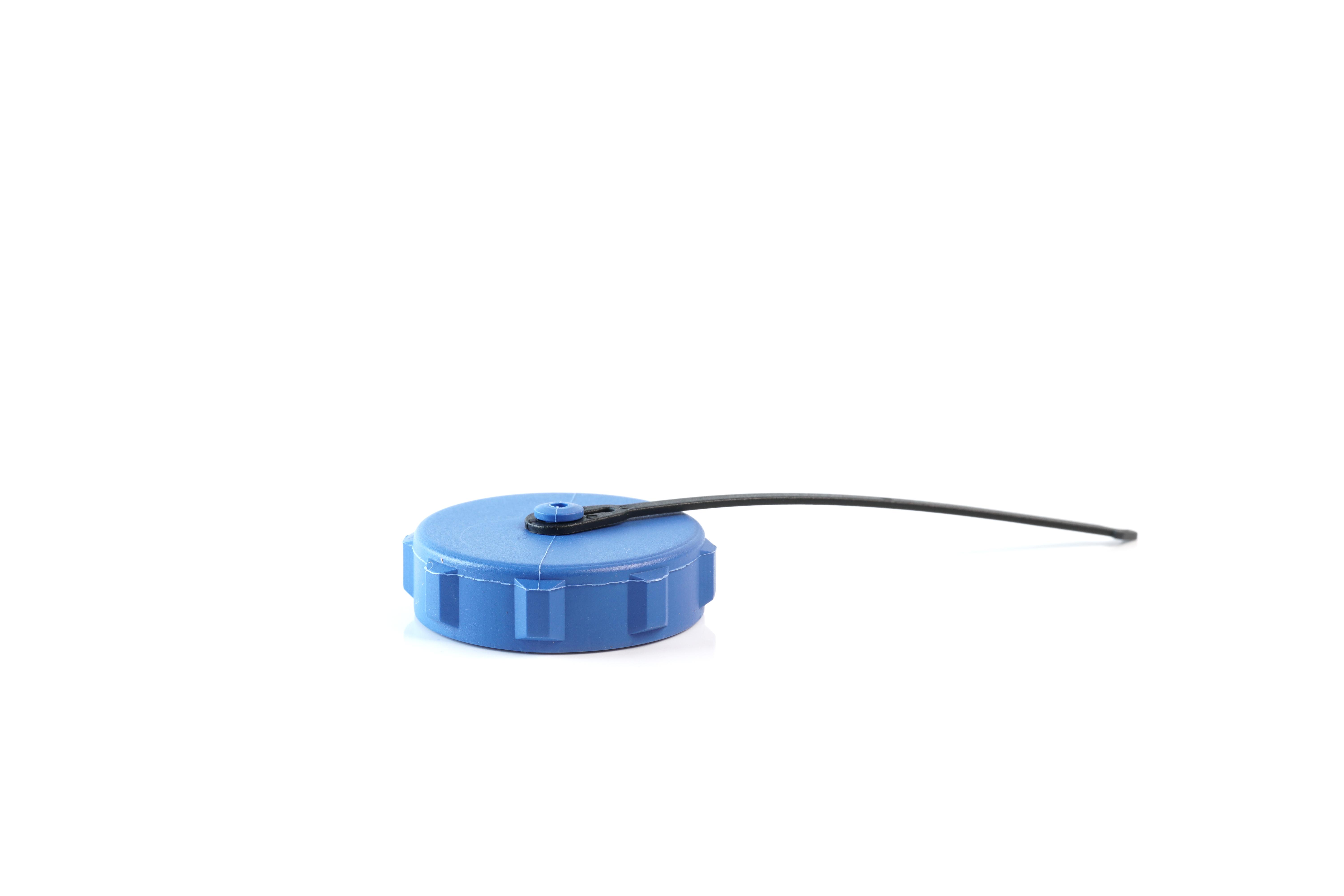

MULTICOMP PRO MP002620 Weatherproof industrial connector
The MP-T21 IP68 series connectors are robust, weatherproof, and designed for reliable connections in harsh environments. Featuring threaded coupling and water and dust protection rated IP68, they accommodate multiple configurations of 2 to 12 poles with solder or screw termination options. Suitable for indoor and outdoor use, these connectors include panel, cable, and inline mount types, with compatibility for 21mm panel cut-outs. They are ideal for automation, industrial applications, security systems, and medical equipment, providing secure, durable, and corrosion-resistant connections in demanding conditions.
MULTICOMP PRO MP002620 Weatherproof industrial connector Specifications:
- IP Rating: IP68
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Coupling: Threaded
- Termination: Solder and screw options
- Max. Temperature: 260°C
- Contact Material: Brass with gold plating
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30A (up to 4 contacts), 15A (5 contacts), 5A (7 and 9 contacts)
- Rated Voltage: 500V (up to 5 contacts), 400V (9 contacts)
- Test Voltage: 1500V for 1 min
- Contact Resistance: 1mΩ (up to 4 contacts), 2.5mΩ (7 contacts), 5mΩ (9, 12 contacts)
- Operating Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Cable Outer Diameter Range: 7mm to 12mm
Buy the Multicomp Series IP68 Connectors: MP002620
Order the durable IP68 rated industrial connector today for secure, weatherproof connections in harsh environments. Featuring threaded coupling, solder and screw termination, and available in multiple configurations, this connector is ideal for automation, process control, and outdoor electrical systems. Designed with corrosion-resistant materials, it ensures reliable performance and long-term durability in demanding applications. Easily install with panel, cable, or inline mount options, providing flexibility for your industrial, security, or medical needs. Buy online now for fast delivery and quality assurance.
Get Multicomp IP68 connectors today—built for harsh environments and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002620?
You can click on the BUY or RFQ button to purchase MP002620 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002620?
You can download the MP002620 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002620?
MULTICOMP PRO
