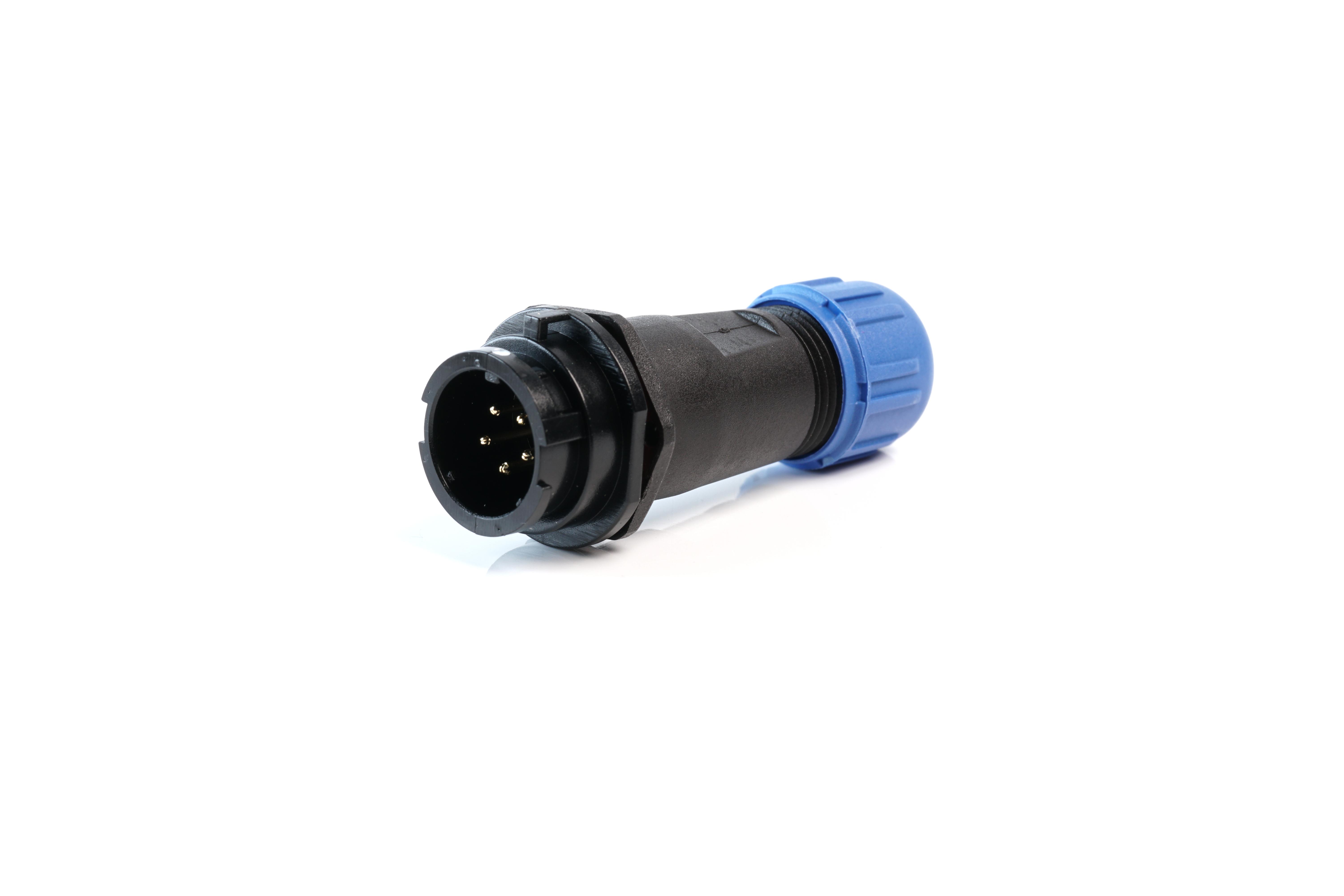

MULTICOMP PRO MP002634 IP67 Circular Connector
The MP-T13 IP67 series offers robust, weatherproof connectors with bayonet coupling, suitable for outdoor and harsh environments. Available in panel, cable, and inline mount configurations, these connectors support quick connect/disconnect with IP67 resistance, making them perfect for automation, process control, and industrial applications. They feature brass contacts with gold plating, solder termination, and accommodate various pole configurations from 2 to 7. The series includes a dust cap and options for cable outer diameters between 4mm and 8mm. Designed for high durability, these connectors withstand extreme temperatures from -40°C to +80°C. Ideal for reliable, weatherproof connections in demanding environments.
MULTICOMP PRO MP002634 IP67 Circular Connector Specifications:
- Housing Material: Nylon66, V-0 fire resistant
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1mm to 1.6mm depending on pole count
- Rated Current: 13A for 2-pole, 5A for 3-7 poles
- Rated Voltage: 250V for 2-3 poles, 200V for 4 poles, 180V for 5 poles, 125V for 7 poles
- Test Voltage: 1500V (1 min)
- Number of Contacts: 2, 3, 4, 5, 7
- Cable Outer Diameter Range: 4mm to 8mm
- Mating Cycles: 500
- Operating Temperature: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
Buy the Buy Multicomp IP67 Connectors Part Number MP002634 Online
Purchase the IP67 circular connector series online today and enjoy reliable, weatherproof connections suitable for outdoor, industrial, and automation environments. These connectors feature high durability with brass contacts, gold plating, solder termination, and a robust nylon66 housing rated IP67 for dust and water resistance. Available in various configurations from 2 to 7 poles, ideal for demanding applications. Easy to install, reusable up to 500 mating cycles, and designed for extreme temperature ranges, ensuring consistent performance and longevity for your projects.
Buy Multicomp IP67 connectors MP002634 now and experience unmatched reliability and weatherproof performance for industrial automation and outdoor applications.
