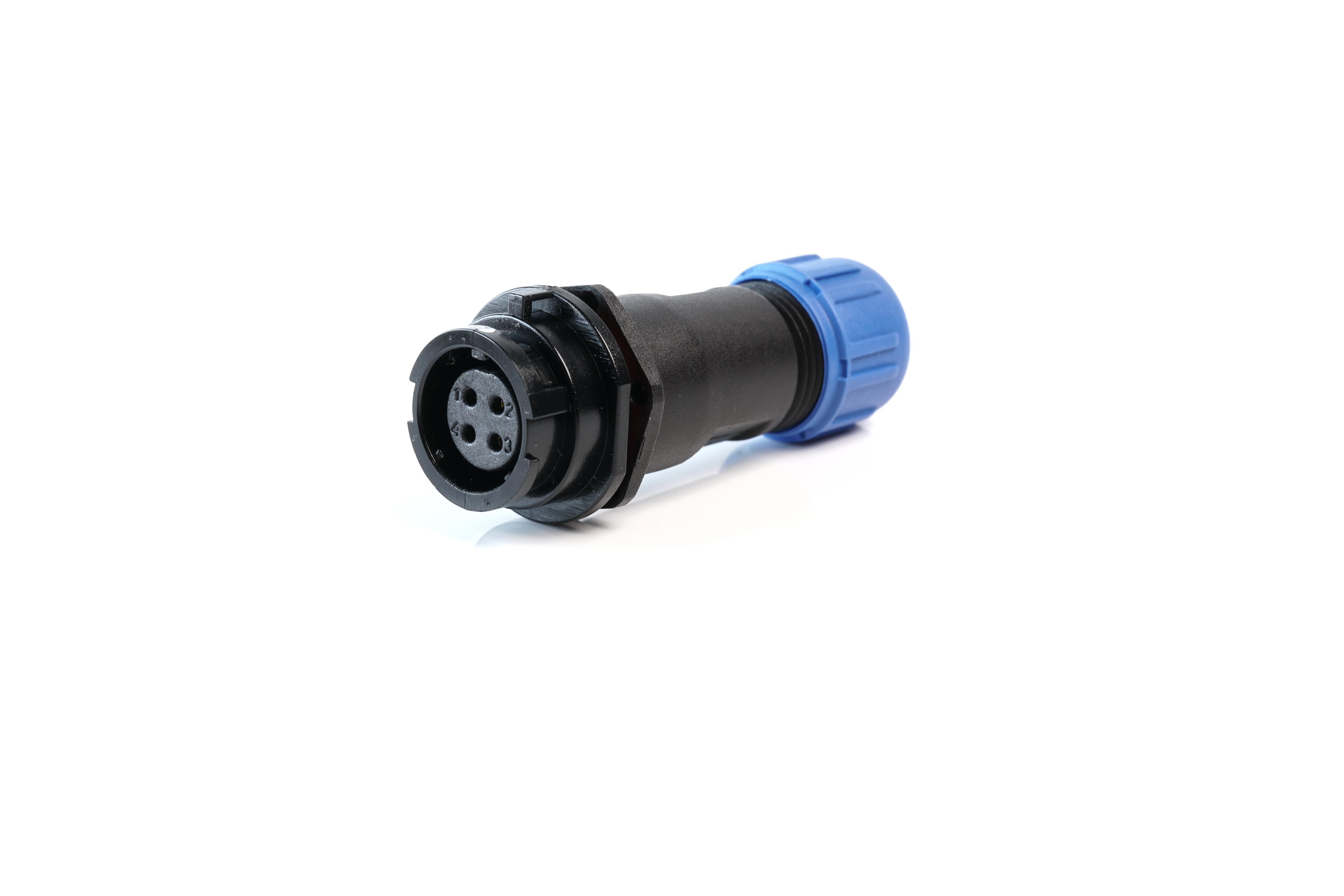

MULTICOMP PRO MP002638 Industrial Waterproof Connectors
The IP67 multicomp ero series connectors provide durable, weatherproof connections for industrial, automation, and outdoor applications. Featuring bayonet coupling for quick, secure connections, these connectors are available in panel mount, cable mount, and inline configurations. They support multiple pole options including 2, 3, 4, 5, and 7 poles, with solder terminations for reliable electrical contact. Their rugged design ensures resistance to dust and water, making them ideal for harsh environments. An IP67-rated dust cap offers extra protection. Suitable for process control, medical, security, testing, and measurement applications, these connectors deliver dependable performance under demanding conditions.
MULTICOMP PRO MP002638 Industrial Waterproof Connectors Specifications:
- IP Rating: IP67
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Coupling: Bayonet
- Contact Diameter: 1mm to 1.6mm depending on pole count
- Rated Current: 13A for 2p, 5A for 3p and above
- Rated Voltage: 250V for 2p, 200V and below for higher poles
- Material and fire resistance: V-0
- Mating Cycles: 500
- Cable Outer Diameter Range: 4mm to 6.5mm or 8mm
- Contact Resistance: 2.5mΩ to 5mΩ
- Termination: Solder
- Dimensions: Suitable for 13mm panel cut-out, with various configurations
- Weatherproof: Yes, IP67 rating
- Includes: Optional dust cap for protector
Buy the Multicomp Series IP67 Connectivity: MP002638
Enhance your industrial and outdoor installations with our waterproof IP67 connectors. Featuring bayonet coupling for quick setup and secure connections, these rugged connectors support multiple poles and mounting options, ideal for harsh environments. Constructed with durable nylon and brass contacts with gold plating, they provide excellent corrosion resistance, high current capacity, and reliable electrical performance. A protective dust cap is also available to keep connections clean and protected. Purchase online today for quick delivery and ensure your applications are secure, weather-resistant, and ready for long-term use.
Buy Multicomp IP67 connectors including MP002638 now and experience unmatched durability and reliable weatherproof performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002638?
You can click on the BUY or RFQ button to purchase MP002638 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002638?
You can download the MP002638 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002638?
MULTICOMP PRO
