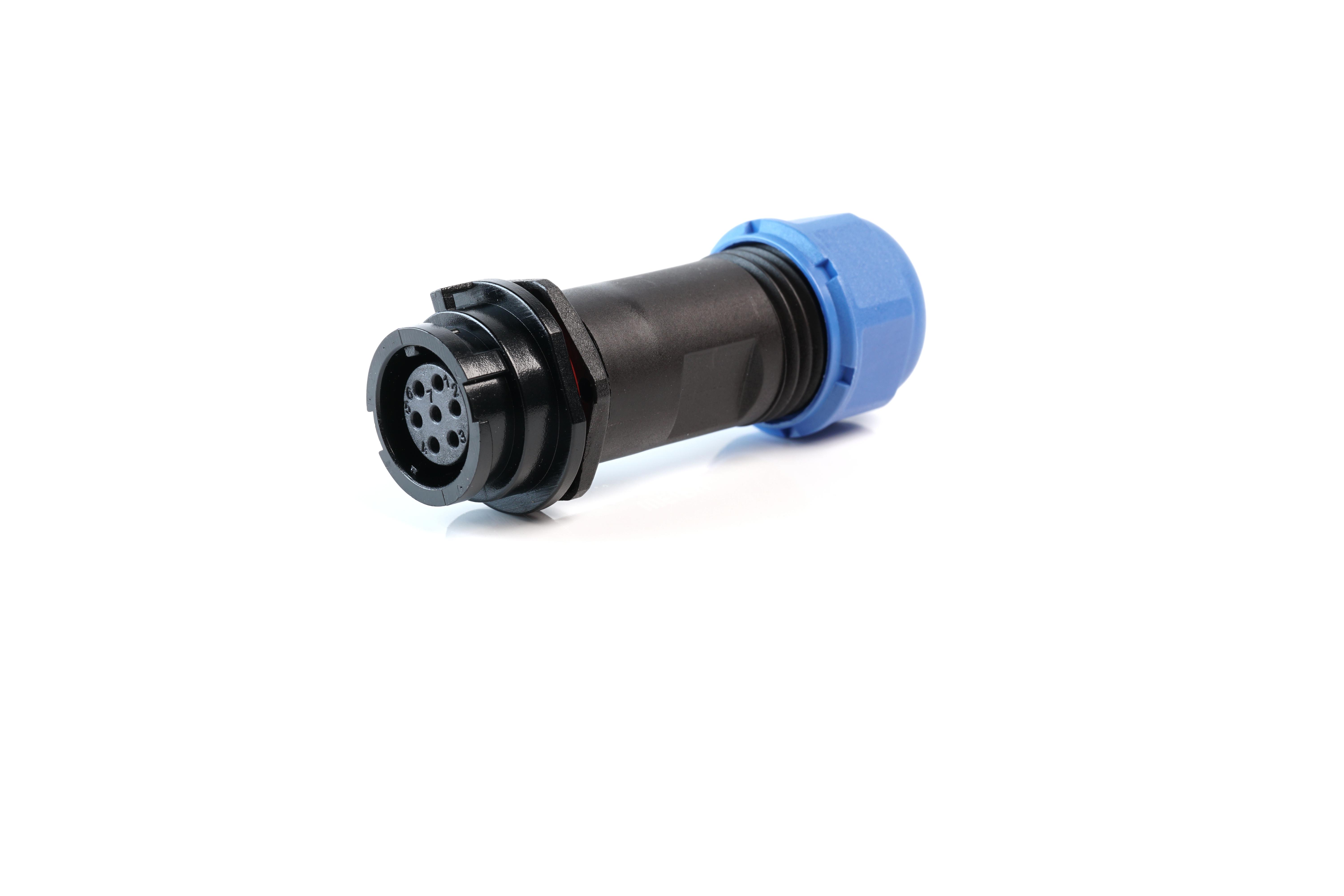

MULTICOMP PRO MP002640 Industrial waterproof connector
The MP-T13 IP67 series connectors are highly durable and protected against dust and water, making them ideal for outdoor and demanding industrial environments. Featuring bayonet coupling for secure and quick connections, these connectors come in panel, cable, and inline configurations. They support solder termination, suit 13mm panel cut-outs, and are rated IP67 for waterproof performance. Available in 2, 3, 4, 5, and 7-pole variants, with an optional protective cap, these connectors excel in automation, medical, security, and industrial applications.
MULTICOMP PRO MP002640 Industrial waterproof connector Specifications:
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Rating: IP67 waterproof and dustproof
- Coupling: Bayonet for quick connection
- Termination: Solder
- Number of contacts: 2, 3, 4, 5, 7
- Contact diameter: 1.6 mm for 2P, 1 mm for 3P, 1 mm for 4P, 1 mm for 5P, 1 mm for 7P
- Rated current: 13 A for 2P, 5 A for 3P and above
- Rated voltage: 250 V for 2P, 200-125 V for others
- Test voltage: 1500 V for 2P-4P, 1000 V for 5P-7P
- Operating temperature: -40°C to +80°C
- Mating cycles: 500
- Cable outer diameter range: 4mm to 6.5mm
- Dielectric resistance: 2000 MΩ
- Weather-resistant cap available for protection
Buy the MultiComp Series IP67 Waterproof Connectors: MP002640
Discover the reliability and versatile applications of the IP67 waterproof connector from the MultiComp series. Designed with a bayonet coupling mechanism, these connectors offer fast, secure connection options suitable for industrial automation, medical devices, security systems, and outdoor equipment. Available in multiple configurations including panel, cable, and inline mounts, each connector supports solder termination and withstands harsh environmental conditions with a waterproof rating of IP67. These connectors are tested for over 500 mating cycles, making them ideal for demanding and long-term use.
Get MultiComp IP67 waterproof connector MP002640 today—built for quick connection and long-lasting industrial durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002640?
You can click on the BUY or RFQ button to purchase MP002640 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002640?
You can download the MP002640 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002640?
MULTICOMP PRO
