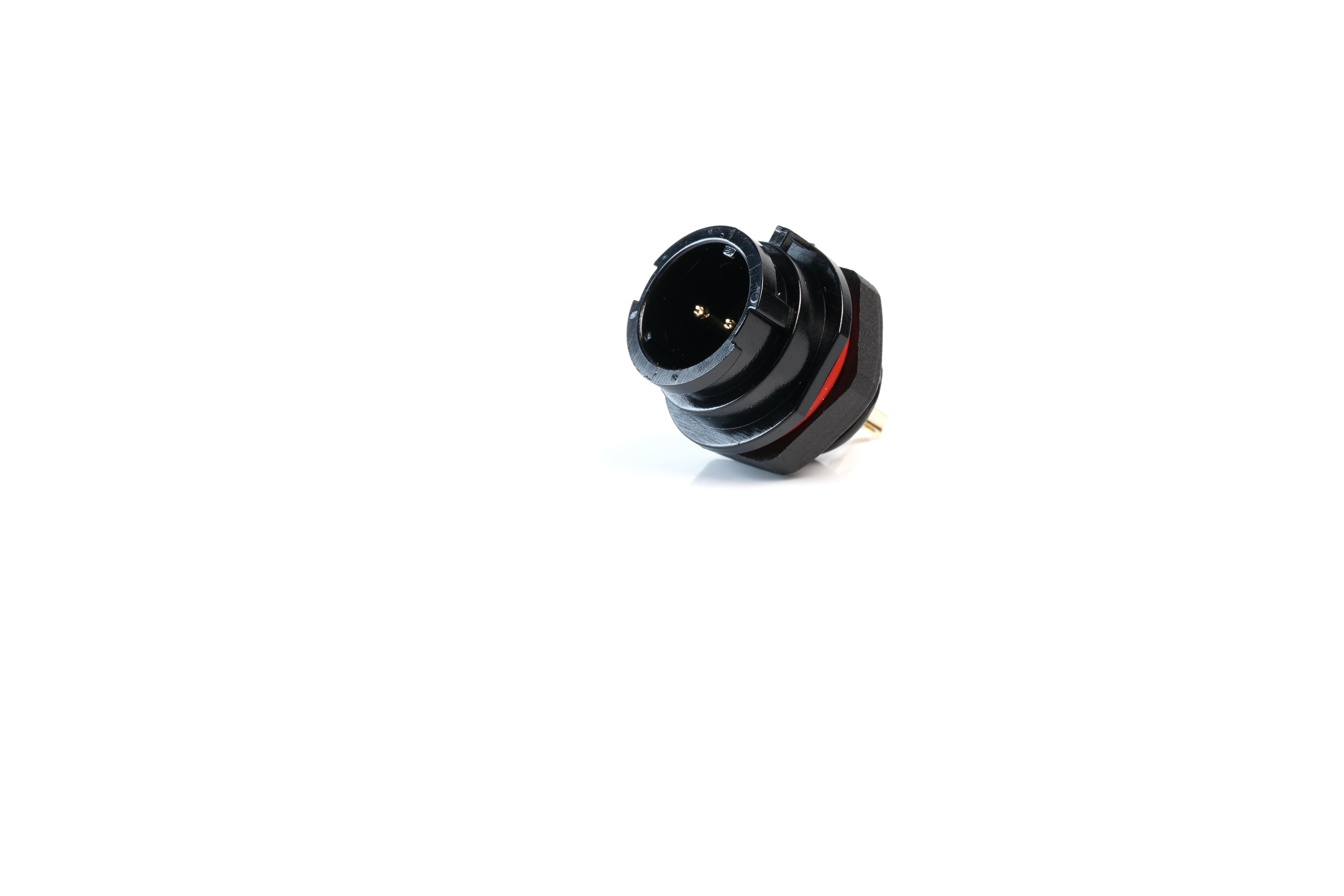

MULTICOMP PRO MP002646 IP67 Circular Connector
The MP-T13 IP67 series is a durable range of connectors featuring bayonet coupling for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, allowing versatile cable-to-panel or cable-to-cable connections. Rated IP67, they provide excellent weather resistance, suitable for indoor and outdoor use. Key features include a 13mm cut-out size, solder termination, and versions with 2, 3, 4, 5, and 7 poles. An IP67 protective cap offers extra durability, making these connectors ideal for automation, industrial, medical, security, and measurement applications.
MULTICOMP PRO MP002646 IP67 Circular Connector Specifications:
- Material: Nylon66 shell, PPS insert, brass contact with gold plating
- Contact Material: Brass with gold plating
- Coupling Type: Bayonet
- IP Rating: IP67
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Contact Resistance: 2.5 mΩ for 2 and 3 pole, 5 mΩ for others
- Rated Current: 13A for 2 pole, 5A for 3, 4, 5, 7 pole versions
- Rated Voltage: 250V for 2 and 3 pole, 200V, 180V, 125V for others
- Solder Termination: Yes
- Contact Diameter: 1.6mm for 2 pole, 1mm for 3 pole, 1mm for others
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Mating Cycle: 500
- Insulation Resistance: 2000 MΩ
- Thermal Resistance: Max 260°C for insert material
Buy the Innovative Connectors IP67 – Reliable Multi-Pole for Industrial Applications
Order the durable IP67 circular connectors online today to ensure weather-resistant, reliable connections in your industrial automation, medical, or security systems. These versatile connectors feature bayonet coupling for fast, secure attachment, available in multiple configurations with 2, 3, 4, 5, and 7 poles. Ideal for outdoor and harsh environments, they provide excellent sealing and durability. Purchase now for quick deployment in your projects, ensuring robust performance, ease of use, and long-lasting connection quality in any application.
Buy Multicomp IP67 connectors now and experience unmatched weatherproof reliability and flexible configurations for industrial Automation and outdoor solutions.
