MULTICOMP-PRO MP002647 Industrial Circular Connectors

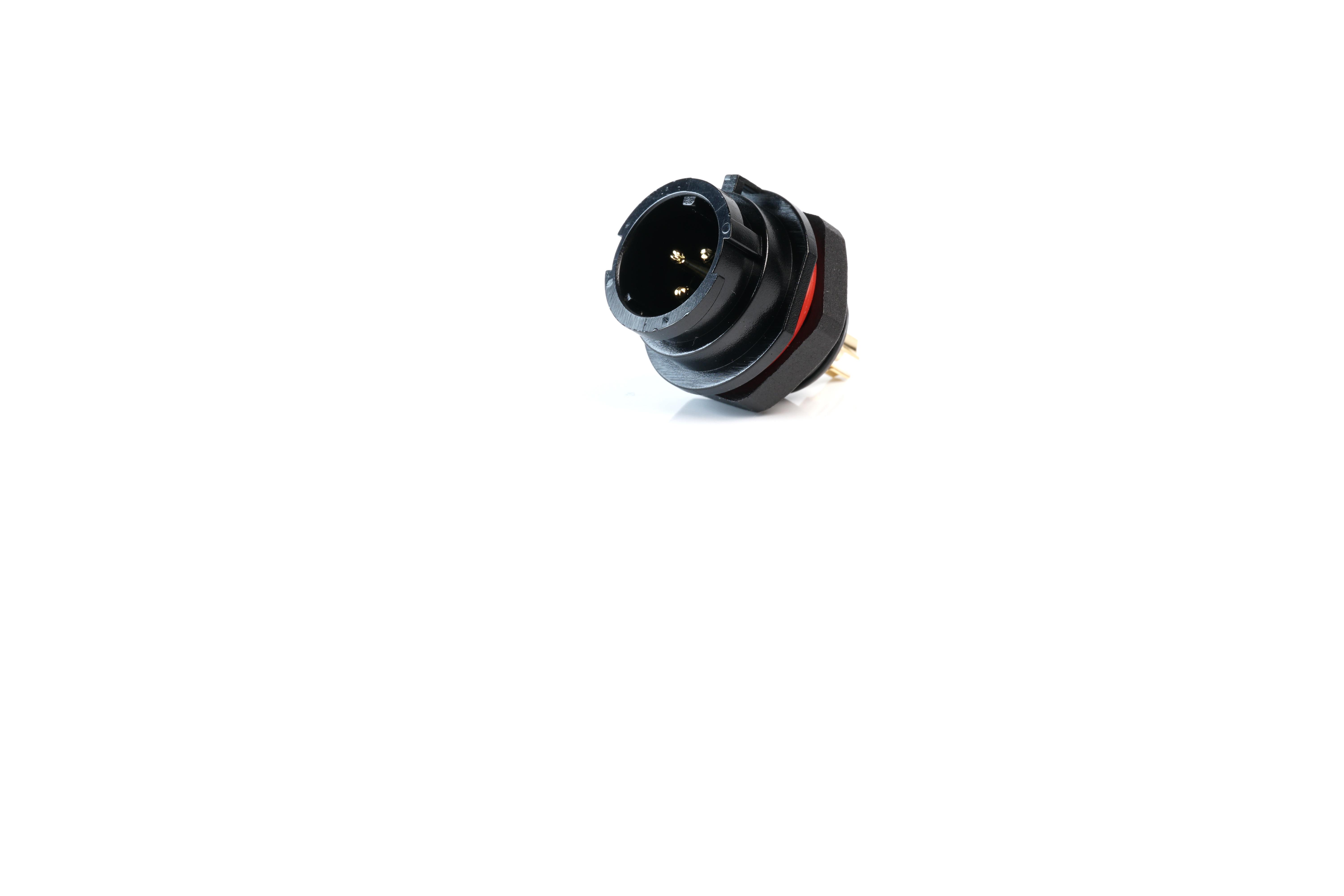

The MP-T13 IP67 series offers rugged, weatherproof connectors designed with bayonet couplings for quick, secure connections in various industrial applications. Available in panel, cable, and inline configurations, these durable connectors support 2, 3, 4, 5, and 7 poles with solder termination, making them ideal for automation, security, medical devices, and outdoor equipment. Rated IP67 for dust and water resistance, they withstand harsh environments. The series includes a weatherproof dust cap and fits standard 13mm panel cutouts, ensuring reliable, long-lasting performance in demanding conditions.
MULTICOMP-PRO MP002647 Industrial Circular Connectors Specifications:
- IP Rating: IP67
- Coupling Type: Bayonet
- Shell Material: Nylon66 (V-0 fire resistance)
- Insert Material: PPS (Max. Temperature 260°C)
- Contact Material: Brass with gold plating
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Rated Current: 13A (2P), 5A (3P and 4P), 5A (5P), 5A (7P)
- Rated Voltage: 250V (2P, 3P), 200V (4P), 180V (5P), 125V (7P)
- Test Voltage: 1500V (1 min.) for proper insulation
- Contact Resistance: 2.5mΩ (2P, 3P), 5mΩ (4P, 5P, 7P)
- Wire Size: 0.75/18 AWG (0.75 mm²)
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500 times
- Dimensions: Suitable for 13mm panel cutouts, fits cable diameters 4-6.5mm
- Dust Cap: Included for receptacles
Buy the Multicomp IP67—Reliable Circular Connectors for Industrial Applications
Discover Multicomp IP67 circular connectors, ideal for outdoor and industrial use. With quick bayonet coupling, solder termination, and robust nylon66 shells, these connectors ensure long-lasting, reliable connections. Compatible with various configurations, they are perfect for automation, security, medical devices, and harsh environments. Rated IP67 for dust and water resistance, they protect your critical connections from the elements. Purchase the series online today to ensure durable, easy-to-install connectivity solutions for your projects.
Get Multicomp IP67 connectors today—designed for reliable, weatherproof connections in demanding industrial environments.
