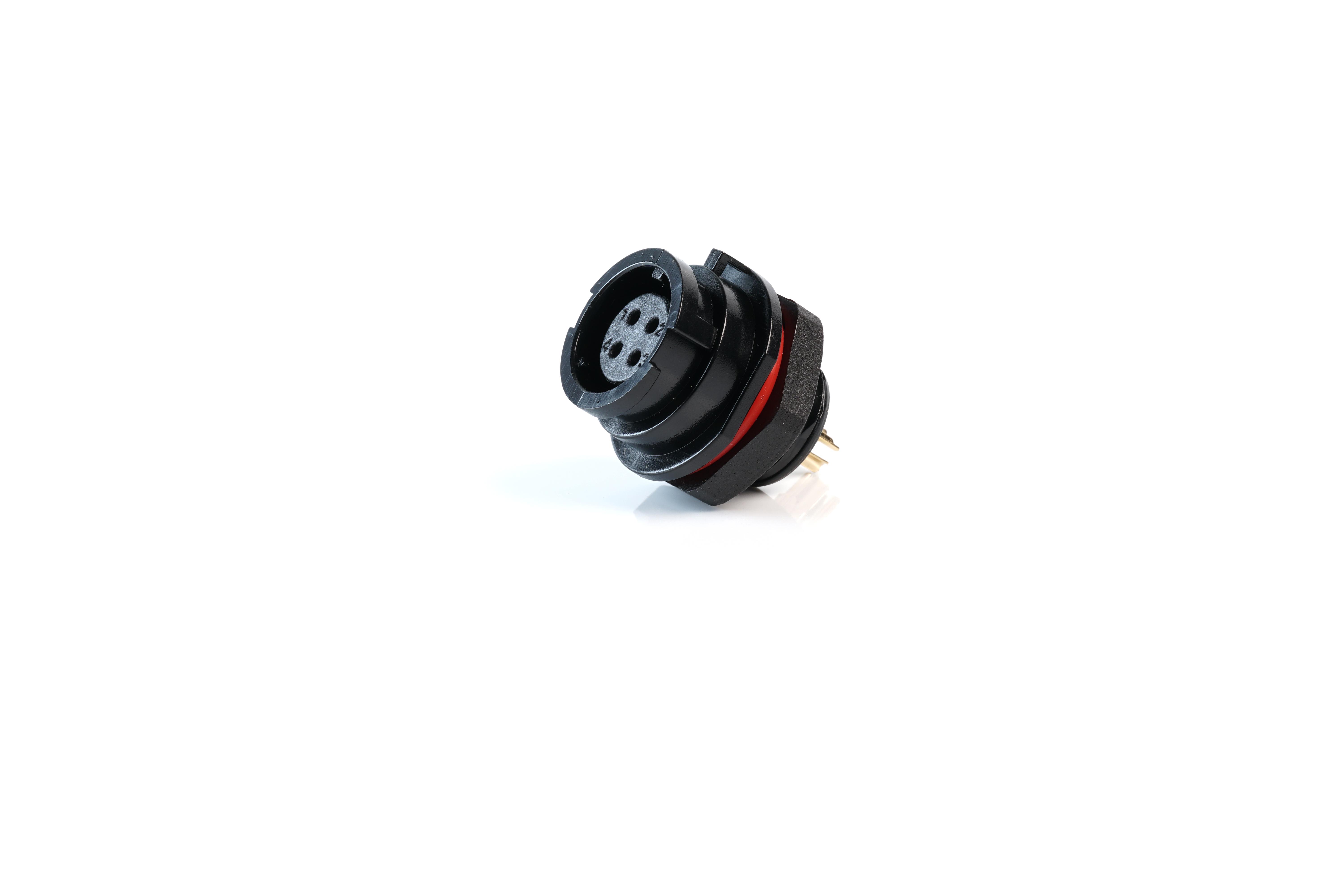

MULTICOMP PRO MP002653 IP67 Circular Connector
The MP-T13 IP67 series features a durable range of connectors with bayonet couplings for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, allowing for cable-to-panel or cable-to-cable connections. Rated IP67 for weather resistance, they are suitable for both indoor and outdoor applications. The series fits a 13mm panel cut-out, utilizes solder termination, and offers versions with 2, 3, 4, 5, and 7 poles. An IP67 cap is also available for additional protection. Ideal for automation, medical, security, test and measurement, and industrial automation sectors.
MULTICOMP PRO MP002653 IP67 Circular Connector Specifications:
- IP67 weather resistance for outdoor and indoor applications
- Rated voltage: 250V (AC)
- Rated current: 13A for 2-pole, 5A for 3-7 poles
- Contact materials: Brass with gold plating
- Termination: Solder
- Shell material: Nylon66, V-0 fire resistance
- Insert material: PPS, max temperature 260°C
- Coupling: Bayonet
- Dimensions: fit 13mm panel cutout, cable diameter range 4mm to 6.5mm
- Mating cycle: 500 times
- Temperature range: -40°C to +80°C
- Insulation resistance: 2000 MQ
- Test voltage: 1500V (1 min)
- Number of contacts: 2, 3, 4, 5, 7
- Contact diameter: 1.6mm (2-pole), 1mm (3-7 poles)
Buy the Buy Multicomp IP67 Connector Part Number MP002653 Online
Purchase the IP67 circular connectors from Multicomp online to ensure durable, weatherproof, and quick-connect solutions for industrial automation, security systems, medical equipment, and testing applications. With rated voltage of 250V and current capacity of 13A, these connectors feature brass contacts with gold plating for reliable conductivity and solder termination for secure wiring. Their nylon66 shell construction supports a temperature range of -40°C to +80°C, and the IP67 rating guarantees protection against dust and water ingress. Available in multiple configurations with 2, 3, 4, 5, and 7 poles, these connectors are essential for robust, outdoor-rated connections in demanding environments.
Buy Multicomp IP67 Connector MP002653 now and enjoy reliable weatherproof connections suitable for outdoor and industrial environments, ensuring safe, secure, and quick attachment and disconnection of devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002653?
You can click on the BUY or RFQ button to purchase MP002653 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002653?
You can download the MP002653 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002653?
MULTICOMP PRO
