MULTICOMP PRO MP002664 Industrial Circular Connectors

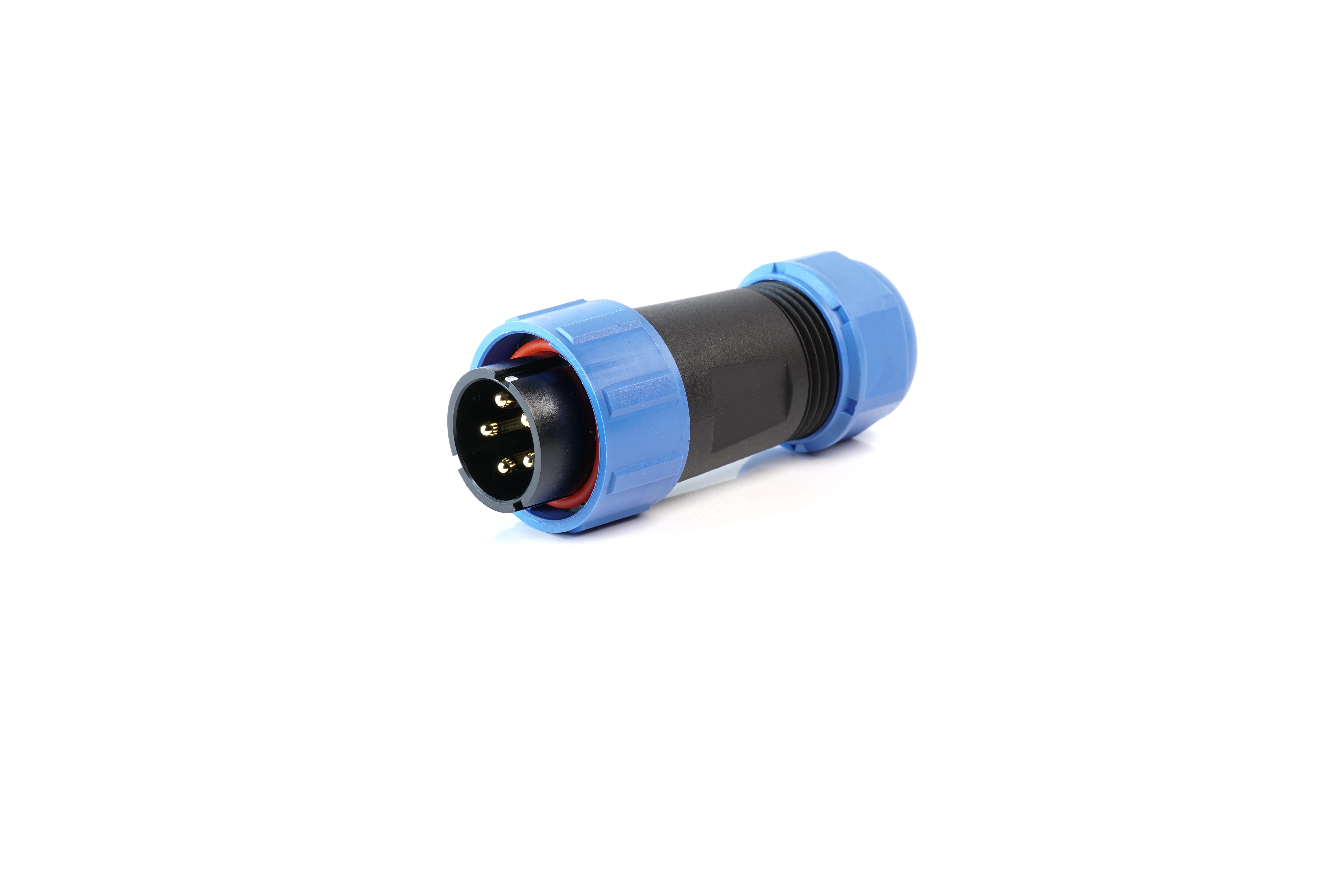

The MP-T21 IP67 series offers durable, weather-sealed connectors suitable for harsh environments and outdoor use. Featuring bayonet couplings for quick connection and disconnection, these connectors come in panel, cable, and inline mount configurations. They support solder and screw terminations, accommodate multiple poles from 2 to 12, and fit a 21mm cut-out. Designed with nylon66 shells and gold-plated brass contacts, they ensure reliable electrical performance and corrosion resistance. Ideal for automation, process control, medical devices, security, and industrial automation applications, these connectors provide robust, IP67-rated protection and versatile installation options.
MULTICOMP PRO MP002664 Industrial Circular Connectors Specifications:
- IP67 rating for dust and water resistance
- Bayonet coupling for quick connection
- Material: Nylon66 shell, brass contacts with gold plating
- Insert Material: PPS, Max. Temperature 260°C
- Temperature Range: -40°C to +80°C
- Termination: Solder and Screw options
- Contact Diameter: 1mm to 3mm
- Rated Voltage: 400V to 500V AC
- Rated Current: 5A to 30A
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Mating Cycle: 500
- Compatible with cable diameters up to 12mm
- Insert Housing Shell: Available in various configurations
- Certification: RoHS compliant
- Supports cable and panel mounting options
- Sealed rubber and oring provides environmental protection
Buy the multicomp:ro – Reliable Industrial Connectors for Automation and Outdoor Use
Purchase multicomp:ro IP67 industrial circular connectors online easily. These versatile, weather-resistant connectors with bayonet coupling ensure reliable connections for automation, medical, security, and industrial applications. Available with solder and screw terminations, supporting multiple poles from 2 to 12. They fit 21mm cut-outs, are made from durable nylon66 shells, and feature gold-plated brass contacts for corrosion resistance. Order now for fast delivery and enhance your industrial equipment with high-quality, IP67-rated connectors designed for harsh environments.
Get multicomp:ro IP67 connectors today—built for durability, quick connectivity, and versatile mounting options in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002664?
You can click on the BUY or RFQ button to purchase MP002664 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002664?
You can download the MP002664 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002664?
MULTICOMP PRO
