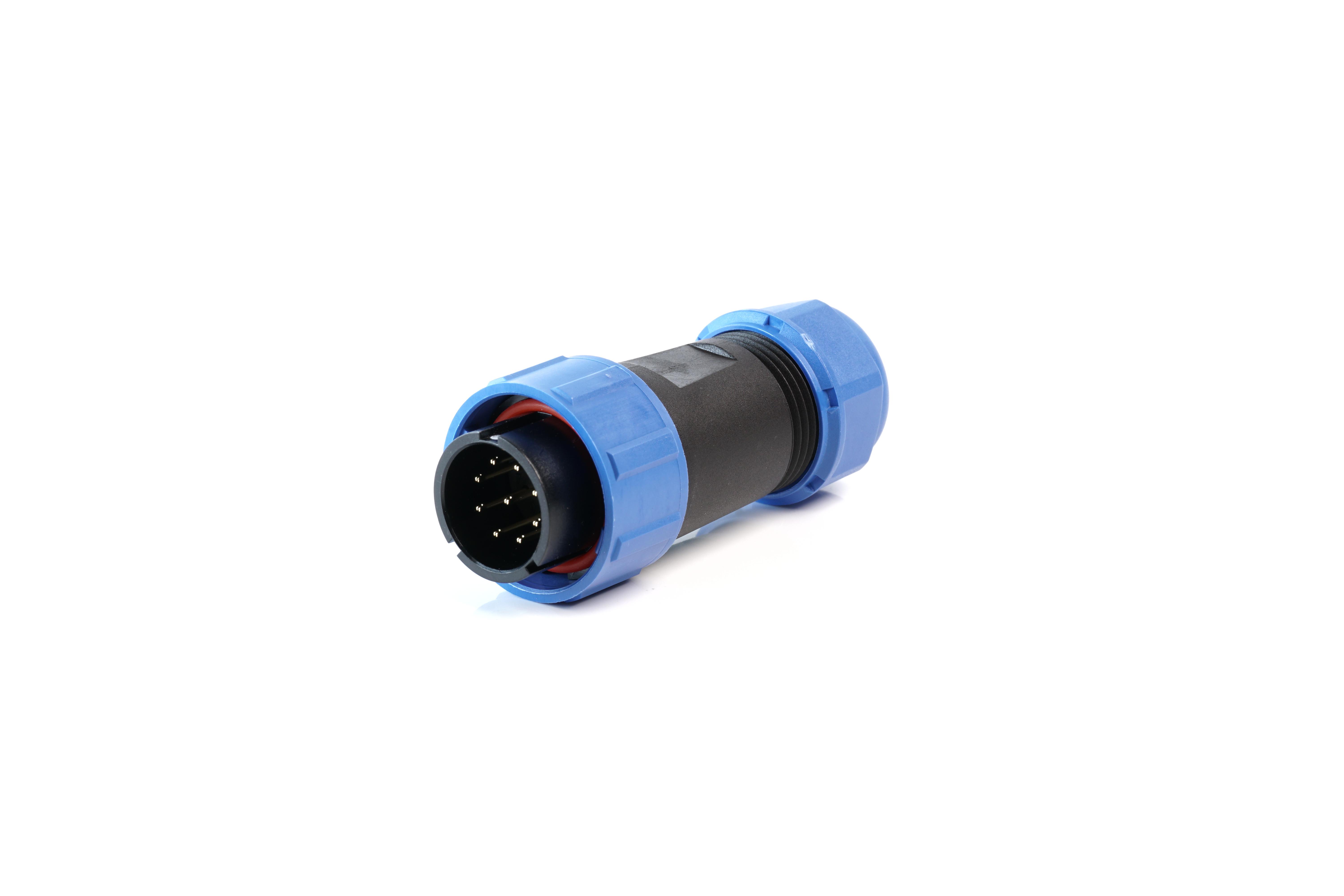

MULTICOMP PRO MP002666 IP67 Circular Connectors
The MP-T21 IP67 series features robust connectors with bayonet couplings for quick attachment, suitable for indoor and outdoor use. Available in panel, cable, and inline mounts, these weatherproof connectors meet IP67 standards, ensuring protection against dust and water ingress. They support solder and screw terminations with multiple pole counts from 2 to 12, making them versatile for various applications. Designed for durable and reliable electrical connections, these connectors are ideal for demanding environments, providing ease of installation and secure connections with a panel cut-out size of 21mm.
MULTICOMP PRO MP002666 IP67 Circular Connectors Specifications:
- Material and Specifications: Shell material Nylon66 with V-0 fire resistance, insert material PPS up to 260°C, brass contacts with gold plating, IP67 rated sealing, and corrosion-resistant construction.
- Physical Dimensions: Fits a 21mm panel cut-out, compatible with cable outer diameter up to 12mm, and includes variants with multiple contacts (2, 3, 4, 5, 7, 9, 12).
- Electrical Ratings: Rated current 5A to 30A depending on contacts; voltage ratings range from 400V to 500V AC; test voltage up to 1500V AC for 1 min.; contact resistance below 5 mΩ; insulation resistance is 2000 MΩ.
- Operational Conditions: Designed for a temperature range of -40°C to +80°C; withstands 500 mating cycles; IP67 rated for dust and water protection, suitable for outdoor environments.
- Termination Options: Solder and screw terminations with wire sizes from 0.75/18 AWG to 1.5/15 AWG; includes optional IP67-rated protective caps for added sealing and durability.
Buy the Multicomp Series IP67 Connectors: MP002666
Secure your industrial and outdoor projects with the IP67-rated circular connectors from the Multicomp Series. Featuring bayonet coupling, multiple mounting options, and range of contact configurations, these durable connectors provide reliable, waterproof, and dustproof connections. Easy to install with solder or screw terminations and suitable for a broad range of environments, they ensure long-lasting performance. Available with high-current ratings and corrosion-resistant materials, order now online and upgrade your connectivity solutions with confidence.
Order your Multicomp series IP67 connectors, including MP002666, today and ensure reliable, weatherproof connections for outdoor and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002666?
You can click on the BUY or RFQ button to purchase MP002666 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002666?
You can download the MP002666 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002666?
MULTICOMP PRO
