MULTICOMP PRO MP002667 Industrial Connectors
The MP-T21 IP67 series features durable, weather-sealed connectors with bayonet coupling for quick, secure connections suitable for outdoor and indoor use. Available in panel, cable, and inline configurations, these connectors support cable-to-panel and cable-to-cable connections with a number of pole options from 2 to 12. They offer solder and screw termination methods, ensuring versatility in wiring. Designed with IP67 protection and an accompanying dust cap, these connectors are ideal for automation, industrial, medical, security, and measurement applications. Their robust build guarantees reliability in harsh environmental conditions.
MULTICOMP PRO MP002667 Industrial Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Termination: Solder and Screw
- Rated Current: 5-30A depending on size
- Rated Voltage: up to 500V AC
- Test Voltage: 1500V AC for 1 min
- Contact Resistance: 1 mΩ to 5 mΩ depending on contact type
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- External Diameter Range: Up to 12mm
- Connector Series: IP67, weather sealing
- Compatibility: Suitable for automation, control systems, medical, security, measurement
- In-line, panel, and cable mount options facilitate flexible installations
- Included Dust Cap for additional protection

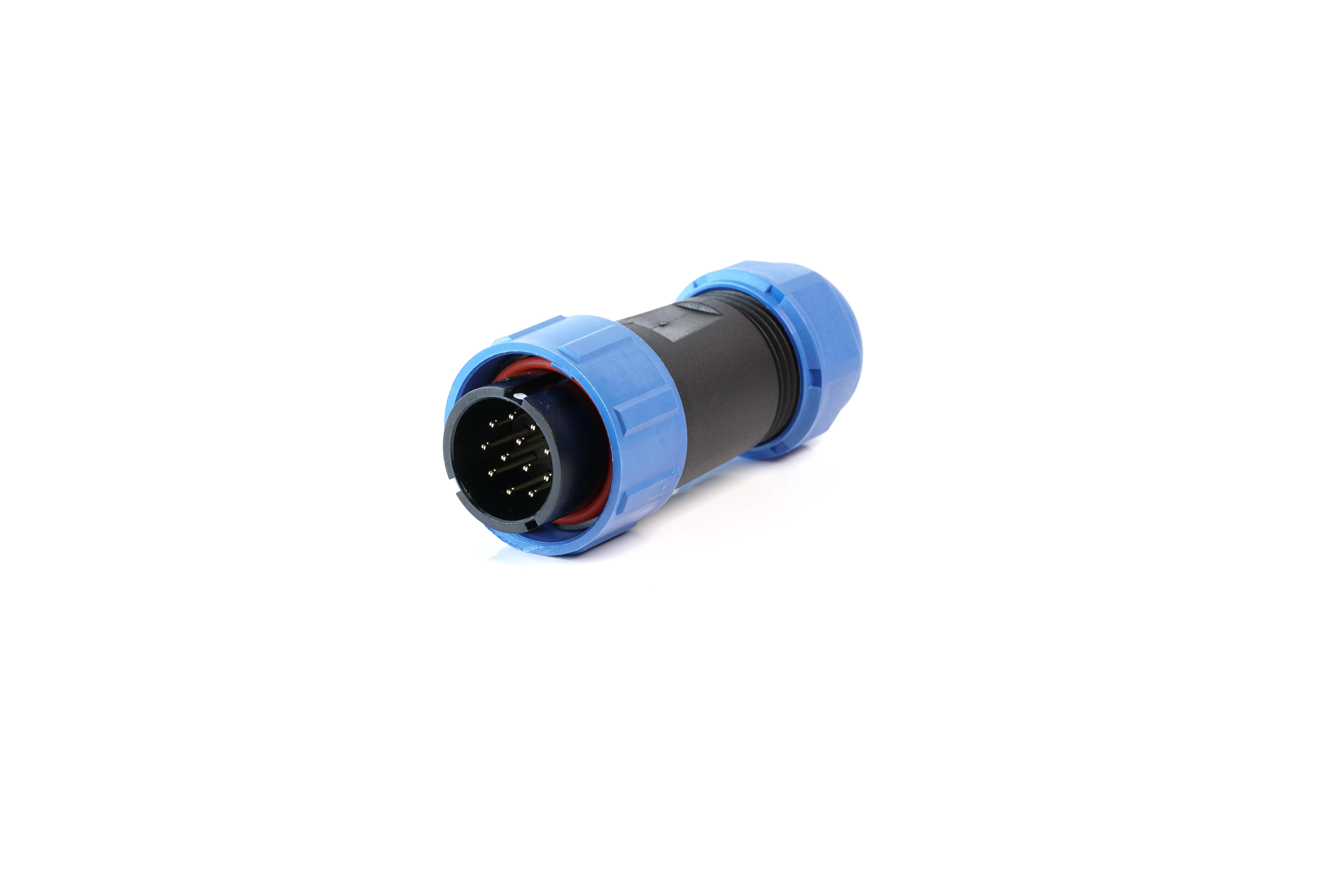

Buy the Multicomp Series IP67 Connector: MP002667
Purchase the Multicomp Series IP67 connector MP002667 online to enjoy quick, secure connections with weather resistance. Designed for indoor and outdoor use, these connectors support multiple configurations, including panel, cable, and inline mountings, with solder and screw termination options. They are perfect for automation, industrial control, medical devices, security systems, and measurement applications. Featuring IP67 protection, robust materials, and easy installation, buying online ensures fast delivery and access to technical support for your rugged connection needs.
Buy Multicomp IP67 connector MP002667 now and experience unmatched durability and reliable weather-resistant performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002667?
You can click on the BUY or RFQ button to purchase MP002667 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002667?
You can download the MP002667 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002667?
MULTICOMP PRO
