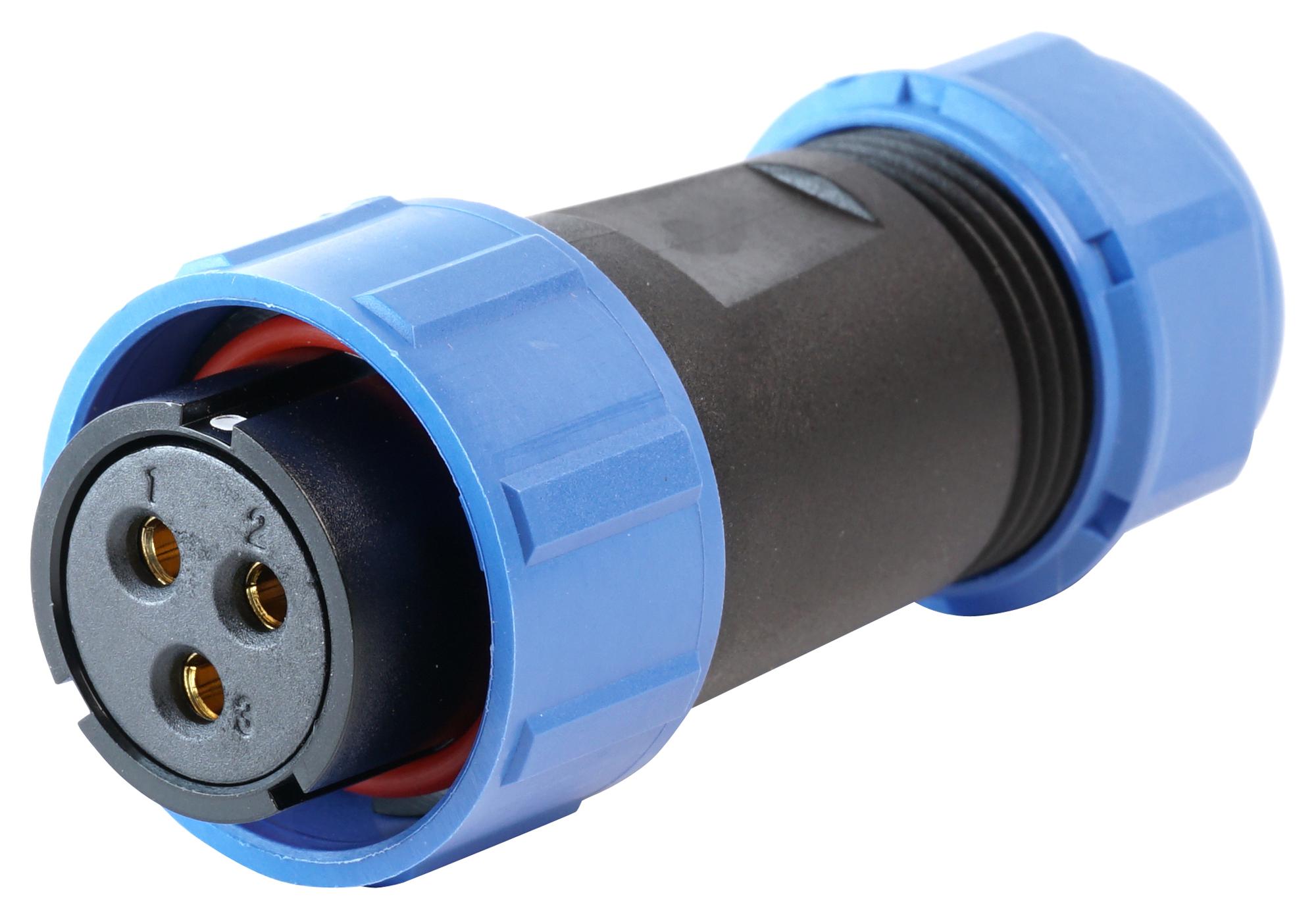

MULTICOMP-PRO MP002671 industrial connectors
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, making them versatile for cable-to-panel or cable-to-cable setups. Weather-rated with IP67 sealing, they are suitable for indoor and outdoor industrial applications. Key features include a 21mm mounting cut-out, solder or screw terminations, 2 to 12 poles, and a protective cap option. Ideal for automation, process control, medical, security, and measurement systems, these robust connectors ensure reliable, vibration-resistant connections in harsh environments.
MULTICOMP-PRO MP002671 industrial connectors Specifications:
- Material and Construction: Nylon66 shell, insert made of PPS with max. temperature 260°C, brass contacts with gold plating
- Sealing: IP67 rating ensures protection against dust and water ingress
- Coupling Type: Bayonet coupling for quick and secure connection
- Configuration Options: Panel mount, cable mount, in-line cable mount
- Number of Poles: 2, 3, 4, 5, 7, 9, 12 poles
- Termination: Solder or screw type options
- Operating Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ for solder contacts, 2.5–5 mΩ for screw contacts
- Rated Current: up to 30A depending on contact size
- Rated Voltage: up to 500V AC
- Mating Cycles: 500
- Cable Diameter Range: Up to 12mm
- Ingress Protection: IP67 for weather resistance
- Additional: IP67 protective dust cap available, 21mm mounting cut-out, rubber sealing rings
Buy the Multicomp PRO MP002671 – Reliable Industrial Connectors for Harsh Environments
Secure your industrial projects with the robust and weather-resistant MP002671 IP67 connectors. Designed for quick bayonet coupling, these connectors provide reliable, vibration-resistant connections suitable for outdoor and harsh environments. Available in multiple configurations with solder or screw terminations, they support a wide range of applications including automation, medical devices, security systems, and more. With a durable nylon shell, brass contacts, and IP67 sealing, these connectors ensure long-lasting performance. Purchase online now to guarantee dependable connectivity for your critical systems.
Order your Multicomp PRO MP002671 IP67 connectors today and secure reliable, weather-proof connections for your industrial automation projects.
