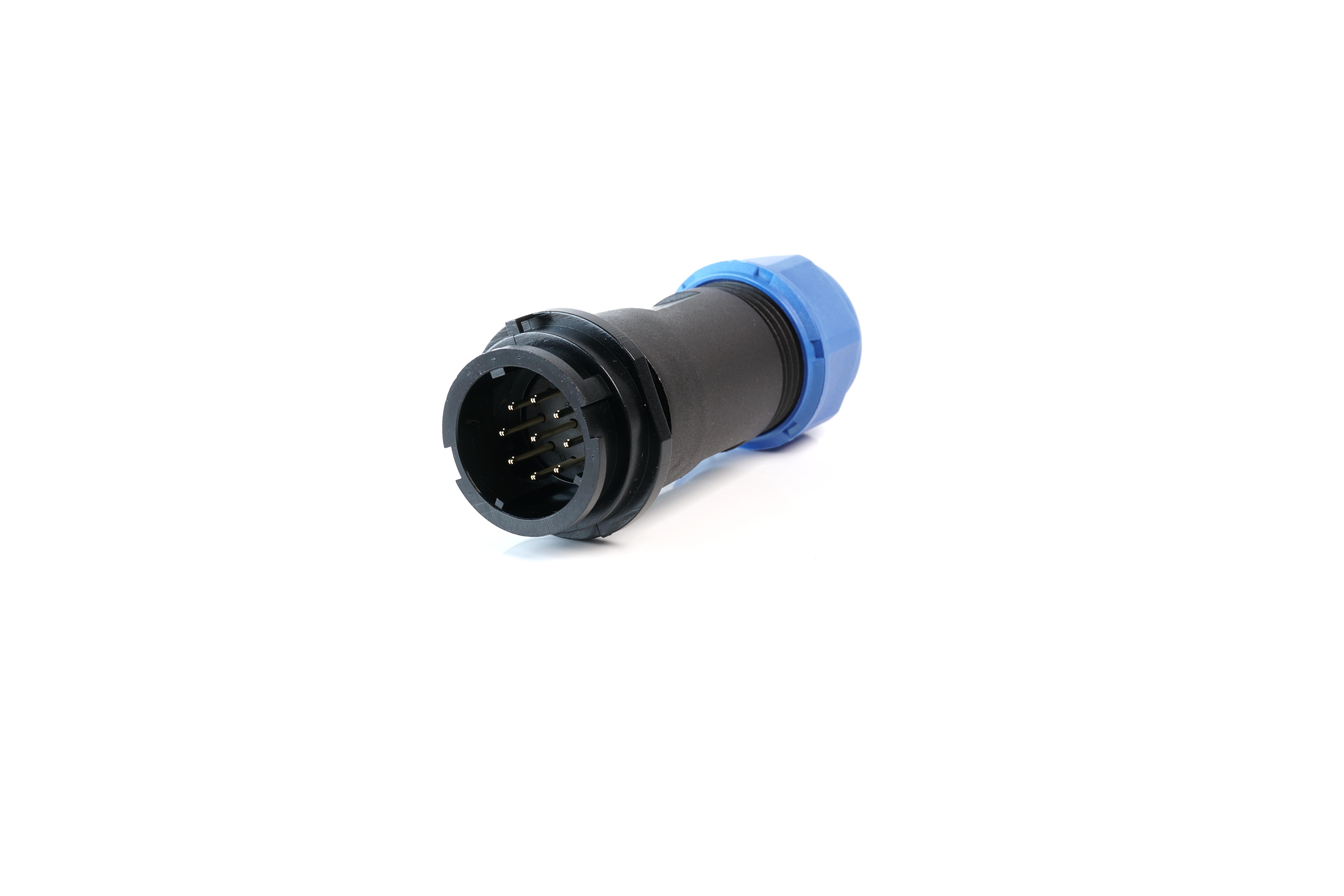

MULTICOMP PRO MP002688 IP67 Connectors
The MP-T21 IP67 series connectors are rugged, weatherproof devices with bayonet coupling for quick connections. Designed for indoor and outdoor use, these connectors feature a 21mm panel cut-out, offering cable, inline, and panel mount options. They support solder and screw terminations and are rated IP67 for dust and water resistance. Available in configurations from 2 to 12 poles, they include optional IP67-rated dust caps for enhanced protection, making them ideal for demanding environments requiring reliable sealing and easy installation.
MULTICOMP PRO MP002688 IP67 Connectors Specifications:
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- IP Rating: IP67, dust and waterproof
- Terminations: Solder and screw options
- Operating Temperature: -40°C to +80°C
- Rated Current: Up to 30A depending on configuration
- Rated Voltage: 500V AC
- Insertion/Extraction Cycles: 500
- Contact Diameter: 1mm to 3mm depending on pole count
- Dimensions: Supports 21mm panel cut-out, suitable for cable diameter up to 12mm
- Fire Resistance: V-0 rated
- Contact Resistance: 1mΩ to 5mΩ depending on contact type
- Maximum Temperature: 260°C for insert material
- RoHS Compliant
Buy the Multicomp Series T21 IP67 Connectors: MP002688
Enhance your projects with the durable waterproof IP67 connectors from the T21 series. Featuring bayonet coupling for quick assembly, available in multiple configurations, and suitable for indoor and outdoor use. These connectors support solder and screw terminations, with optional dust caps for added protection. Constructed from nylon and brass with gold plating, they provide excellent weather resistance, high current capacity, and long cycle life. Reliable, easy to install, and RoHS compliant, order online now for fast delivery and secure connections.
Order your Multicomp Series T21 IP67 connector today and ensure reliable, weatherproof connections for your outdoor or harsh environment projects.
