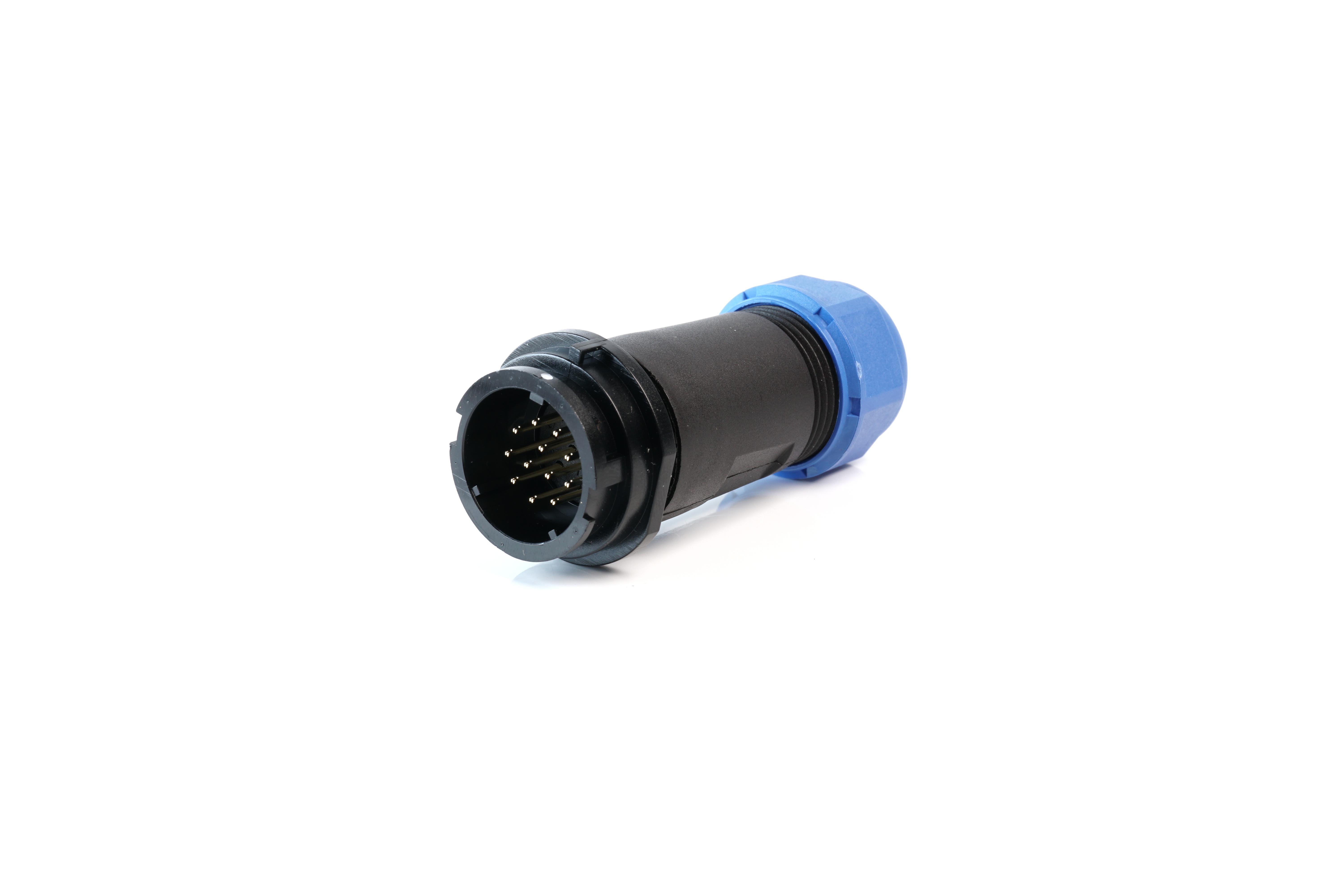

MULTICOMP PRO MP002689 IP67 Circular Connector
The MP-T21 IP67 series offers rugged, weatherproof connectors with bayonet coupling for quick, secure connections in various configurations. Suitable for indoor and outdoor use, these connectors are designed for durability and ease of installation. Available in panel, cable, and inline mounts, they support multiple pole counts from 2 to 12, with options for solder or screw terminations. They feature high IP67 protection, are compliant with RoHS standards, and include accessories like dust caps. Ideal for automation, industrial, medical, security, and measurement applications, ensuring reliable electrical connectivity in harsh environments.
MULTICOMP PRO MP002689 IP67 Circular Connector Specifications:
- IP rating: IP67
- Coupling mechanism: Bayonet
- Material: Nylon66 shell, PPS insert, Brass contacts with gold plating
- Fire Resistance: V-0
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1 to 3 mm
- Rated Voltage: up to 500 V AC
- Rated Current: up to 30 A
- Mating Cycle: 500
- Termination: Solder or Screw
- Wire Size for solder: 0.75/18 mm²/AWG
- Wire Size for screw: 1.5/15 mm²/AWG
- Maximum cable outer diameter: 12 mm
- Insert material: PPS, Max temperature 260°C
- Contact resistance: 1 mΩ
- Insulation Resistance: 2000 MΩ
- RoHS compliant
- Additional accessories: Dust caps available
- Suitable for panel, cable, and inline mounting in industrial, automation, medical, and measurement fields
Buy the Multicomp Series IP67 Connector: MP002689
Enhance your industrial and outdoor setups with our IP67 circular connectors featuring bayonet coupling for quick installation. They support multiple pole configurations, with options for solder or screw terminations, ideal for automation, process control, medical, security, and measurement industries. Made with durable nylon and brass contacts with gold plating, these connectors provide high IP67 protection, reliable performance, and easy mounting options. Purchase online now for dependable, weatherproof electrical connections that withstand harsh environments and meet your project requirements efficiently.
Order your multicomp series IP67 connector MP002689 today and ensure reliable, weatherproof connections for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002689?
You can click on the BUY or RFQ button to purchase MP002689 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002689?
You can download the MP002689 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002689?
MULTICOMP PRO
