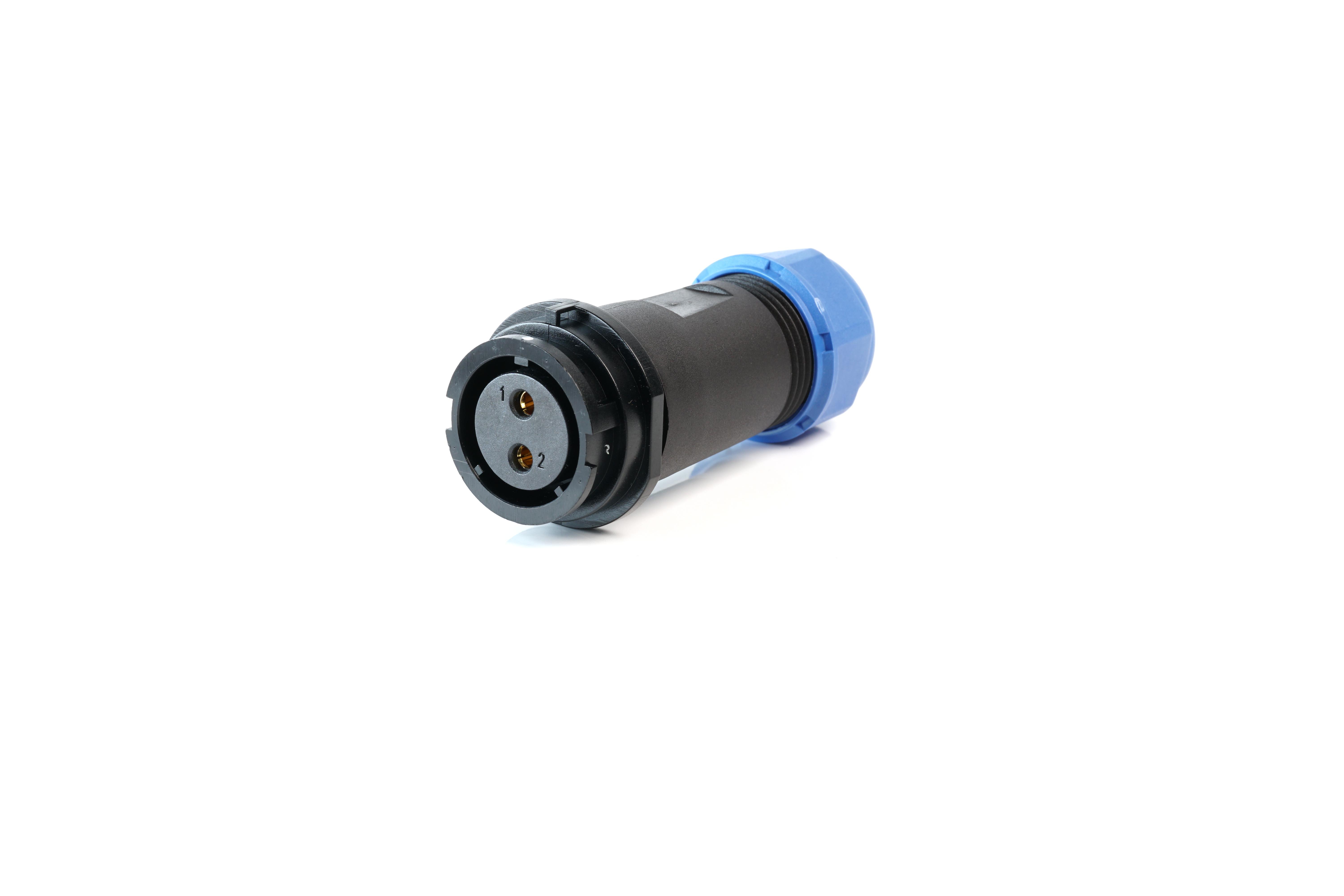

MULTICOMP PRO MP002691 Weatherproof Connectors
The MP-T21 IP67 series connectors are rugged, weatherproof, bayonet-coupled solutions designed for reliable indoor and outdoor use. Featuring durable nylon66 shells, PPS insert material rated up to 260°C, and brass contacts with gold plating, these connectors ensure excellent conductivity and corrosion resistance. They support various configurations, including cable mount, inline, and panel mount, with solder and screw termination options for wires up to 1.5mm² or 18 AWG. Compatible with IP67 sealing, they withstand harsh environments, making them ideal for automation, industrial, and security applications. Capable of 500 mating cycles, operating from -40°C to +80°C.
MULTICOMP PRO MP002691 Weatherproof Connectors Specifications:
- Material: Nylon66 shell, PPS insert material rated up to 260°C
- Shell Material: Nylon66 with V-0 fire resistance rating
- Contact Material: Brass with gold plating
- IP Rating: IP67, weatherproof and sealing
- Coupling: Bayonet mechanism for quick connection
- Terminations: Solder and screw options
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12 pole configurations
- Rated Current: 5A to 30A depending on configuration
- Rated Voltage: 400V to 500V
- Test Voltage: 1200V to 1500V for 1 minute
- Contact Resistance: 1 to 5 mΩ
- Temperature Range: -40°C to +80°C
- Mating Cycles: Up to 500
- Cable Compatibility: Outer Diameter up to 12mm, wire sizes 0.75/18 AWG to 1.5/15 mm²
- Applications: Automation, industrial control, security, test and measurement
Buy the Buy multicomp:ro IP67 Connectors Part Number MP002691 Online
Order the multicomp:ro MP002691 connectors online today to ensure reliable, waterproof, and quick connections suitable for indoor and outdoor industrial, automation, and security applications. These IP67-rated connectors feature robust nylon66 shells, brass contacts with gold plating, and both solder and screw terminations. Designed for easy mating and disconnection with bayonet coupling, they support multiple configurations including cable, inline, and panel mount options. With a high mating cycle capability of 500 cycles and a temperature range from -40°C to +80°C, they are perfect for rugged environments.
Buy multicomp:ro MP002691 now and experience unmatched reliability and secure, weatherproof connections for your industrial and outdoor projects.
