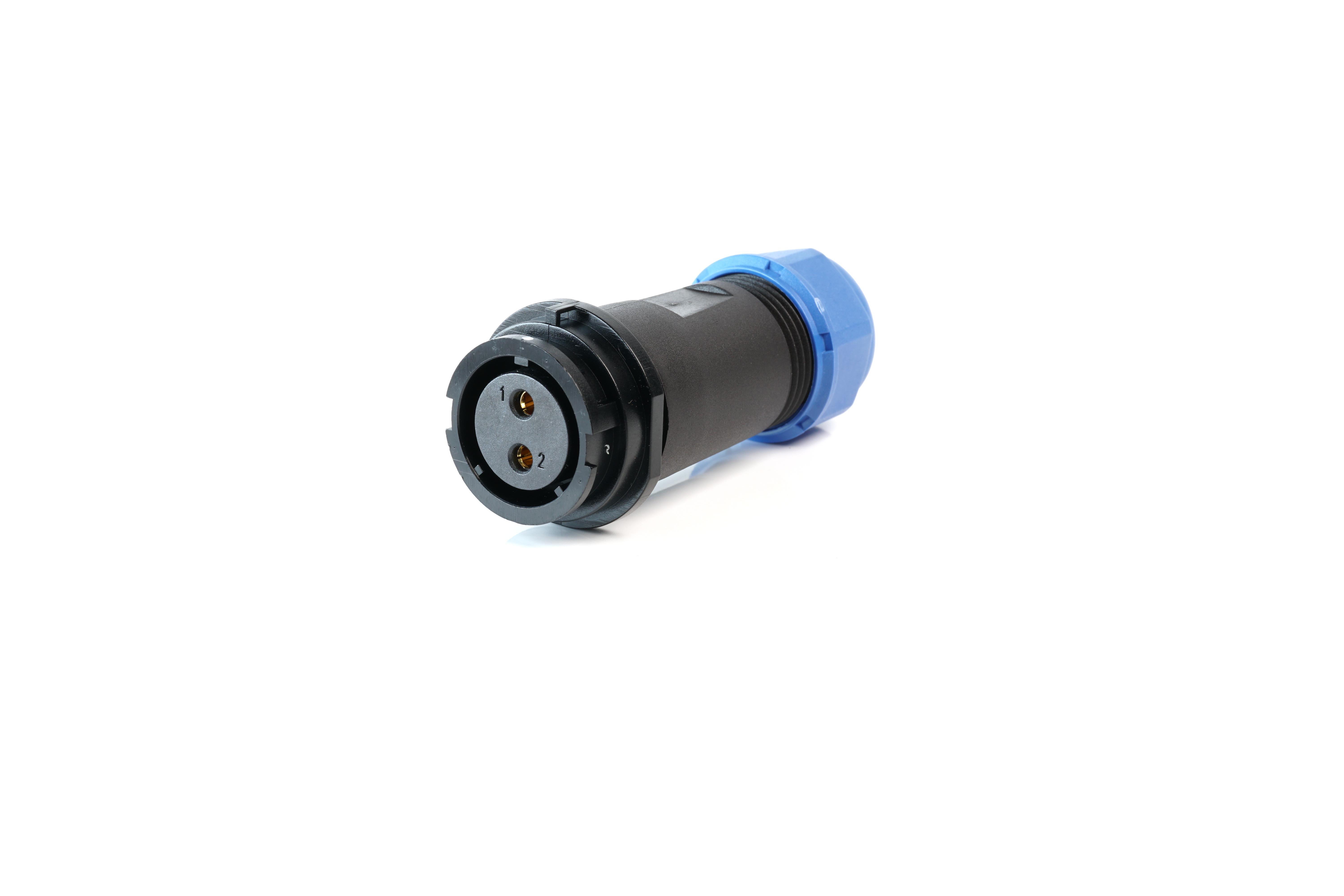

MULTICOMP PRO MP002692 IP67 Connectors
The MP-T21 IP67 series is a durable line of connectors featuring bayonet couplings for quick and easy connection and disconnection. These connectors are available in panel mount, cable mount, and in-line cable mount configurations, allowing for versatile cable-to-panel or cable-to-cable connections. Designed with weather sealing to IP67 standards, they are suitable for both indoor and outdoor applications. Key features include compatibility with 21mm panel cut-outs, solder and screw termination options, and versions with 2, 3, 4, 5, 7, 9, and 12 poles. An IP67-rated cap is also available. Ideal for automation, medical devices, security, testing, and industrial processes.
MULTICOMP PRO MP002692 IP67 Connectors Specifications:
- Material: Nylon66 shell, insert made of PPS with max temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Size Compatibility: 21mm panel cut-out
- Termination: Solder or screw
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 5A to 30A depending on contact
- Rated Voltage: Up to 500V
- Test Voltage: 1500V 1 min.
- Contact Resistance: 1-5 mΩ
- Mating Cycles: 500
- Temperature Range: -40°C to +80°C
- Ingress Protection: IP67
- Additional: Rubber O-ring seal, weather-resistant design
Buy the Buy multicomp IP67 Series Connector Part Number MP002692 Online
Purchase multicomp IP67 series connectors MP002692 online for high-quality, weatherproof connections ideal for outdoor and industrial applications. Engineered with bayonet coupling for quick installation, these connectors support solder and screw terminations, with versions available in multiple pole configurations. Designed with durable materials like nylon66 and brass with gold plating, they ensure reliable electrical performance. Suitable for automation, medical devices, security systems, testing, and industrial controls, these IP67-rated connectors provide long-lasting durability, easy installation, and enhanced environmental protection. Buy now and streamline your connection needs with confidence.
Get multicomp IP67 connectors MP002692 today—built for outdoor durability and reliable performance in industrial automation and security systems.
