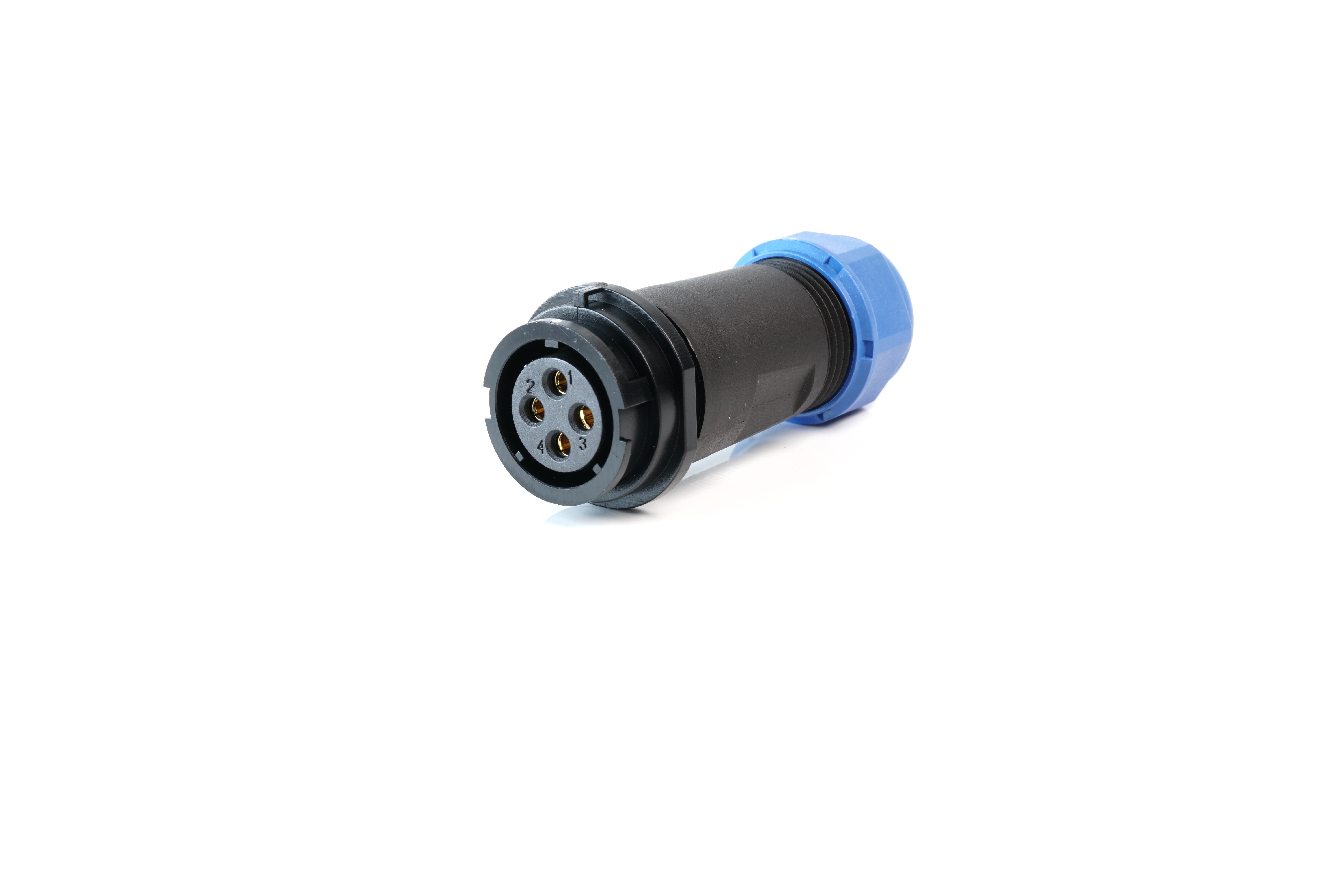

MULTICOMP PRO MP002694 Circular Connectors
The MP-T21 IP67 series offers durable connectors with bayonet couplings for quick, secure connections in indoor and outdoor settings. These versatile panel, cable, and in-line mount connectors support 2 to 12 pole configurations, with options for solder or screw termination and an included IP67-rated cap for sealing. Constructed from high-quality nylon66 and brass with gold plating, they meet IP67 weatherproof standards and operate within -40°C to +80°C temperature range. Suitable for automation, industrial, security, and test measurement applications, these connectors accommodate cable diameters up to 12mm with easy installation and reliable performance.
MULTICOMP PRO MP002694 Circular Connectors Specifications:
- Shell Material: Nylon66 with V-0 fire resistance
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling Type: Bayonet
- Mating Cycles: 500
- Temperature Range: -40°C to +80°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Contact Diameter: 1mm to 3mm depending on contact
- Rated Voltage: 400V to 500V
- Rated Current: 5A to 30A
- Test Voltage: 1200V to 1500V
- Termination: Solder or screw
- Cable Range: Max. 12mm outer diameter
Buy the Buy Multicomp IP67 Connector Part Number MP002694 Online
Purchase the versatile Multicomp series MP002694 IP67 Connector online today to ensure dependable, weatherproof connections for industrial automation, outdoor electrical systems, and security applications. Featuring a durable nylon66 shell, gold-plated brass contacts, and a quick bayonet coupling, this connector supports 2 to 12 poles with solder or screw terminations. The IP67-rated cap provides extra sealing. Easy to install and with a lifespan of 500 mating cycles, it is perfect for harsh environments and demanding professional use.
Order your Multicomp series MP002694 IP67 connector today and secure reliable, weatherproof connections for industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002694?
You can click on the BUY or RFQ button to purchase MP002694 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002694?
You can download the MP002694 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002694?
MULTICOMP PRO
