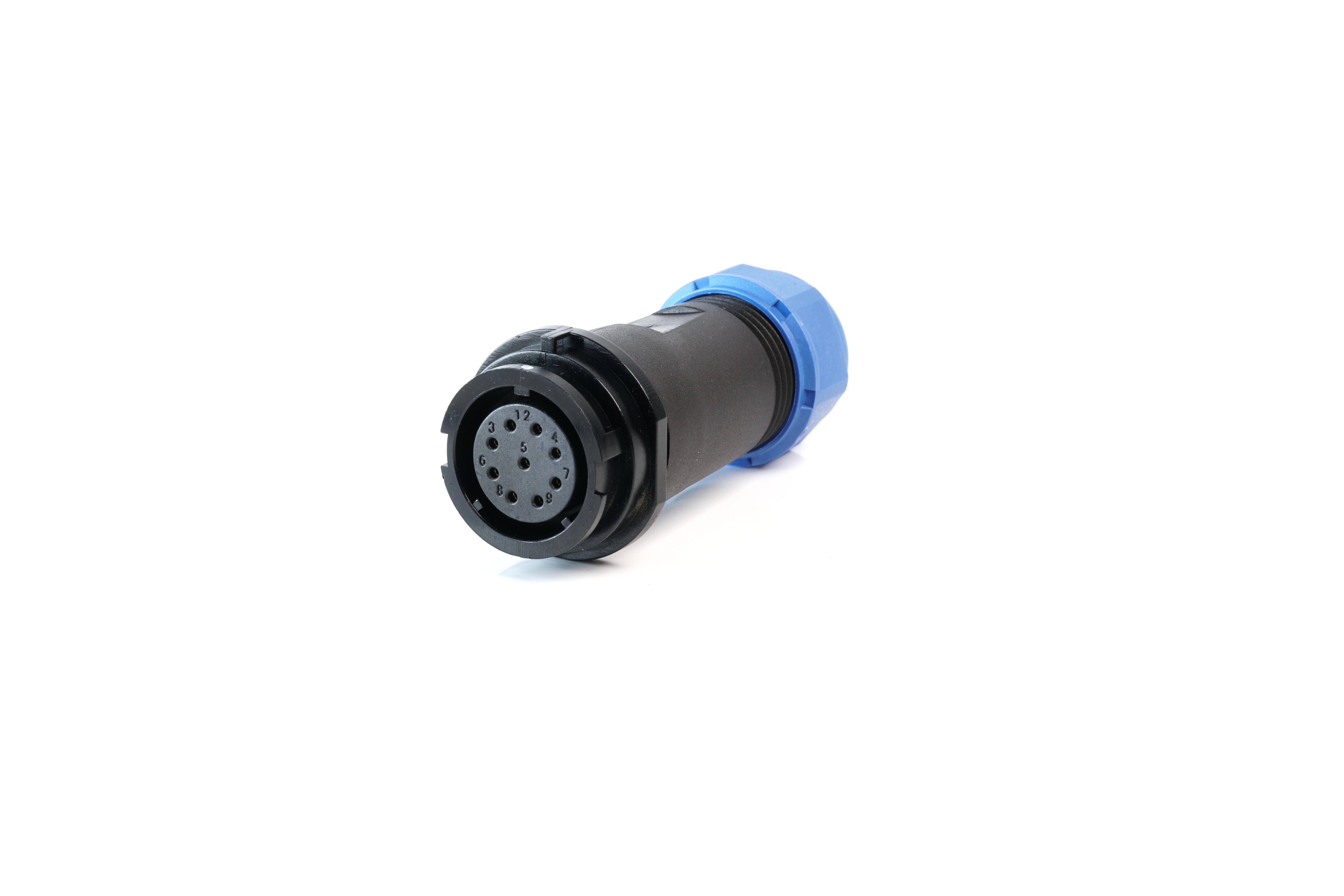

MULTICOMP PRO MP002699 Weatherproof Connectors
The MP-T21 IP67 series connectors are weatherproof, durable, and versatile, designed for quick bayonet coupling and reliable connection in indoor and outdoor applications. They feature panel, cable, and inline mounting options, accommodating various installation needs. Made with nylon66 shells and insert housings, and brass contacts with gold plating, they support solder and screw terminations for secure wiring. The series offers models with 2 to 12 poles, rated for currents up to 30A and voltages of 500V, with an IP67 rating and a mating cycle of 500, suitable for automation, control, medical, security, and industrial automation tasks.
MULTICOMP PRO MP002699 Weatherproof Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Mating Cycle: 500
- Temperature Range: -40°C to +80°C
- Contact Resistance: 1 mΩ
- Rated Current: 30A
- Rated Voltage: 500V AC
- Test Voltage: 1500V AC for 1 min.
- Physical Dimensions: Suitable for cable outer diameter up to 12mm, 21mm panel cutout
- Termination: Solder or Screw, Wire Size for solder: approximately 0.75 mm²/18 AWG, for screw: 1.5 mm²/15 AWG
Buy the Buy multicomp IP67 Series Connectors Part Number MP002699 Online
Order the multicomp IP67 series connectors MP002699 online today to ensure durable, weather-resistant connections for your automation, control, or industrial projects. These connectors feature quick bayonet coupling, multiple mounting options including panel, cable, and inline, and support solder or screw terminations. Manufactured with high-quality nylon66 shells and brass contacts with gold plating, they withstand harsh environments with an IP67 rating and are rated for 30A and 500V. Ensure secure, reliable connections in outdoor or industrial settings with ease and confidence by purchasing online now.
Buy multicomp IP67 connector series MP002699 now and enjoy reliable, weatherproof connections for industrial automation and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002699?
You can click on the BUY or RFQ button to purchase MP002699 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002699?
You can download the MP002699 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002699?
MULTICOMP PRO
