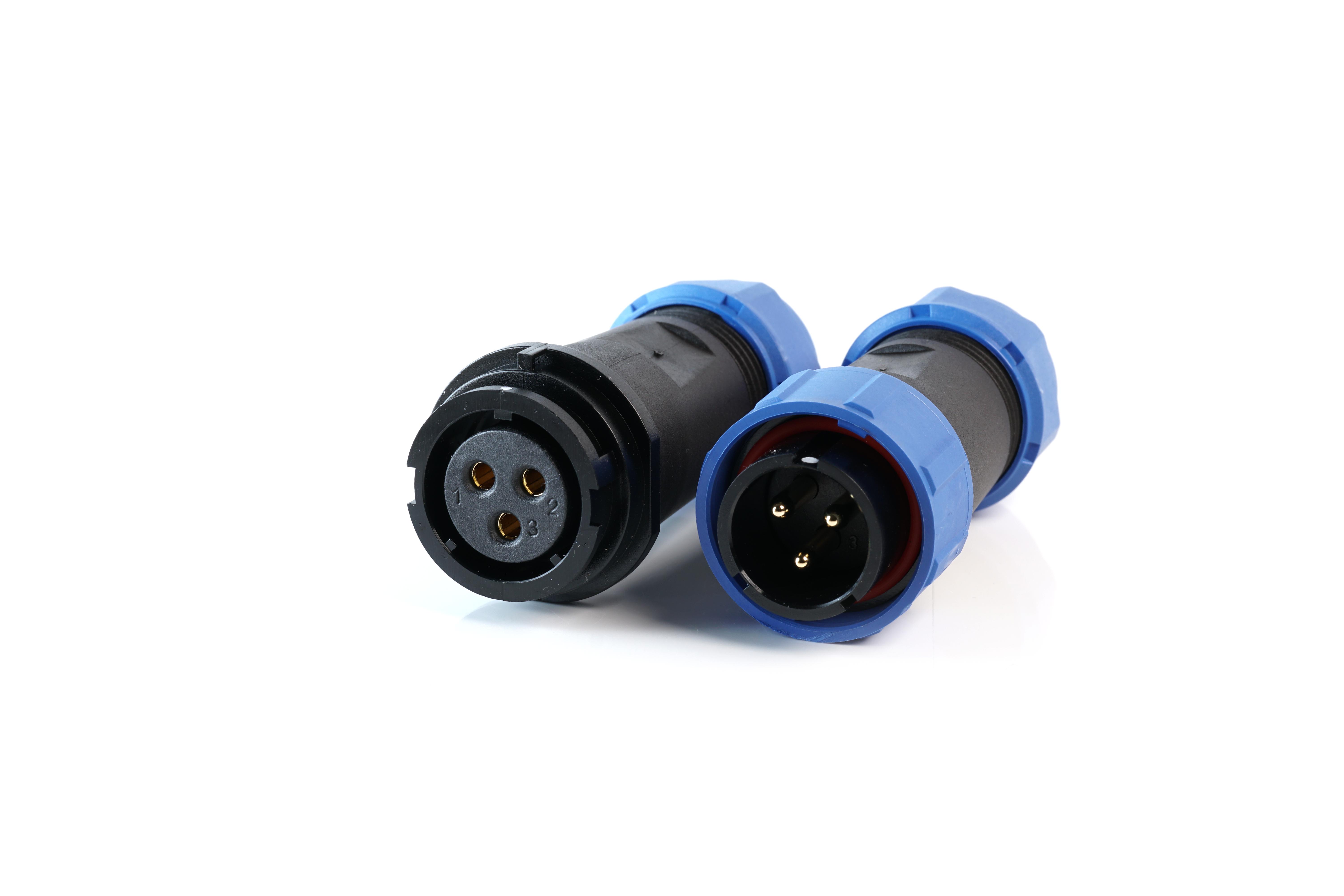

MULTICOMP-PRO MP002702 Industrial Circular Connectors
The IP67-rated MP-T21 series offers rugged connectors with bayonet coupling for quick, secure connections in outdoor and industrial environments. Available in panel, cable, and inline configurations, these connectors support cable-to-panel and cable-to-cable connections. They feature weatherproof sealing, with options for solder and screw terminations and configurations from 2 to 12 poles. Designed for durability, they include a protective dust cap. Ideal for automation, industrial, security, and medical applications, these UV-resistant, V-0 fire-resistant connectors ensure reliable performance in harsh conditions, supporting high current and voltage demands.
MULTICOMP-PRO MP002702 Industrial Circular Connectors Specifications:
- IP67 rated weatherproof connectors with bayonet coupling
- Available in panel, cable, and inline configurations
- Support for 2, 3, 4, 5, 7, 9, and 12 poles
- Termination options: solder and screw
- Materials: nylon66 shell, PPS insert, brass contacts with gold plating
- Maximum temperature: 260°C (PPS insert), -40°C to +80°C operating range
- Flammability: V-0 rated, fire-resistant
- Contact diameter: 1mm to 3mm, rated current up to 30A
- Test voltage: 1500V (1 min), contact resistance: 1mΩ
- Coupling: bayonet, sealing: rubber ring, dust cap available
- Mating cycle: 500, RoHS compliant
Buy the multicomp U0026 – Reliable Industrial Connectors for Harsh Environments
Purchase multicomp U0026 industrial circular connectors online for high durability in demanding environments. These IP67-rated connectors feature bayonet coupling, supporting multiple poles and termination options ideal for automation, medical, security, and industrial systems. Their weatherproof design ensures reliable connections in harsh outdoor conditions, and available accessories like dust caps enhance protection. Expert-designed for performance, easy installation, and long service life, choose these connectors today to guarantee robust, weather-resistant electrical connections in your projects.
Get multicomp U0026 IP67 Connectors today—built for rugged outdoor applications with reliable sealing and quick bayonet coupling.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002702?
You can click on the BUY or RFQ button to purchase MP002702 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002702?
You can download the MP002702 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002702?
MULTICOMP-PRO
