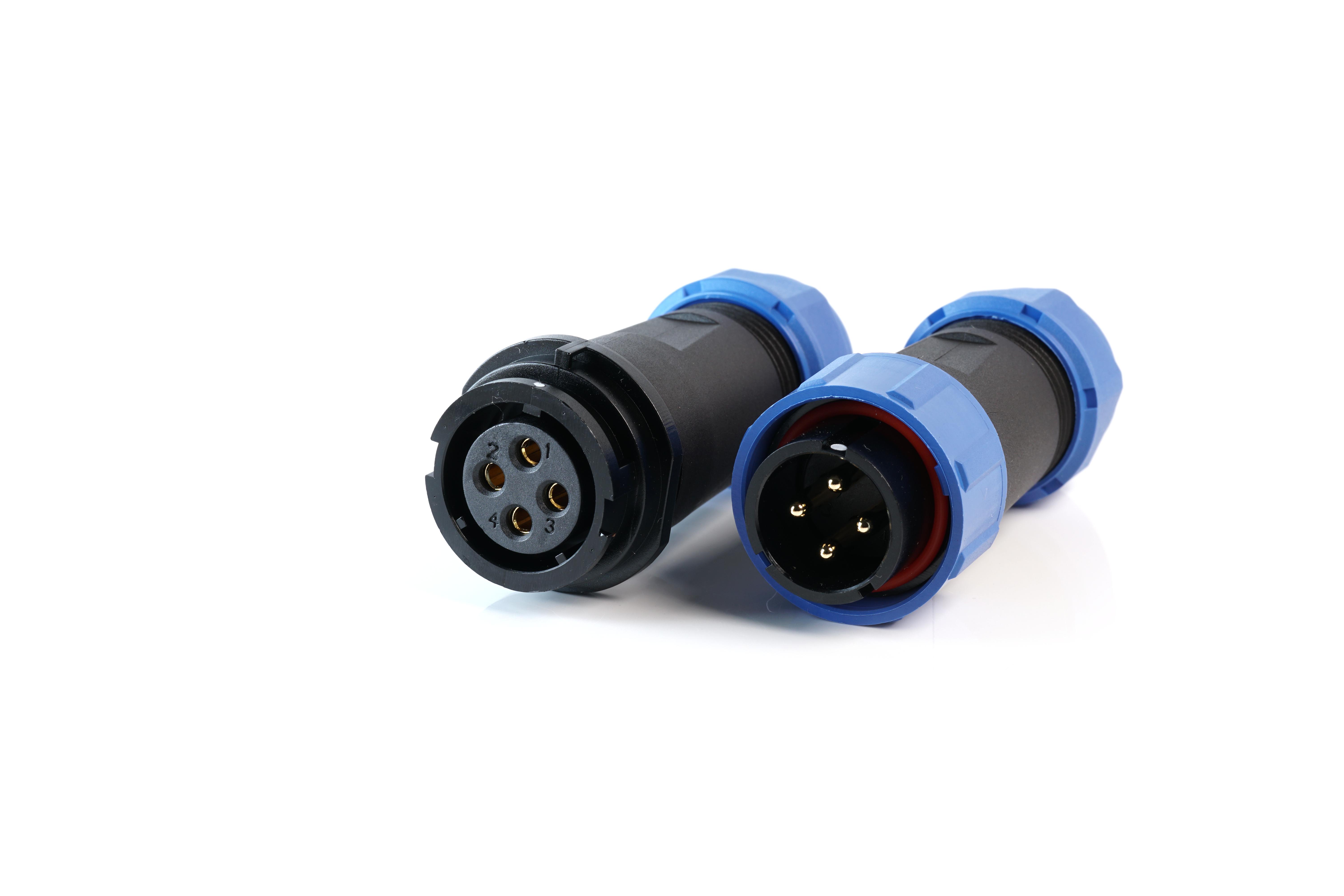

MULTICOMP PRO MP002703 IP67 Circular Connector
The MP-T21 IP67 series are high-performance connectors with bayonet coupling for efficient, secure connections. These connectors feature IP67 weatherproofing and are suitable for outdoor and indoor use. Available in panel, cable, and in-line mounts, they accommodate multiple poles from 2 to 12, with solder and screw terminations for versatile application. Constructed with durable nylon66 shells, PPS insulators, and gold-plated brass contacts, they are rated for up to 30A current and 500V voltage. Designed to withstand harsh environments, they are ideal for automation, industrial, medical, and security systems, ensuring reliable, long-lasting connections.
MULTICOMP PRO MP002703 IP67 Circular Connector Specifications:
- Shell Material: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling Type: Bayonet
- Termination: Solder and Screw options
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Rated Current: 30A for most contacts, 15A for some
- Rated Voltage: 500V (AC)
- Test Voltage: 1500V (1 min.)
- Contact Resistance: 1mΩ to 5mΩ depending on contact
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Cable Diameter Range: up to 12mm
- Resistant to dust and water, suitable for outdoor use
- Dimensions: Fits 21mm panel cutout, varies by connector type
- Certifications: RoHS compliant
Buy the Buy multicomp IP67 Series MP002703 Part Number MP002703 Online
Discover the reliable and weatherproof multicomp IP67 Circular Connector series with bayonet coupling for quick connections. Featuring configurations from 2 to 12 poles, these durable connectors are perfect for outdoor and indoor applications like automation, industrial systems, medical equipment, and security installations. Built with nylon66 shells, gold-plated brass contacts, and available with solder or screw terminals, they support high current and voltage ratings. Easy to install and maintain, order online now for secure, long-lasting performance in demanding environments.
Order your multicomp IP67 Series MP002703 connector today and secure reliable, weatherproof connections for industrial, automation, or outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002703?
You can click on the BUY or RFQ button to purchase MP002703 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002703?
You can download the MP002703 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002703?
MULTICOMP PRO
