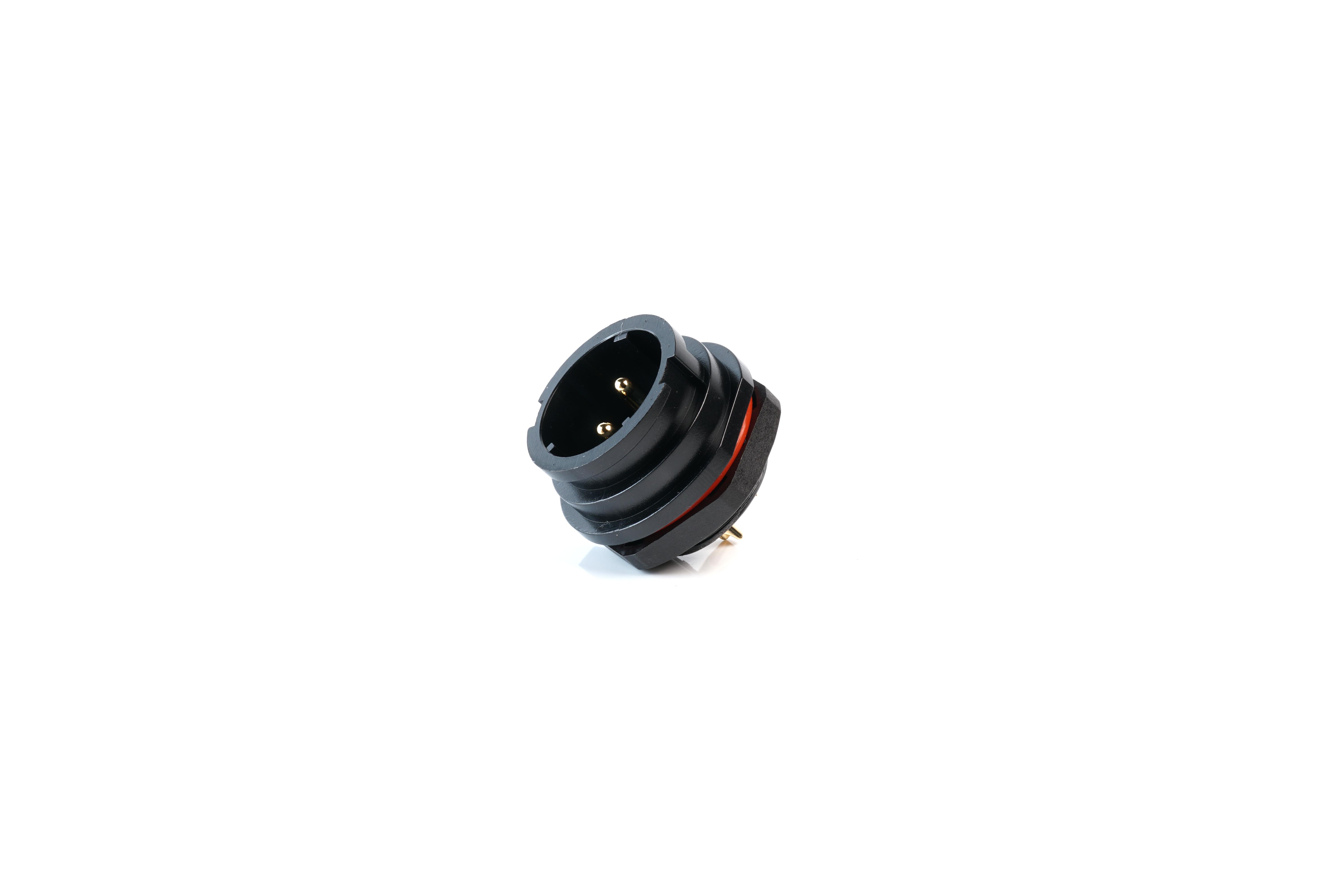

MULTICOMP PRO MP002714 IP67 Connector
The MP-T21 IP67 series is a durable range of connectors featuring bayonet couplings for quick and easy connection and disconnection. Ideal for outdoor and indoor applications, these connectors support cable and panel mounting options with solder and screw terminations. Rated IP67 for weather resistance, they accommodate 2 to 12 poles, making them suitable for automation, process control, medical devices, security systems, and industrial automation. The series includes in-line, cable, and rear panel mount configurations, with optional protective caps, ensuring reliable, corrosion-resistant connections in harsh environments.
MULTICOMP PRO MP002714 IP67 Connector Specifications:
- IP67 rated for water and dust resistance
- Bayonet coupling for quick connection
- Materials: Nylon66 shell, PPS insulators, Brass contacts with gold plating
- Temperature Range: -40°C to +80°C
- Rated Voltage: up to 500 V AC
- Rated Current: 5 to 30 A depending on pole number
- Contact Diameter: 1-3 mm
- Number of Poles: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder or screw type
- Dimensions: Fits 21 mm panel cut-out, cable outer diameter up to 12 mm
- Locking: Bayonet mechanism for secure attachment
- Test Voltage: 1500 V AC for 1 min
- Mating Cycle: 500 times
- RoHS compliant
- Available with protective dust cap
- Applications: automation, medical, security, industrial control
Buy the Buy multicomp Series MP002714 IP67 Connector Part Number MP002714 Online
Secure your projects with the reliable IP67 connector series featuring bayonet coupling for fast and secure connection. Suitable for outdoor and harsh environments, these connectors support multiple configurations including cable, panel, and inline mounting. They are designed with durable nylon66 shells, brass contacts with gold plating for corrosion resistance, and support solder or screw terminations. Rated up to 500 V AC and capable of 500 mating cycles, they are ideal for automation, medical, security, and industrial applications. Enhance your system’s reliability today with a weatherproof connector designed for demanding conditions.
Order your multicomp Series MP002714 IP67 connector today and ensure reliable, weatherproof connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002714?
You can click on the BUY or RFQ button to purchase MP002714 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002714?
You can download the MP002714 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002714?
MULTICOMP PRO
