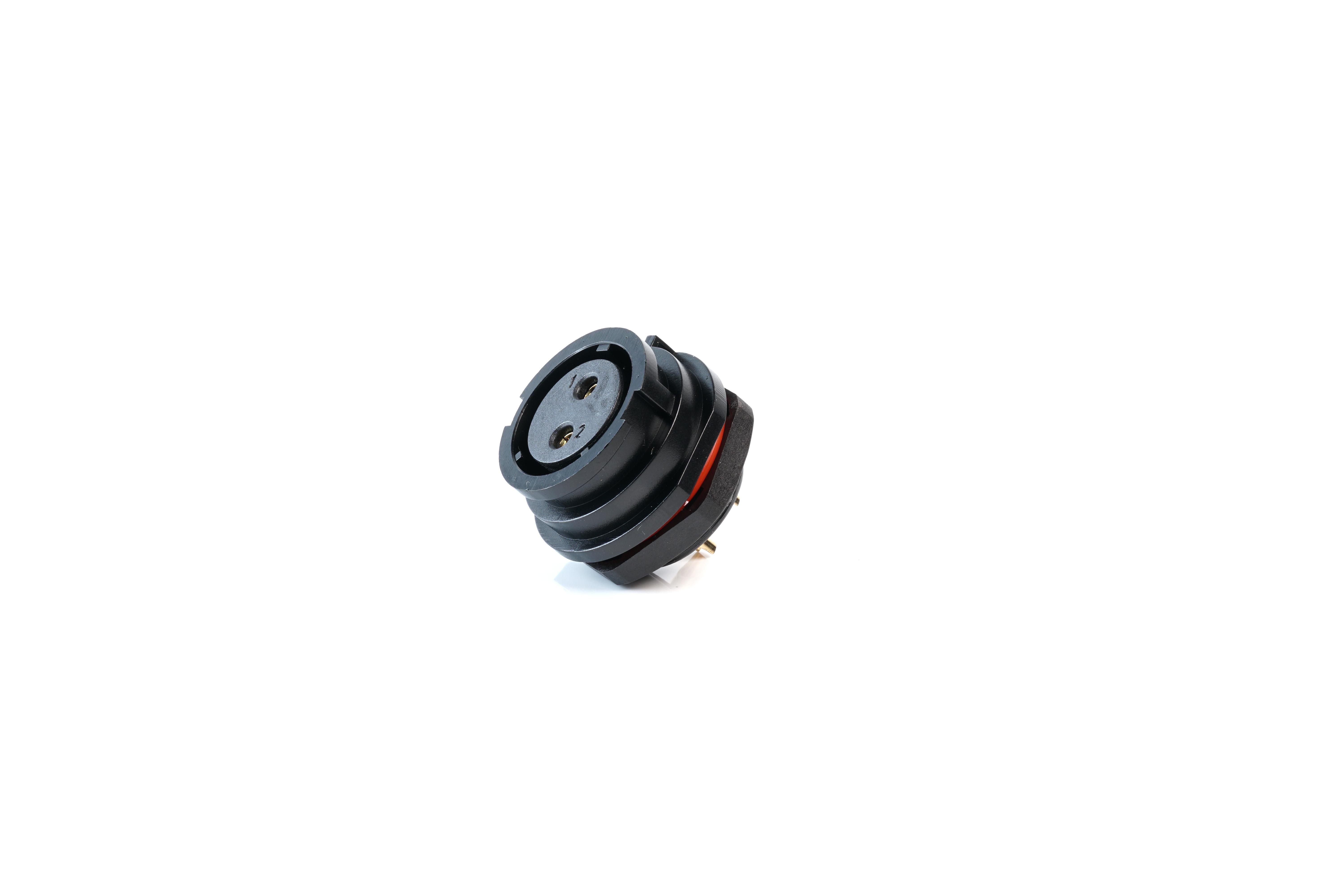

MULTICOMP PRO MP002720 IP67 Circular Connector
The MP-T21 IP67 series offers a durable range of connectors featuring bayonet couplings for quick and secure connections. These connectors are available in panel mount, cable mount, and in-line configurations, allowing for cable-to-panel or cable-to-cable connections. They are rated IP67 for weather resistance, making them suitable for both indoor and outdoor environments. The connectors fit a 21mm cut-out and offer solder or screw termination options. Available in 2, 3, 4, 5, 7, 9, and 12 pole versions, with an optional IP67 cap included. Applications include automation, process control, medical devices, security systems, testing and measurement, and industrial automation.
MULTICOMP PRO MP002720 IP67 Circular Connector Specifications:
- Material: Nylon66 shell, lock nut, back shell, compressing nut, retaining nut
- Fire Resistance: V-0
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling: Bayonet
- Termination: Solder or screw
- Rated Current: 30A (up to 3 contacts), 15A (5 contacts), 5A (12 contacts)
- Rated Voltage: 500V (up to 4 contacts), 400V (12 contacts)
- Test Voltage: 1500V AC for 1 min
- Contact Resistance: 1mΩ (up to 4 contacts), 2.5-5mΩ (5-12 contacts)
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Cable Diameter Range: up to 12mm
- Operating Temperature: -40°C to +80°C
- Mating Cycle: 500
Buy the Multicomp Series IP67 Connectors: MP002720
Order multicomp MP002720 IP67 circular connectors now for reliable, weather-resistant connections designed for industrial, automation, and outdoor applications. Featuring bayonet coupling for quick installation, these connectors support multiple configurations with solder or screw terminations. They ensure durability with a fire-resistant nylon66 shell and brass gold-plated contacts, rated at 30A and 500V, with IP67 weatherproof protection. Perfect for security, medical, industrial automation, or testing environments requiring robust and long-lasting connectivity solutions. Buy online today for fast delivery and competitive pricing.
Get multicomp MP002720 IP67 connectors today—built for quick, secure connections in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002720?
You can click on the BUY or RFQ button to purchase MP002720 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002720?
You can download the MP002720 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002720?
MULTICOMP PRO
