MULTICOMP-PRO MP002732 Push-Pull Connectors

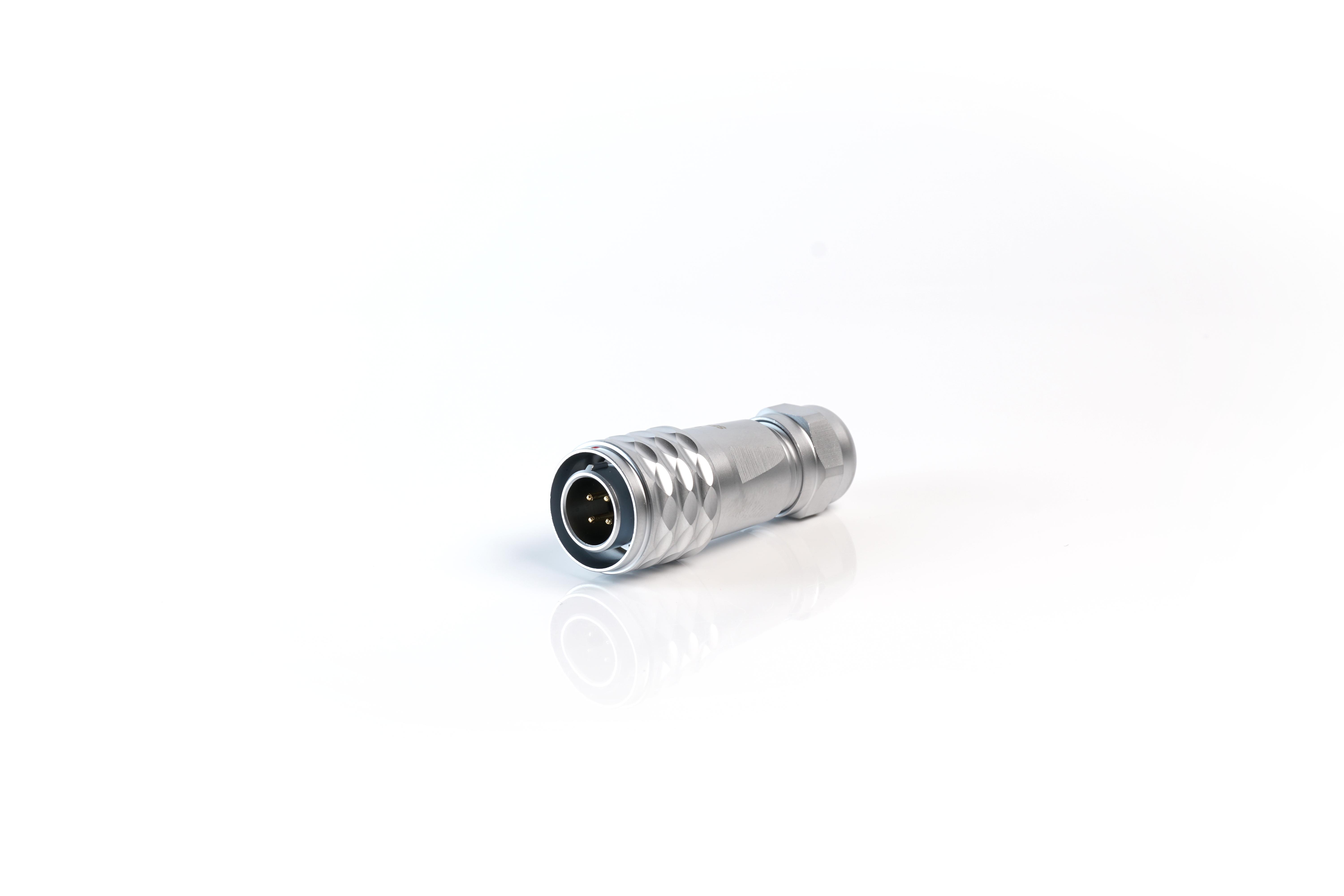

The MP M12 push-pull connectors are made of chrome-plated brass, offering durability suitable for tough environments while maintaining an attractive appearance. They are available in panel mount, cable mount, and in-line configurations, providing versatile options for cable-to-cable or cable-to-panel connections. Featuring IP67 weather resistance, these connectors are ideal for indoor and outdoor use, especially in rugged industrial environments. They utilize solder termination, fit 12mm cut-outs, and come in 2, 4, 5, and 7-pole versions, perfect for automation, process control, medical devices, security, test equipment, and industrial automation applications.
MULTICOMP-PRO MP002732 Push-Pull Connectors Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameter: 1, 1, 1.6 mm
- Rated Current: 13 A, 5 A
- Rated Voltage: 250 V, 200 V, 180 V, 125 V
- Test Voltage: 1500 V, 1000 V
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Number of Contacts: 2, 4, 5, 7
- Connector Types: Cable mount, inline, rear panel mount
- Shell Material: Brass with chrome plating
- Coupling Mechanism: Push-pull
- Dimensions: Suitable for 12mm cut-outs, approximately 44.2 mm panel thickness compatible
- Termination: Solder
Buy the Multicomp M12 – Reliable Push-Pull Connectors for Industrial Applications
Enhance your industrial automation projects with multicomp M12 push-pull connectors, featuring durable chrome-plated brass and IP67 weather resistance. Easy-to-use push-pull coupling allows quick connection and disconnection, making them ideal for rugged indoor and outdoor applications. Available in various configurations and pole counts, these connectors support high current and voltage ratings suitable for automation, process control, medical, security, and measurement systems. Designed for durability, these connectors ensure reliable, secure connections in challenging environments, streamlining industrial operations efficiently.
Buy multicomp M12 push-pull connectors now and experience unmatched reliability and performance in harsh industrial environments.
