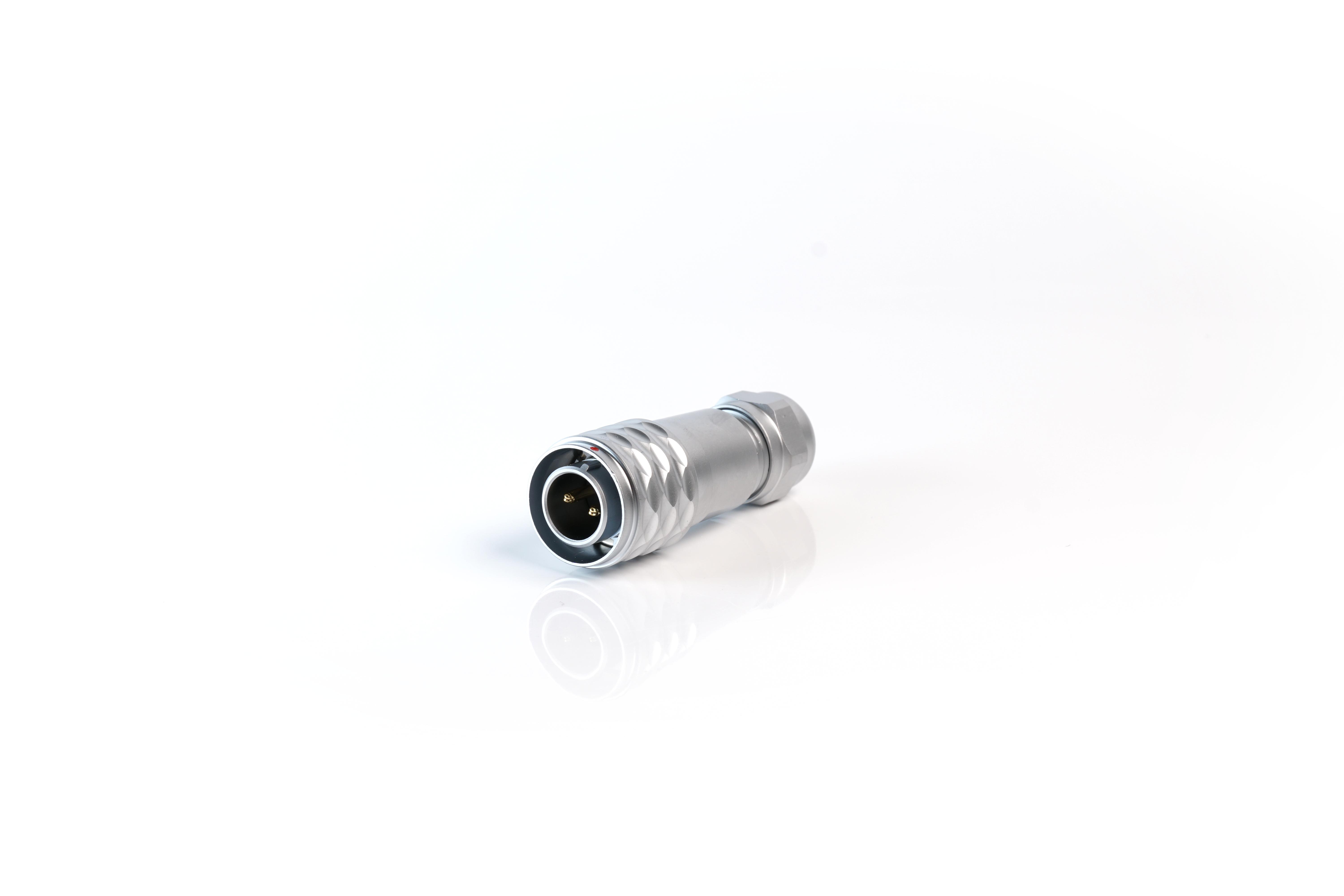

MULTICOMP PRO MP002734 Push-Pull Circular Connector
The M12 push-pull connectors are highly durable, featuring chrome-plated brass shells suitable for demanding environments. They offer quick, secure connections through a reliable push-pull coupling system, providing IP67 ingress protection for outdoor and industrial use. Available in multiple configurations including panel, cable, and inline mounts, with 2, 4, 5, or 7 contacts, they support solder termination and handle currents up to 13A. Designed for vast applications such as automation, security, medical devices, and measurement systems, these connectors combine ease of use with robustness and versatility.
MULTICOMP PRO MP002734 Push-Pull Circular Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MQ
- Termination: Solder
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13 A (for 2 contacts), 5 A (for 4, 5, 7 contacts)
- Rated Voltage: 250 V (2 contacts), 200 V (4 contacts), 180 V (5 contacts), 125 V (7 contacts)
- Test Voltage: 1500 V (2, 4 contacts), 1000 V (5, 7 contacts) for 1 min
- Contact Diameter: 1.6 mm (2 contacts), 1 mm (4, 5, 7 contacts)
- Wire Size: 0.75/18 AWG
- Panel Cutout: 3.5 mm max
- Outer Diameter Range: 4 mm to 6.5 mm
- Dimensions: Millimetres, including panel cutout and front diameter details
Buy the Multicomp M12 Push-Pull Circular Connectors – Reliable IP67 for Industrial Applications
Enhance your industrial setups with our robust M12 push-pull circular connectors. Designed for quick, secure connections, these connectors feature a chrome-plated brass shell, IP67 weatherproof rating, and multiple configurations including panel, cable, and inline mounts. They support solder termination, handle up to 13A current, and are ideal for automation, security, medical devices, and measurement systems. With a variety of contact sizes and mounting options, these connectors ensure durability and ease of installation for demanding industrial environments.
Buy Multicomp M12 Push-Pull connectors now and experience unmatched durability, quick connection, and versatile mounting options for your industrial needs.
