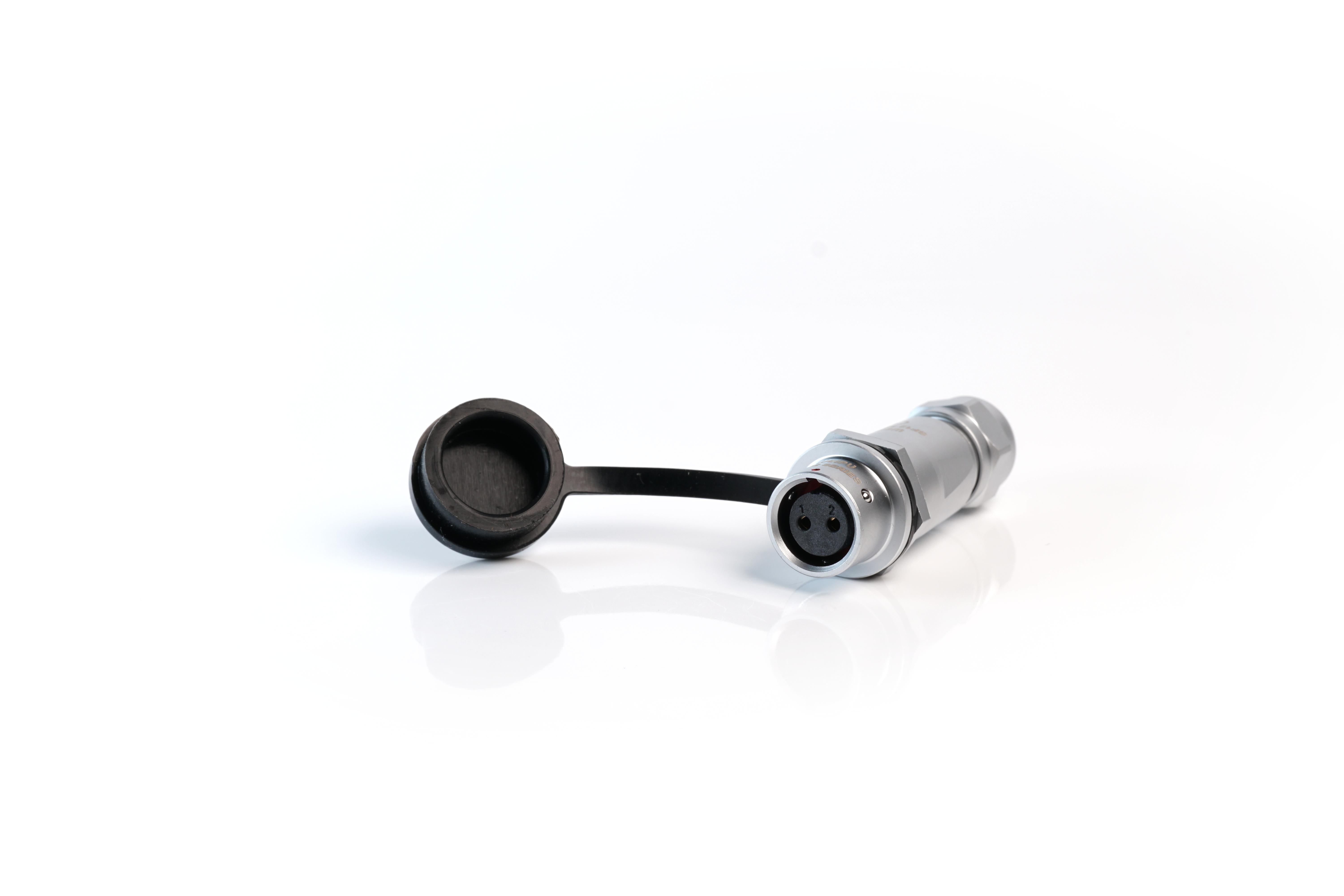

MULTICOMP PRO MP002743 Industrial Circular Connector
The MP M12 push-pull connectors are chrome-plated brass devices designed for durability and aesthetic appeal in harsh environments. Featuring a push-pull coupling mechanism, they enable quick, secure connections and disconnections. Rated IP67 for weather resistance, these connectors are ideal for outdoor and industrial use. They are available in panel mount, cable mount, and inline configurations with 2, 4, 5, or 7 poles, suitable for automation, process control, security, and medical applications. They support solder termination and fit a 12mm panel cut-out, ensuring versatile installation options.
MULTICOMP PRO MP002743 Industrial Circular Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Contact Resistance: 2.5 mΩ (2 poles), 5 mΩ (4, 5, 7 poles)
- Rated Current: 13 A (2 poles), 5 A (4, 5, 7 poles)
- Rated Voltage: 250 V (2 poles), 200 V (4 poles), 180 V (5 poles), 125 V (7 poles)
- Test Voltage: 1500 V (2, 4, 5 poles), 1000 V (7 poles)
- Contact Diameter: 1.6 mm (2 poles), 1 mm (4, 5, 7 poles)
- Wire Size: 0.75 mm² / 18 AWG
- Panel Cutout: 3.5 mm max
- Outer Diameter: 4mm to 6.5mm, 4mm to 8mm for different configurations
- Connection Type: Solder termination
- Available Variants: Cable mount, inline, rear panel mount
- Dimensions: Millimetres, fitting a 12mm mounting hole
Buy the Buy Multicomp M12 Push-Pull Connectors Part Number MP002743 Online
Order the Multicomp M12 Push-Pull Connector MP002743 online now for reliable, weather-resistant connections suitable for automation, industrial equipment, and outdoor controls. These chrome-plated brass connectors offer quick push-pull coupling, IP67 protection, and a compact 12mm size, perfect for both panel and cable mounting. Available in multiple configurations with 2, 4, 5, or 7 poles, they feature solder termination, supporting a wide temperature range from -40°C to +85°C. Designed for long-lasting use in demanding environments, these connectors ensure secure, effortless installation and maintenance.
Get Multicomp M12 Push-Pull Connector MP002743 today—designed for industrial durability and quick connection in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002743?
You can click on the BUY or RFQ button to purchase MP002743 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002743?
You can download the MP002743 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002743?
MULTICOMP PRO
