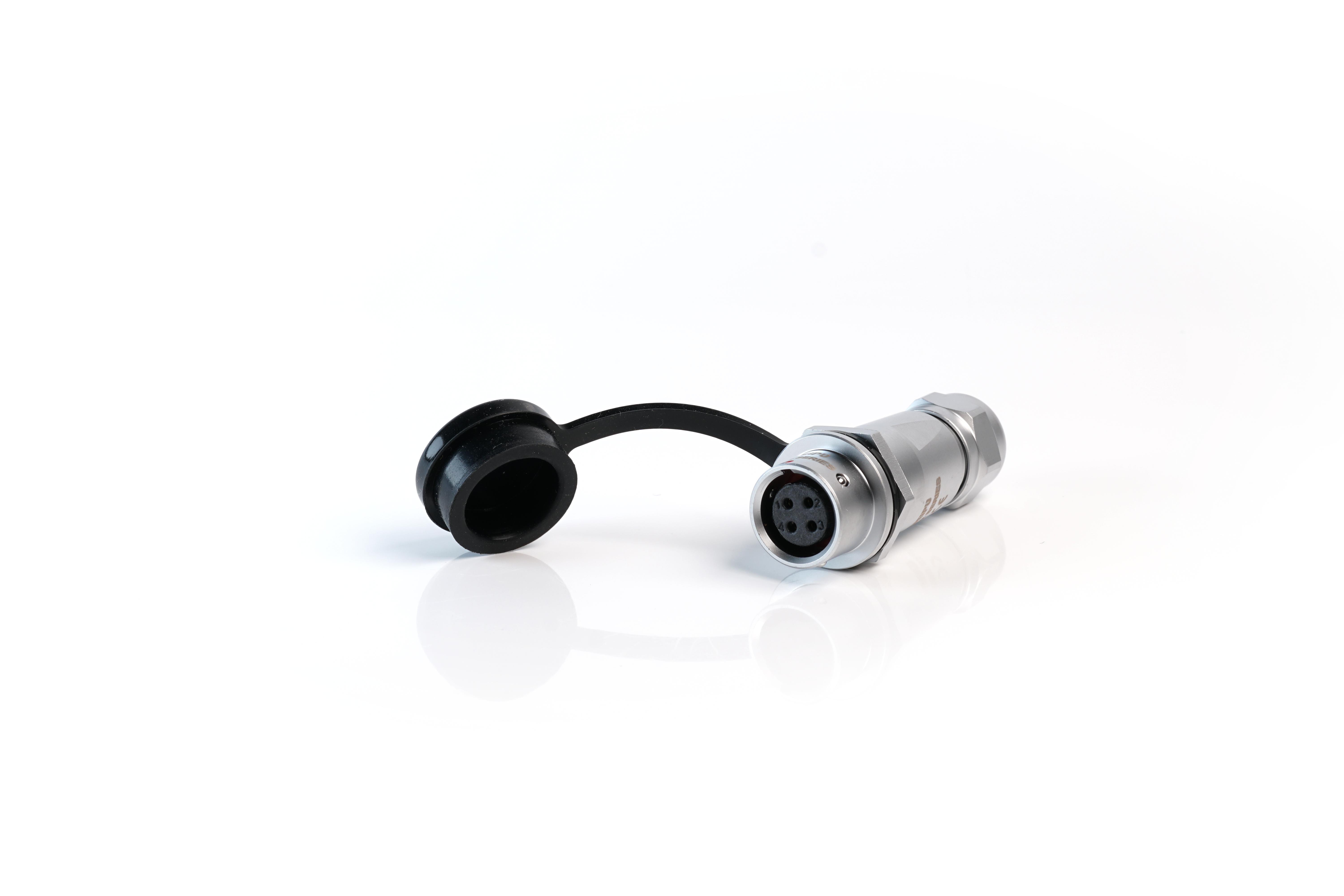

MULTICOMP PRO MP002744 Industrial M12 Connector
The MP M12 push-pull connectors are constructed from chrome-plated brass, providing durability and corrosion resistance suitable for demanding environments. They are available in panel mount, cable mount, and inline configurations, supporting secure cable-to-cable or cable-to-panel connections. Featuring IP67 weatherproof sealing, these connectors ensure reliable performance in outdoor or industrial settings. Their push-pull coupling mechanism allows for quick, tool-free connecting and disconnecting. Designed for a 12mm panel cut-out, they support solder termination and come in multiple pole counts—2, 4, 5, and 7—ideal for automation, control, medical, security, and test equipment applications.
MULTICOMP PRO MP002744 Industrial M12 Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameter: 1, 1.6 mm
- Rated Current: 13 A (2 poles), 5 A (4, 5, 7 poles)
- Rated Voltage: 250 V (2 poles), 200 V (4 poles), 180 V (5 poles), 125 V (7 poles)
- Test Voltage: 1500 V (2, 4 poles), 1000 V (5, 7 poles) for 1 min
- Contact Resistance: 2.5 mΩ (2 poles), 5 mΩ (others)
- Wire Size: 0.75/18 AWG
- Outer Diameter Range: 4 mm to 6.5 mm
- Panel Cutout: 3.5 mm depth
- Dimensions: Compatible with 12mm panel cutout
- Connection Type: Solder termination
- Configurations: Cable mount, inline, panel mount with various contact counts
Buy the Multicomp M12 Push-Pull – Reliable Circular Connectors for Industrial Applications
Order Multicomp M12 Push-Pull connectors today and enjoy quick, tool-free connection with robust IP67 sealing. Perfect for industrial automation, control systems, medical devices, and security applications, these durable connectors support multiple configurations and pole counts, ensuring adaptability for your specific needs. Designed from corrosion-resistant chrome-plated brass with gold-plated contacts, they guarantee long-lasting performance even in harsh environments. Experience seamless installation, reliable connectivity, and high durability—purchase online now for immediate industrial-grade solutions.
Get Multicomp M12 Push-Pull connectors today—built for quick assembly, outdoor durability, and reliable performance in industrial environments.
