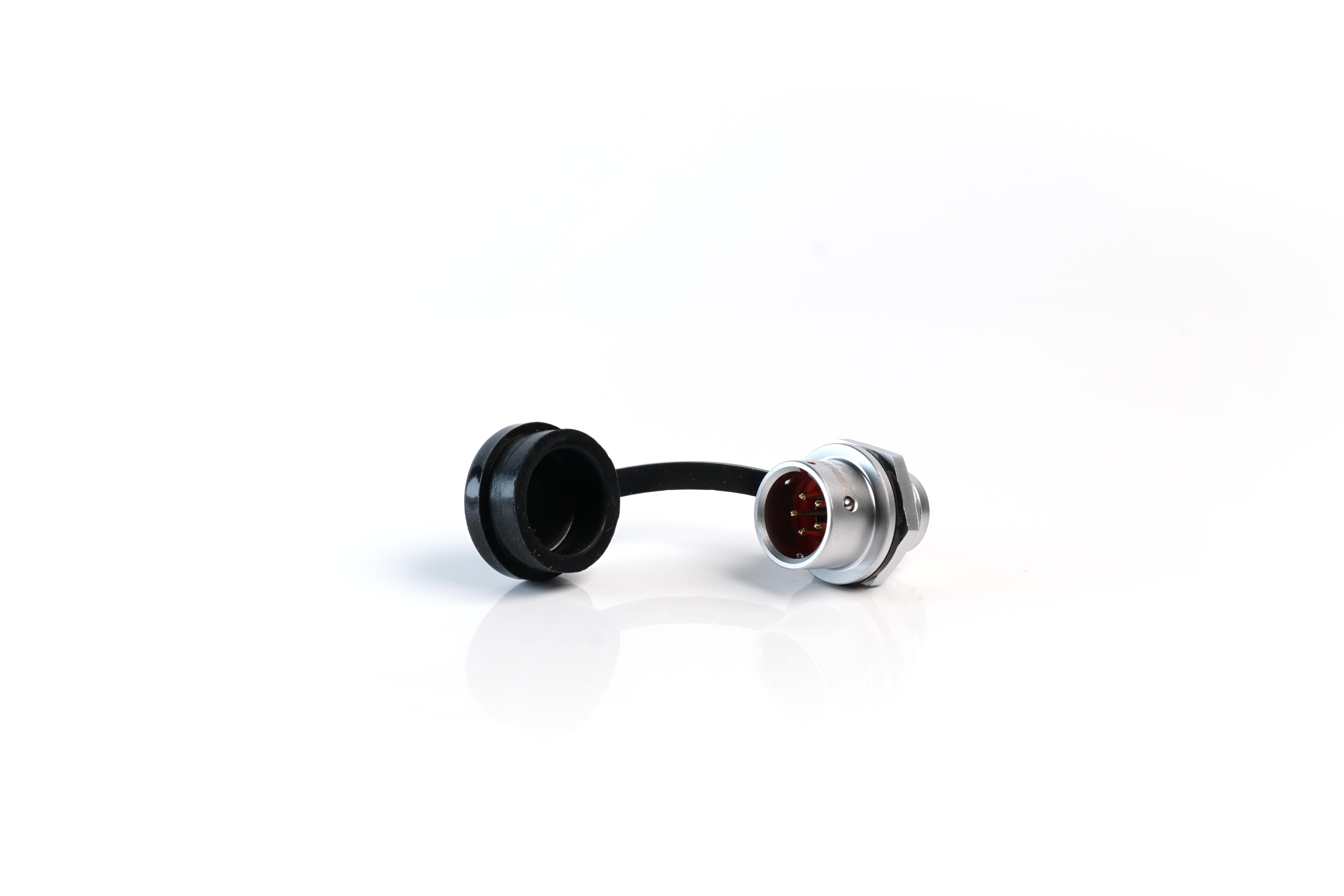

MULTICOMP-PRO MP002749 M12 Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, offering durability for demanding environments while maintaining an attractive appearance. They are available in panel mount, cable mount, and inline cable mount configurations, supporting cable-to-cable or cable-to-panel connections. Designed with a push-pull coupling mechanism, these connectors allow for easy connection and disconnection. They feature an IP67 weatherproof rating, suitable for indoor and outdoor use. These connectors support 2, 4, 5, and 7 poles, with solder termination and a 12mm fitting size, ideal for automation, industrial automation, and process control applications.
MULTICOMP-PRO MP002749 M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13 A (2 poles), 5 A (others)
- Rated Voltage: 250 V (2 poles), 200 V, 180 V, 125 V respectively
- Test Voltage: 1500 V / 1000 V AC
- Contact Resistance: 2.5 mΩ / 5 mΩ
- Wire Size: 0.75 mm² / 18 AWG
- Cable Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Dimensions: Fitting size 12mm, panel cutout approx. 3.5mm, outer diameter varies
- Termination: Solder
Buy the Multicomp M12 Push-Pull Connectors – Reliable IP67 Connectors for Industrial Applications
Enhance your automation setup with the durable M12 Push-Pull Connector from Multicomp. Crafted from chrome-plated brass and rated IP67, it is ideal for demanding environments. Suitable for indoor and outdoor applications, it supports multiple configurations including 2, 4, 5, and 7 poles, with solder termination, supporting cable diameters of 4mm to 6.5mm or 5mm to 8mm. Its reliable push-pull coupling mechanism ensures quick, secure connections, making it perfect for industrial automation, process control, and general electronic projects requiring rugged, weatherproof connectors.
Order your Multicomp M12 Push-Pull Connector today and ensure robust, easy-to-use connections for your automation and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002749?
You can click on the BUY or RFQ button to purchase MP002749 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002749?
You can download the MP002749 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002749?
MULTICOMP-PRO
