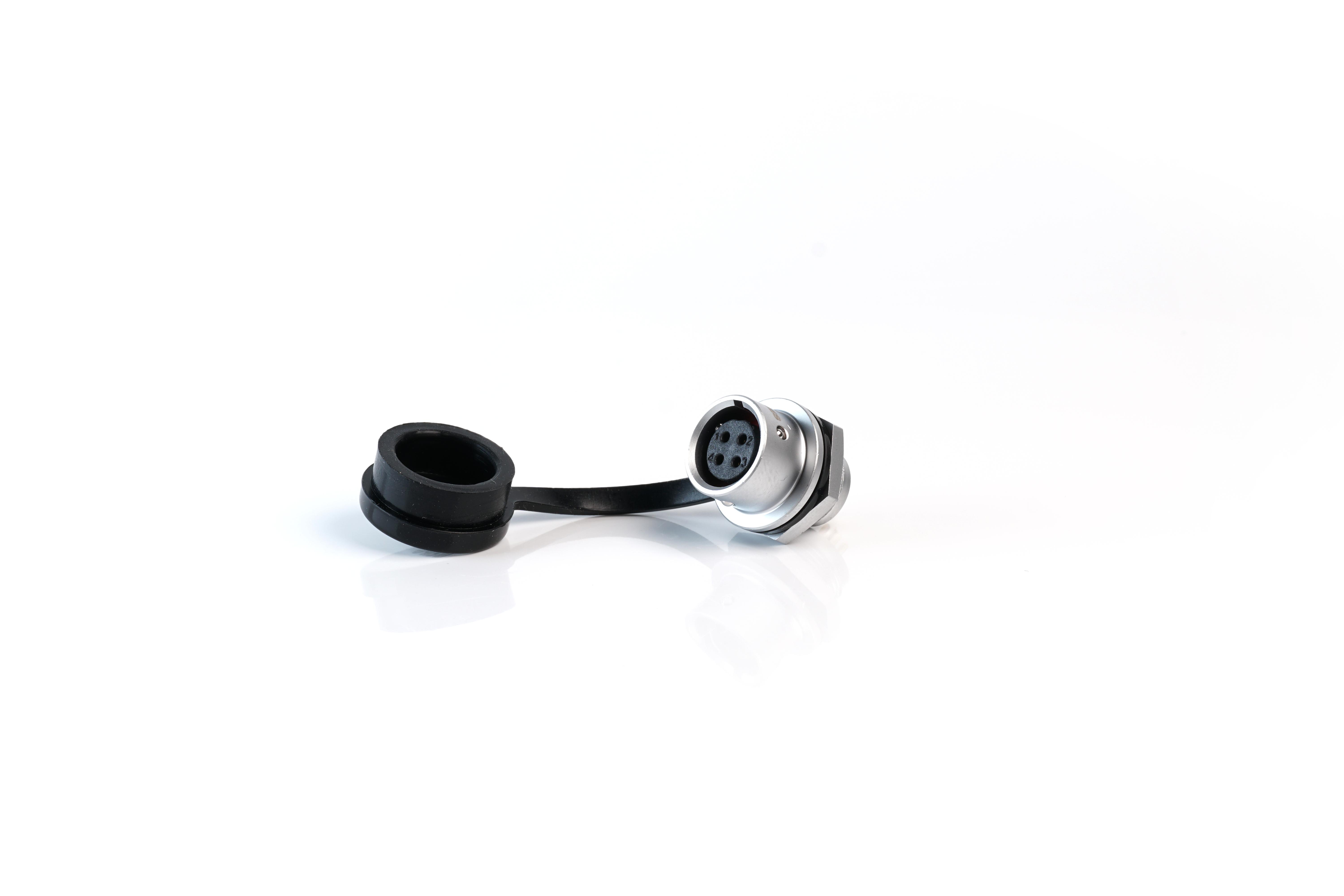

MULTICOMP PRO MP002752 Industrial Push-Pull Connector
The MP M12 push-pull connectors are made of chrome-plated brass, providing durability for demanding environments and an attractive appearance. Available in panel, cable, and inline mount configurations, they support cable-to-cable or cable-to-panel connections with IP67 weather sealing for indoor and outdoor use. The push-pull coupling allows quick connection and disconnection, accommodating 2, 4, 5, or 7 poles with solder terminals. These industrial connectors are ideal for automation, medical devices, security, testing, and process control applications, ensuring reliable performance in harsh conditions.
MULTICOMP PRO MP002752 Industrial Push-Pull Connector Specifications:
- Material: Chrome-plated brass
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13 A for 2 poles, 5 A for 4, 5, 7 poles
- Rated Voltage: 250 V for 2 poles, 200 V for 4 poles, 180 V for 5, 125 V for 7 poles
- Contact Diameter: 1 to 1.6 mm
- Cable Outer Diameter Range: 4mm to 6.5mm
- Dimensions: Compatible with 12mm panel cut-outs; Mounting options include panel, cable, and inline
Buy the Multiplex Connectors MP002752 – Reliable M12 Push-Pull for Industrial Applications
Purchase the Multiplex MP002752 industrial push-pull connector online today to benefit from easy installation, secure IP67 weatherproof sealing, and robust brass construction. Designed for demanding environments, these connectors support multiple mounting options and pole configurations, making them ideal for automation, medical devices, security systems, and industrial control applications. With quick connect/disconnect features and high durability, investing in this reliable connector ensures long-term operational stability for your critical projects. Secure your supply chain by ordering now!
Order your Multiplex Series MP002752 durable M12 push-pull connector today and ensure reliable, quick connections for your automation and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002752?
You can click on the BUY or RFQ button to purchase MP002752 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002752?
You can download the MP002752 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002752?
MULTICOMP PRO
