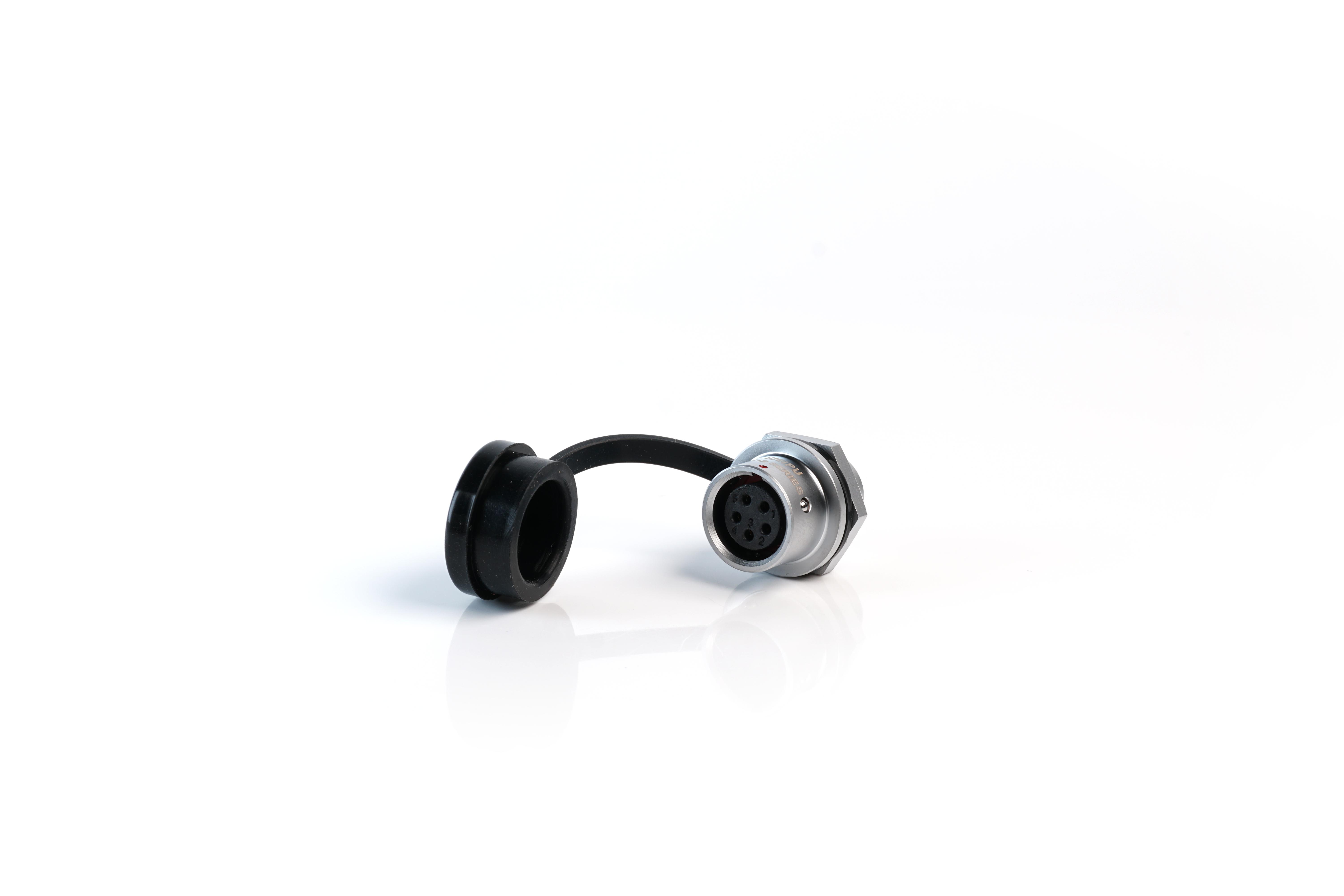

MULTICOMP PRO MP002753 M12 Push-Pull Connector
The MP M12 push-pull connectors feature a durable chrome-plated brass shell and a robust design suitable for demanding outdoor and indoor environments. Available in panel, cable, and inline configurations, these connectors provide reliable, secure connections with a push-pull coupling mechanism for quick engagement and release. Rated IP67 for weather resistance, they support multiple pole options—2, 4, 5, and 7. They are designed for use in automation, process control, medical, security, testing, and industrial automation sectors. The solder termination ensures easy installation, with a 12mm fitment suitable for a variety of industrial applications.
MULTICOMP PRO MP002753 M12 Push-Pull Connector Specifications:
- Shell Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Number of Contacts: 2, 4, 5, 7
- Rated Current: 13A (2 contacts), 5A (others)
- Rated Voltage: 250V (2 contacts), 200V, 180V, 125V (others)
- Test Voltage: 1500V (2 contacts), 1000V (others)
- Contact Resistance: 2.5mΩ (2 contacts), 5mΩ (others)
- Wire Size: 0.75mm² / 18 AWG
- Dimensions: 12mm fitment, panel cutout 3.5mm max
- Connection: Solder
- Ingress Protection: IP67, weather resistant
- Mating Cycles: 500
- Assembly: Panel, cable, inline configurations
Buy the Buy Multicomp IP67 M12 Push-Pull Connectors Part Number MP002753 Online
Explore the ease of reliable, weatherproof connections with the M12 push-pull connector. Rated IP67, made from durable brass with gold-plated contacts, it supports multiple configurations for automation, medical, and industrial settings. Its push-pull coupling ensures quick, secure engagement, while solder termination simplifies installation. Available in various pole options, this connector is designed for indoor and outdoor use. Purchase online today to ensure your project benefits from robust, long-lasting, industrial-grade connectivity that meets demanding environment needs.
Get Multicomp IP67 M12 Push-Pull Connectors MP002753 today—built for durable, weather-resistant industrial and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002753?
You can click on the BUY or RFQ button to purchase MP002753 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002753?
You can download the MP002753 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002753?
MULTICOMP PRO
