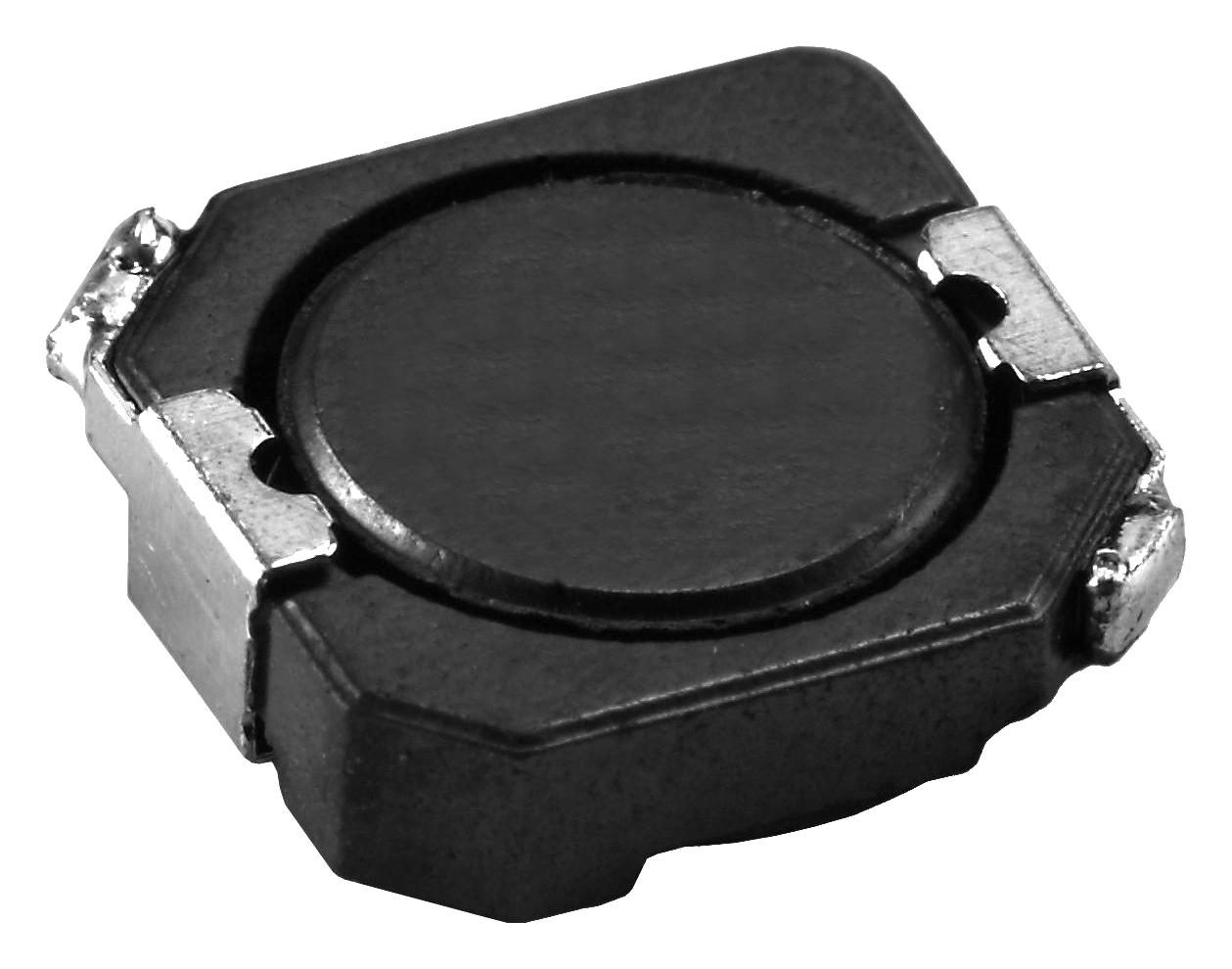

MULTICOMP PRO MP002867 Shielded Power Inductor
High-performance shielded surface-mount power inductor designed for efficient energy storage and filtering in DC/DC converters, power supplies, and portable devices. It features a ferrite core with a directly connected electrode, magnetically shielded against radiation, ensuring minimal electromagnetic interference. Suitable for applications like LCD televisions, VTRs, notebooks, and communication devices, it supports a wide operating temperature range of -40°C to 125°C. The inductor offers high saturation current and robust thermal stability, delivering reliable power performance in compact SMD form factors.
MULTICOMP PRO MP002867 Shielded Power Inductor Specifications:
- Case Code: 1004
- Dimensions: Length 10.3 mm, Width 10.4 mm, Height 4 mm
- Rated DC current: specified at 35% inductance reduction or coil temperature rise at AT=40°C (Ta=25°C)
- Operating temperature range: -40°C to 125°C
- Inductance: 10 µH, 22 µH, 47 µH, 100 µH, 150 µH
- Tolerance: ±20%
- Resistance: Measured at 100 kHz, 0.1 V
- Max DCR: Provided for each part number
- Maximum current: 23 A for 1004, 29 A for 22, 93 mA for 100 µH, 21 A for 47 µH, 1.15 A for 150 µH
- Environmental storage conditions: 15°C to 28°C, humidity <80%
- Vibration resistance: 10 Hz to 55 Hz at 1.5 mm amplitude
- Temperature cycling: -40°C to 85°C cycles
- Solderability: ≥90% coverage after dip in solder at 245°C for 3 seconds
- Resistance to soldering heat: No deformation or appearance change after immersion at 260°C for 10 seconds
Buy the Multicomp Series Shielded Power Inductor: MP002867
Purchase the Multicomp Series Shielded Power Inductor MP002867 online today and experience high saturation current, magnetic shielding, and durable design suitable for demanding power supply applications. Ideal for DC/DC converters, LCD TVs, notebooks, and communication devices, this compact SMD inductor supports a wide temperature range from -40°C to 125°C, ensuring reliable operation under extreme conditions. Its robust construction and efficient electromagnetic shield make it the perfect choice for engineers seeking dependable energy storage solutions in modern electronic devices.
Get Multicomp Power Inductor MP002867 today—built for high power handling and reliable electromagnetic shielding.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002867?
You can click on the BUY or RFQ button to purchase MP002867 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002867?
You can download the MP002867 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002867?
MULTICOMP PRO
