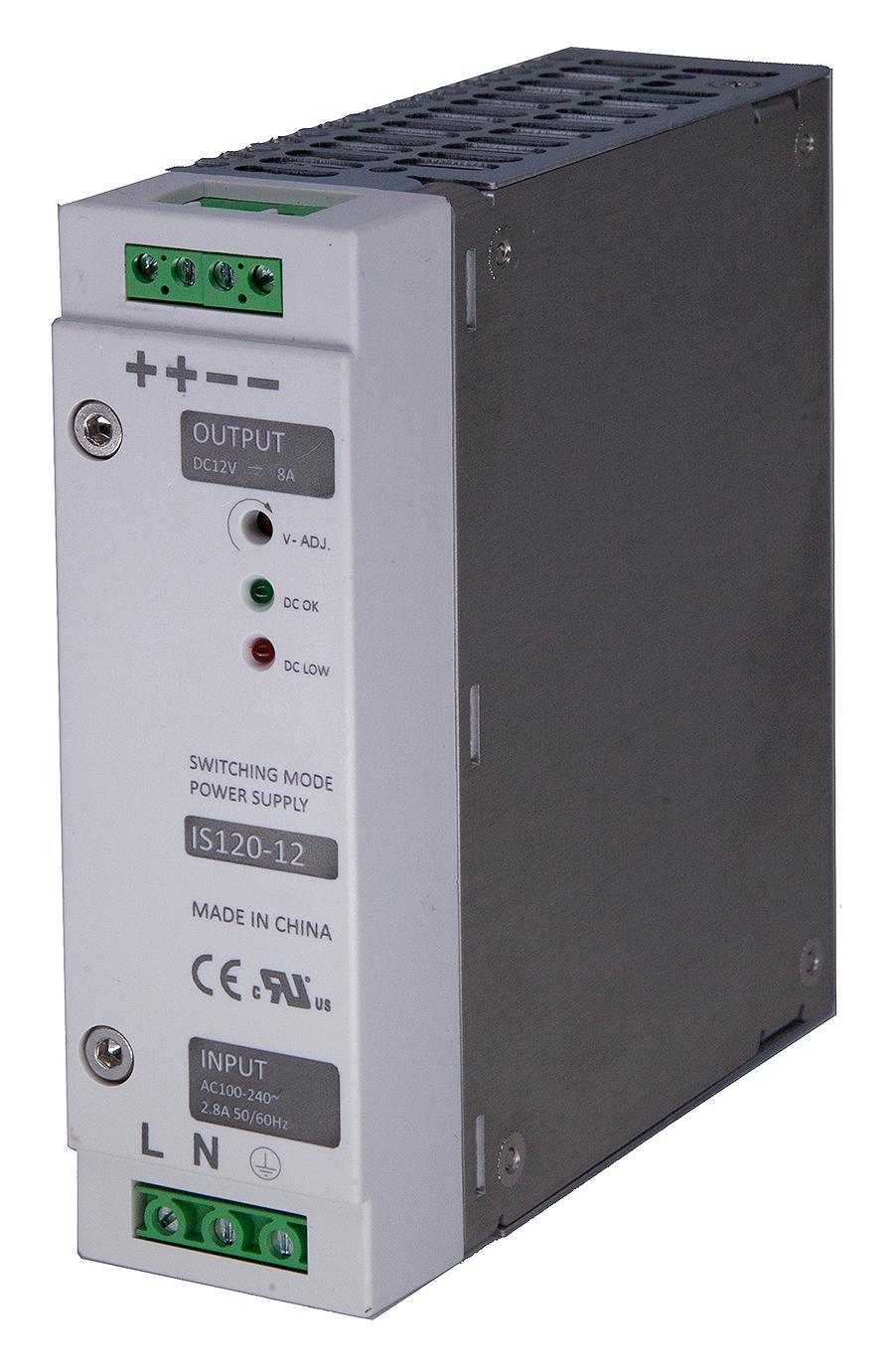

MULTICOMP-PRO MP003270 Industrial Power Supply
The 120W AC-DC Din Rail Power Supply provides reliable, efficient power for industrial automation, process control, and traffic systems. Compact and RoHS compliant, it features universal AC input from 90V to 264V, with options for 12V 8A or 24V 5A outputs. Built for durability, it includes short circuit, over voltage, over current, and over temperature protections, with LED indicators for DC power status. Suitable for vertical mounting with free air convection cooling, it ensures safe, stable operation across a wide temperature range, making it ideal for factory automation and industrial applications.
MULTICOMP-PRO MP003270 Industrial Power Supply Specifications:
- Input Voltage: 90V AC to 264V AC
- Input Frequency: 47-63 Hz
- Output Voltage: 12V (MP003270), 24V (MP003271)
- Output Current: 8A (12V), 5A (24V)
- Ripple: Max 100mV (12V), Max 120mV (24V)
- Efficiency: 82% (12V), 85% (24V)
- Protection: Short circuit, over voltage (20V / 33V), over current (10A / 6.6A), over temperature (100°C)
- Dimensions: 40mm x 130mm x 125mm
- Weight: 800g
- Cooling: Free air convection
- Isolation voltage: 3KV AC (I/P-O/P), 1.5KV AC (I/P-FG, O/P-FG)
- Operating Temperature: -25°C to +70°C
- MTBF: 200,000 hours at 25°C
Buy the Multicomp 120W Power Supply – Reliable AC-DC Power for Industrial Applications
Upgrade your industrial control systems with this high-performance 120W AC-DC Din Rail Power Supply. Designed for efficiency and reliability, it supports a wide input voltage range, offers comprehensive protection features, and is suitable for factory automation, process control, and transportation systems. Easy to mount with free air cooling, it provides stable output with low ripple and high efficiency, ensuring continuous operation in demanding environments. Purchase online today for fast delivery and trusted quality.
Order your multicomp 120W AC-DC Power Supply today and ensure dependable power delivery for your industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003270?
You can click on the BUY or RFQ button to purchase MP003270 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003270?
You can download the MP003270 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003270?
MULTICOMP-PRO
