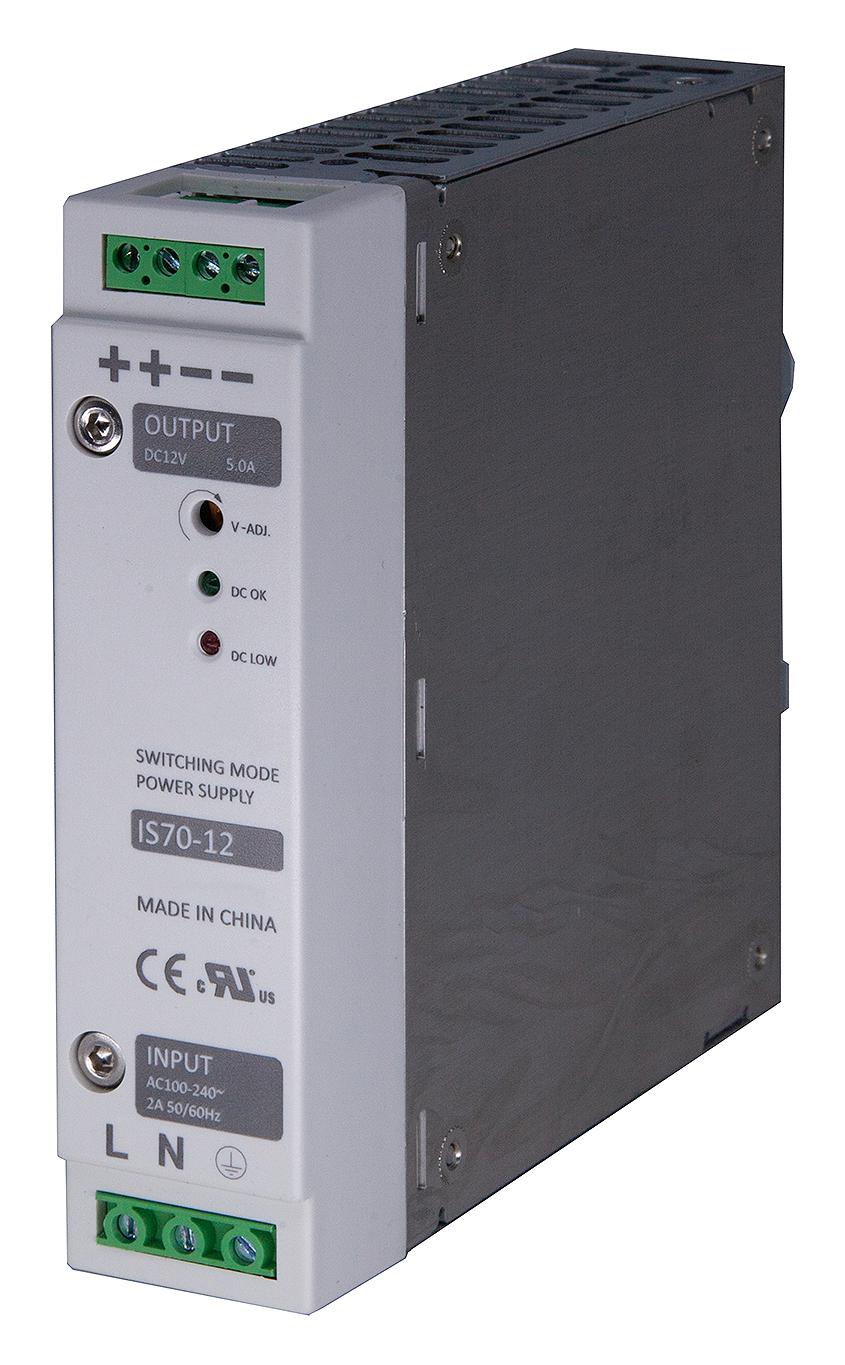

MULTICOMP PRO MP003281 Industrial Power Supply
The 70W AC-DC Din Rail Power Supply offers reliable and high-performance single-phase power conversion with universal input voltage from 90V to 264V AC. Compact and RoHS compliant, its features include short circuit, over-voltage, over-current, and over-temperature protections, ensuring operational safety. Designed for industrial applications such as process control, factory automation, and traffic systems, it provides stable output voltages of 12V or 24V with output currents up to 3A or 5A. Adequate cooling via free air convection, LED indicators, and durable construction make it suitable for continuous, demanding environments.
MULTICOMP PRO MP003281 Industrial Power Supply Specifications:
- Input Voltage: 90V AC to 264V AC
- Input Frequency: 47Hz to 63Hz
- Output Voltage: 12V or 24V (adjustable)
- Output Current: 5A (12V), 3A (24V)
- Efficiency: 84% at 12V, 86% at 24V
- Ripple: Max. 100mV
- Protection: Short circuit, Over voltage (20V/33V), Over current (8A/4A), Over temperature (100°C)
- Dimensions: 33mm(W) x 130mm(H) x 125mm(D)
- Weight: 650g
- Operating Temperature: -25°C to +70°C
- MTBF: 200,000 hours
- Certifications: CE, FCC, CB, UL, CUL
Buy the Buy Multicomp Pro AC-DC Power Supply Part Number MP003281 Online
Purchase the Multicomp Series70W MP003281 AC-DC DIN Rail Power Supply today and enjoy high efficiency and reliable operation for industrial automation, factory control, and traffic systems. Featuring universal input voltage from 90V to 264V AC, it provides stable 12V or 24V outputs with built-in protections including short circuit, over-voltage, over-current, and over-temperature. Compact and RoHS compliant, this power supply ensures safety and durability, with easy mounting and LED indicators for operational status. Ideal for continuous industrial performance, order now for dependable power solutions that meet your project needs.
Order your Multicomp Series70W MP003281 DIN Rail Power Supply today and ensure your industrial automation projects operate reliably with high-quality power conversion.
