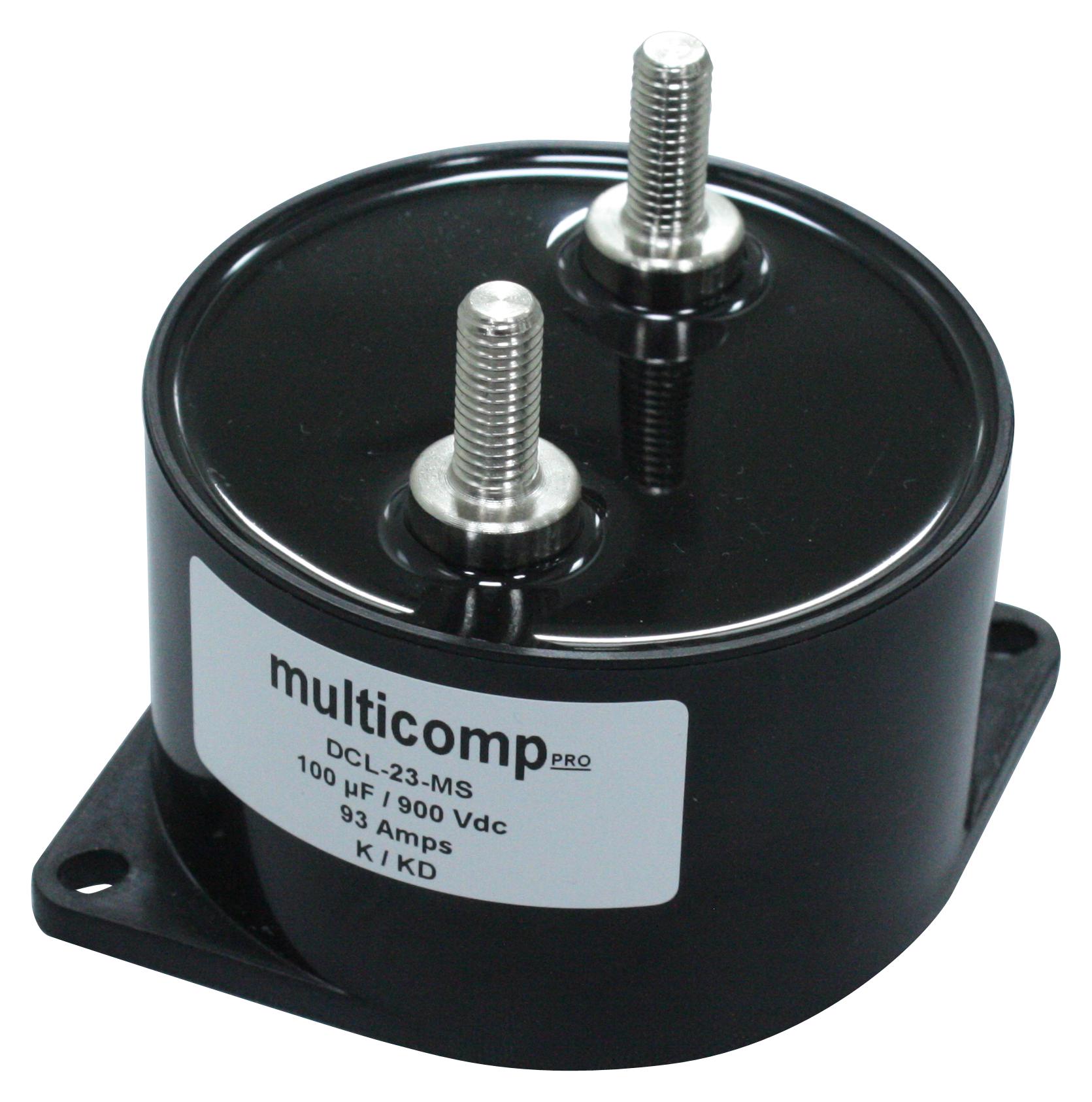

MULTICOMP PRO MP003970 DC Link Capacitor
High-performance DC link film capacitors designed for reliable power conversion applications such as wind and solar inverters, electric vehicle inverters, and motor drives. These capacitors feature metallized polypropylene film, low ESR as low as 0.5mΩ, high thermal conductivity, and a life expectancy of up to 100,000 hours. With integrated mounting flanges, flame-retardant UL94-V0 casing, and electrical ratings from 30UF to 265UF at voltages up to 1800V DC, they ensure efficient filtering, high ripple current handling, and long-term durability in demanding industrial environments.
MULTICOMP PRO MP003970 DC Link Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700, 800, 900, 1000, 1200, 1400, 1600, 1800
- Test voltage: 1.3× rated voltage V DC for 60 s, and KV AC at 50Hz for 60 s
- Dissipation factor: 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1000 MQ x uF at 25°C
- Marking: Grade DCL-23, capacitance in pF, rated voltage V DC, max current Arms, capacity tolerance, manufacturing code
- Dimensions: Size varies with capacitance and voltage, typically around 85mm x 64mm x 40mm for standard models
Buy the Multicomp Series DC Link Capacitors: MP003970
Enhance your power conversion systems with the reliable and durable DC Link Capacitors from Multicomp. Designed for inverter applications, these capacitors feature metallized polypropylene film for low ESR, high thermal conductivity, and long life expectancy. Suitable for wind, solar, and electric vehicle inverters, motor drives, and filtering needs, they meet UL94-V0 flame retardant standards and offer voltage ratings up to 1800V DC. Efficient, long-lasting, and easy to install—order online today for your industrial power projects.
Order your Multicomp Series DC Link Capacitors MP003970 today and equip your power systems with reliable, high-capacity filtering components.
