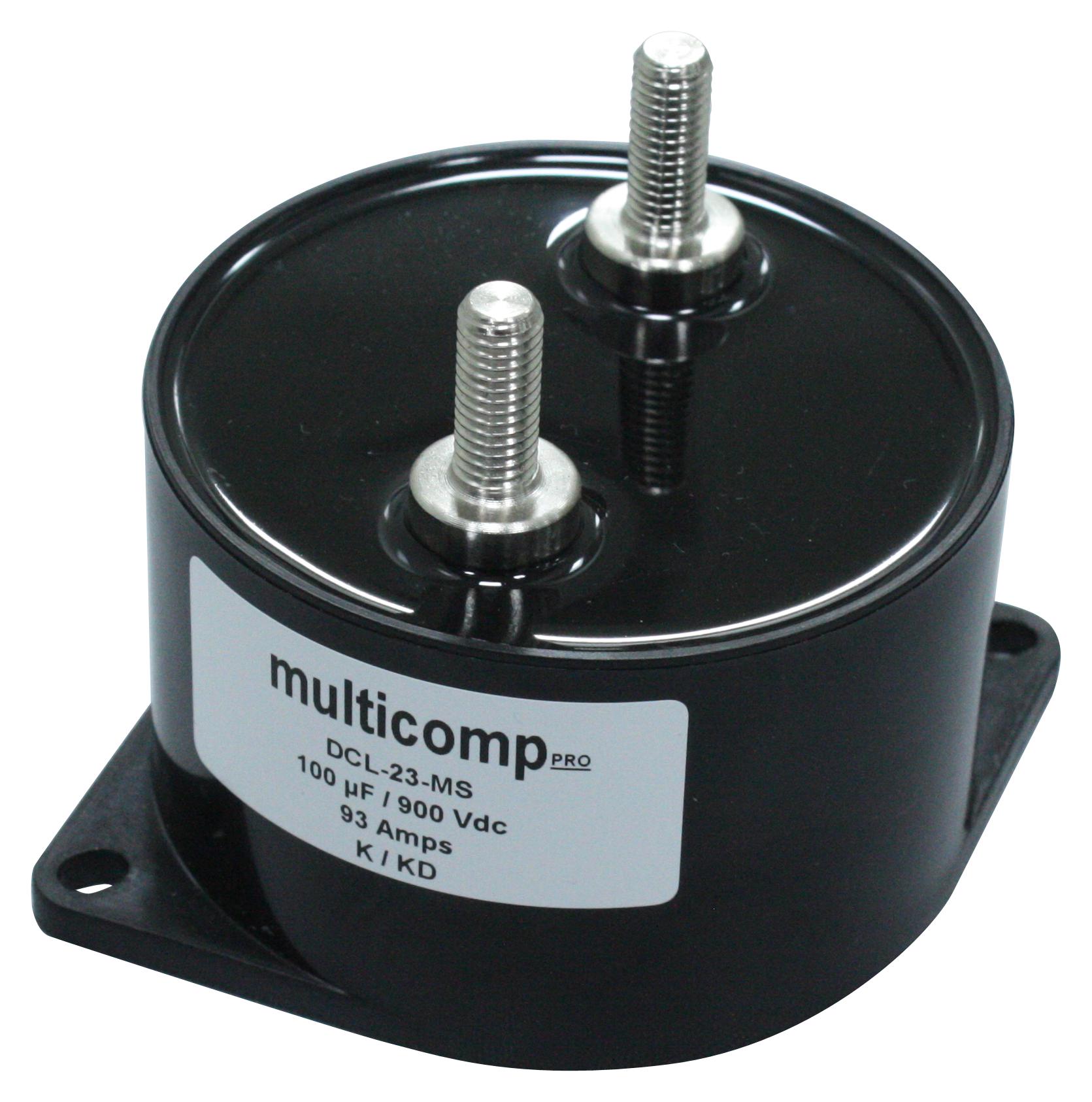

MULTICOMP-PRO MP003992 DC Link Film Capacitor
These high-performance DC link film capacitors feature metallized polypropylene film construction, low ESL of 11nH, and low ESR of 0.5mΩ, ensuring excellent filtering in power inverter and motor drive applications. They have integrated mounting flanges, flame retardant UL94-V0 plastic case, and operate at temperatures from 0°C to +105°C. Suitable for electric vehicle inverters, solar and wind power inverters, and induction heaters, these capacitors offer a life expectancy of up to 100,000 hours, with ratings up to 1800V DC and capacitance from 30μF to 265μF.
MULTICOMP-PRO MP003992 DC Link Film Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30μF to 265μF
- Tolerance: ±10%
- Rated voltage: 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V DC
- Test voltage: 1.3× rated voltage for 60 seconds, terminal to case KV AC at 50Hz for 60 seconds
- Dissipation factor: 0.0015 at 100Hz, 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: MΩ×μF at 25°C
- Marking: Includes grade, capacitance pF, rated voltage V DC, max current, tolerance, and part number
- Physical: Dimensions vary with model, typically 30mm to 85mm size, mounting flange included
- Features: Self-inductance as low as 11nH, ESR as low as 0.5mΩ, flame retardant UL94-V0, high thermal conductivity, life span up to 100,000 hours
Buy the Buy multicomp DC Link Film Capacitors Part Number MP003992 Online
Order the multicomp DC Link Film Capacitor MP003992 today through our online store to ensure high-quality, reliable performance for your power inverters, motor drives, and renewable energy projects. Featuring low inductance and ESR, these capacitors provide excellent filtering, high thermal conductivity, flame retardant construction, and a lifespan of up to 100,000 hours. Compact and easy to install, they are ideal for electric vehicle, solar, and wind power applications, supporting voltages up to 1800VDC and capacitance from 30μF to 265μF.
Buy multicomp MP003992 now and experience reliable filtering with low ESR, high current capacity, and long lifespan in power inverter systems.
