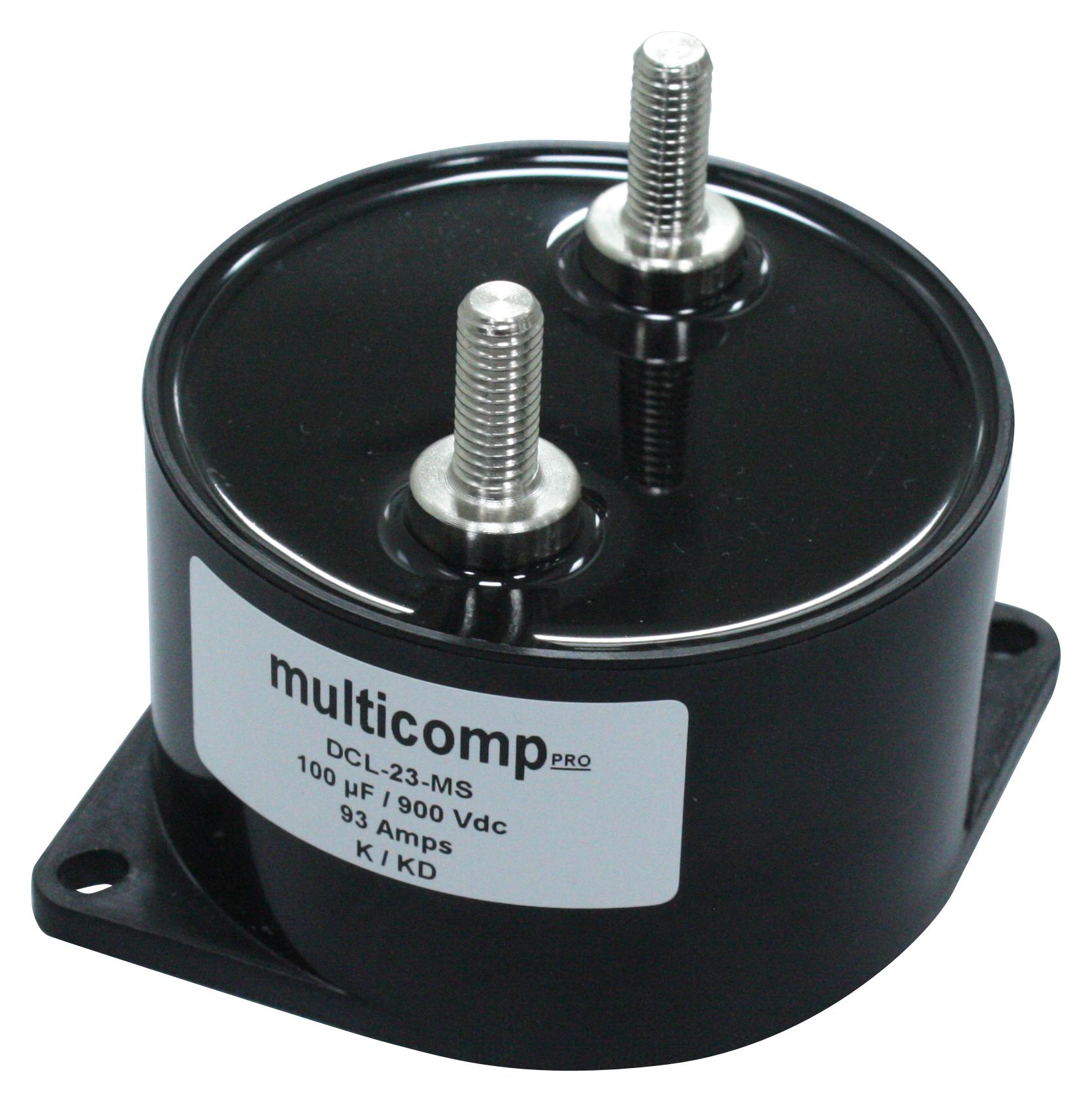

MULTICOMP-PRO MP003997 DC Link Capacitor
The DC Link Film Capacitors with screw and stud terminals are designed for high-voltage applications such as inverter power supplies, wind and solar power systems, and electric vehicle drives. Constructed with metallized polypropylene film, these capacitors feature low ESR, self-inductance, and excellent thermal conductivity, ensuring high efficiency and durability. They have a voltage rating up to 1800V DC, capacitance from 30UF to 265UF, and a temperature range from 0°C to +105°C. Integrated mounting flanges allow easy installation, and their flame-retardant UL94-V0 enclosure enhances safety and reliability in demanding electrical environments.
MULTICOMP-PRO MP003997 DC Link Capacitor Specifications:
- Electrode material: Metallized polypropylene film
- Winding construction: Polypropylene film, metallized polypropylene film
- Enclosure: Preformed UL94-V0 plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacity tolerance: ±10%
- Rated voltage: 700V DC to 1800V DC
- Test voltage between terminals: 1.3x rated voltage for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz, 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1000 MΩ x μF at 25°C
- Markings: Grade, capacitance in pF, rated voltage, max current, tolerance, manufacturing code
Buy the Multicomp Series DC Link Capacitor: MP003997
Purchase the Multicomp DC Link Capacitor MP003997 online today and ensure your power and inverter systems operate efficiently and reliably. With a voltage rating up to 1800V DC, capacitance from 30UF to 265UF, and a robust UL94-V0 flame-retardant enclosure, this capacitor is ideal for demanding electrical environments. Its low ESR, self-inductance, and excellent thermal conductivity ensure high performance and longevity. Easy to install with integrated mounting flanges, it’s a perfect choice for renewable energy, EV inverters, motor drives, and industrial power applications. Buy now for reliable operation!
Buy Multicomp DC Link Capacitor MP003997 now and experience unmatched reliability and high-voltage performance in inverter and power systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003997?
You can click on the BUY or RFQ button to purchase MP003997 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003997?
You can download the MP003997 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003997?
MULTICOMP-PRO
