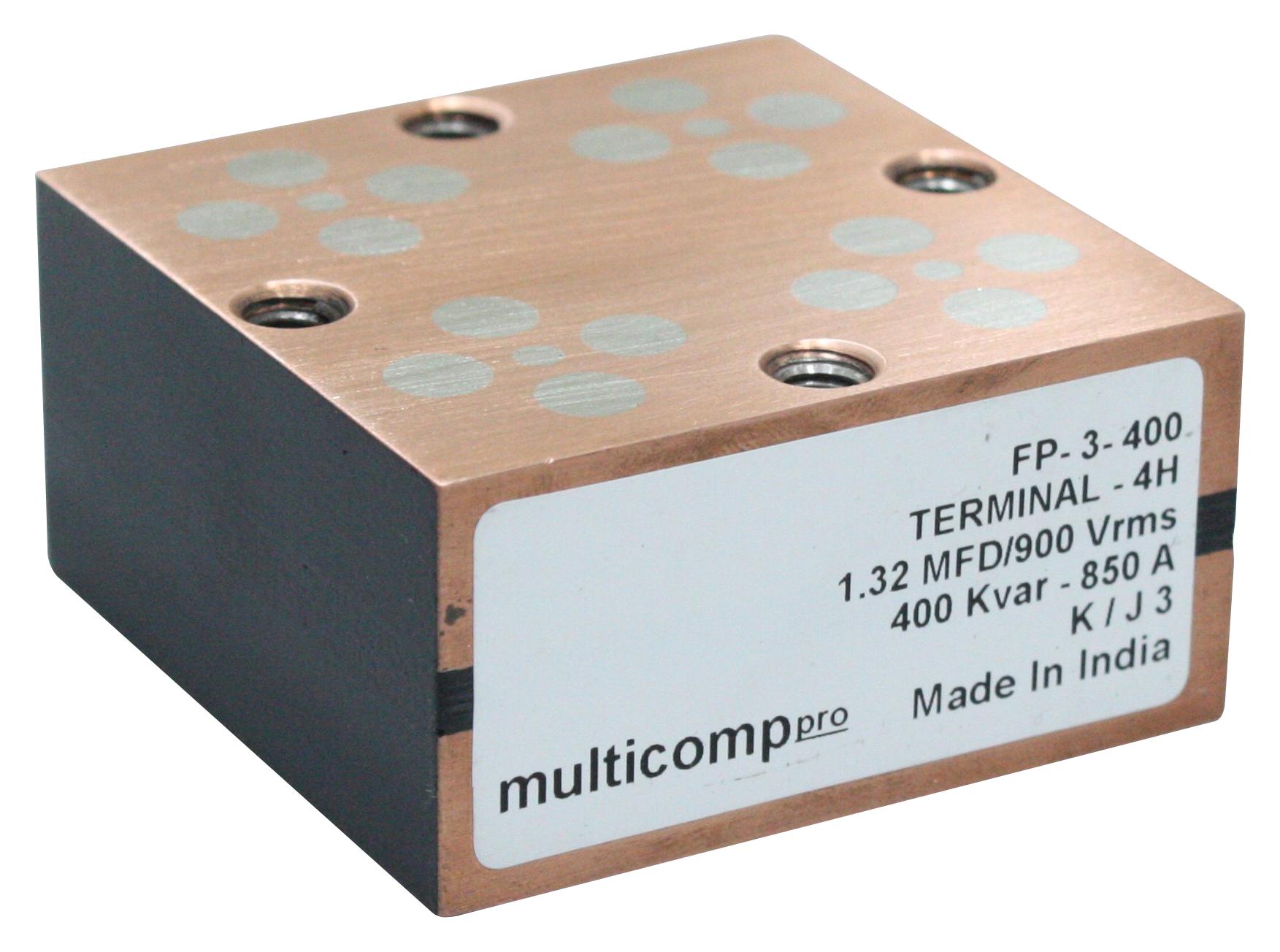

MULTICOMP PRO MP004044 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for high-frequency applications and high current operations. Features polypropylene dielectric, self-healing capabilities, and flame retardant UL94-V0 certification, ensuring durability and safety. Suitable for conduction-cooled systems operating up to 1000 kHz with maximum core temperature of 85°C. Capacitance tolerance is +10%, and these capacitors are available in various rated voltages and capacitance values, making them ideal for power generation, industrial equipment, and electrical systems that require reliable, high-performance power filtering and energy storage solutions.
MULTICOMP PRO MP004044 Power Film Capacitor Specifications:
- Rated Voltage: 500V to 900V rms
- Capacitance: 0.33 to 5.0 MFD
- Maximum Current: 50 to 850 ARMS
- Maximum Power: 400 KVAR
- Flammability: UL 94 V-0
- Dielectric Material: Polypropylene
- Operating Frequency: Up to 1000 kHz
- Maximum Operating Core Temperature: 85°C
- Capacitance Tolerance: +10%
- Terminal Style: Screw/Stud terminals
- Dimensions: Approximate length 60 mm, width 30 mm
- Tightening Torque: Max 15 Nm
Buy the Power Film Capacitors Series multicomp Power: MP004044
Order multicomp power film capacitors MP004044 online today for high-frequency power filtering and energy storage solutions. Featuring polypropylene dielectric and flame retardant UL94-V0 certification, these capacitors are suitable for conduction-cooled systems operating up to 1000 kHz with a maximum core temperature of 85°C. Available in various capacitance and voltage ratings, they deliver excellent stability, self-healing properties, and reliable performance under demanding industrial conditions. Secure your high-performance power components now with easy online purchasing.
Buy multicomp power film capacitors MP004044 now and experience reliable high-frequency performance for industrial and power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004044?
You can click on the BUY or RFQ button to purchase MP004044 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004044?
You can download the MP004044 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004044?
MULTICOMP PRO
