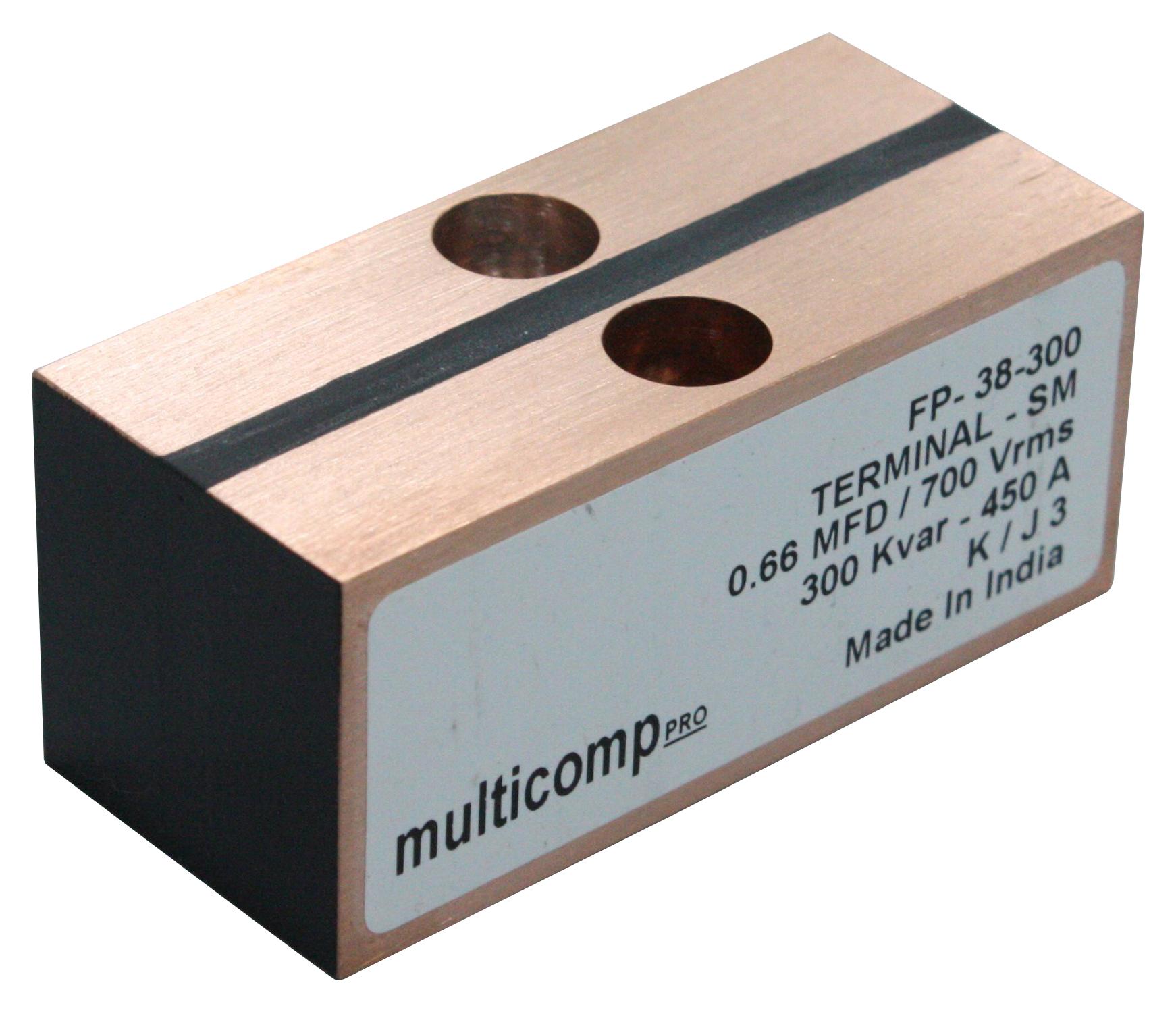

MULTICOMP-PRO MP004063 Power Film Capacitors
Power film capacitors with screw and stud terminals designed for industrial applications. Featuring polypropylene dielectric, self-healing properties, and RoHS compliance, these capacitors operate at frequencies up to 1000 kHz and a maximum temperature of 85°C. Suitable for power filtering and industrial power supply systems, they offer reliable performance with standard ratings up to 1.33 MFD at 600 VRMS. Their flame-retardant UL94-V0 casing ensures safety and durability in demanding environments, making them ideal for high-frequency power smoothing, filtering, and energy storage applications.
MULTICOMP-PRO MP004063 Power Film Capacitors Specifications:
- Capacitance: 0.33 MFD to 1.33 MFDvaries by model
- Rated Voltage: 500 VRMS to 700 VRMS
- Operating Temperature: Up to 85°C
- Frequency Range: Up to 1000 kHz
- Dielectric: Polypropylene
- Construction: Self-healing, flame retardant UL94-V0
- Terminals: Screw and stud style, tightening torque max 15 Nm
- Dimensions: Approximately 30 to 68 mm length, diameter varies by model
- Maximum Operating Current: 225-600 ARMS depending on model
- Maximum Power: 300 KVAR at rated voltages
- Features: RoHS compliant, conduction cooled, high-frequency applications
Buy the Multicomp Power Film Capacitors – Reliable Power Capacitors for Industrial Applications
Order Multicomp Power Film Capacitors online for your industrial power filtering needs. Designed with polypropylene dielectric, self-healing features, and flame-retardant UL94-V0 casings, these capacitors support frequencies up to 1000 kHz and operate at temperatures up to 85°C. Their screw and stud terminals ensure secure connections, suitable for power smoothing, energy storage, and industrial applications. Whether you need 0.33 MFD or 1.33 MFD ratings at voltages up to 700 VRMS, buying online provides reliable, high-performance components delivered quickly for your power systems.
Get Multicomp Power Film Capacitors today—built for precision, safety, and long-lasting durability in industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004063?
You can click on the BUY or RFQ button to purchase MP004063 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004063?
You can download the MP004063 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004063?
MULTICOMP-PRO
