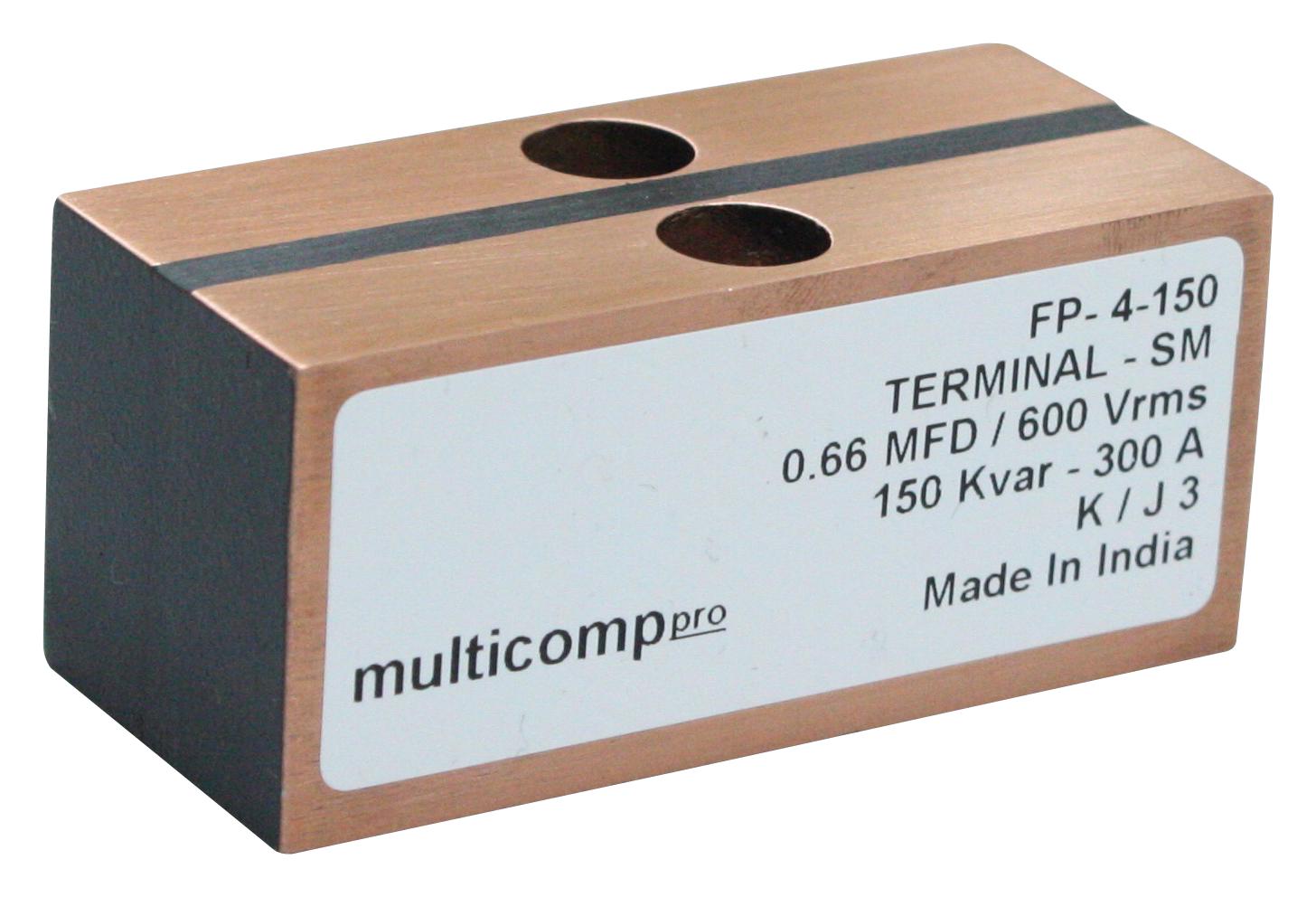

MULTICOMP-PRO MP004077 Power Film Capacitor
The power film capacitors with screw and stud terminals are conduction cooled, self-healing, and feature polypropylene dielectric for high reliability. Designed to operate up to 700kHz with a maximum core temperature of 85°C, these capacitors provide stable performance in power applications. They include flame-retardant UL94-V0 compliant materials and RoHS compliance, making them suitable for industrial and electrical systems demanding robust, safe, and efficient capacitor solutions. Suitable for use in power filtering, snubbers, and motor drive circuits, these capacitors ensure durability and high performance.
MULTICOMP-PRO MP004077 Power Film Capacitor Specifications:
- Dielectric: Polypropylene
- Operating Frequency: Up to 700kHz
- Maximum Core Temperature: 85°C
- Voltage Range: 400 VRMS to 700 VRMS
- Capacitance Range: 0.05 MFD to 2.4 MFD
- Rated Current: 200 ARMS to 400 ARMS
- Power: Up to 150 KVAR
- Flammability: UL94-V0
- RoHS Compliant
- Terminal Style: Screw/Stud
- Tightening Torque: Max 15 Nm
- Dimensions: Variable, mm - B=30.2, L=68-82.0
- Frequency Derating: Noticeable at various frequency levels
- Construction: Conduction cooled, self-healing
Buy the Multicomp Series Power Film Capacitors: MP004077
Order the Multicomp Series Power Film Capacitors MP004077 online today and benefit from high-quality, conduction cooled design featuring polypropylene dielectric. Ideal for power filtering and motor drives, these self-healing capacitors operate up to 700kHz with a maximum temperature of 85°C. They are flame-retardant UL94-V0, RoHS compliant, and feature screw/stud terminals for easy installation. Enhance your electrical systems’ stability and efficiency with these durable, reliable capacitors, available now for quick delivery and seamless integration into your projects.
Buy Multicomp power film capacitor MP004077 now and experience unmatched reliability and high-frequency performance for industrial applications.
