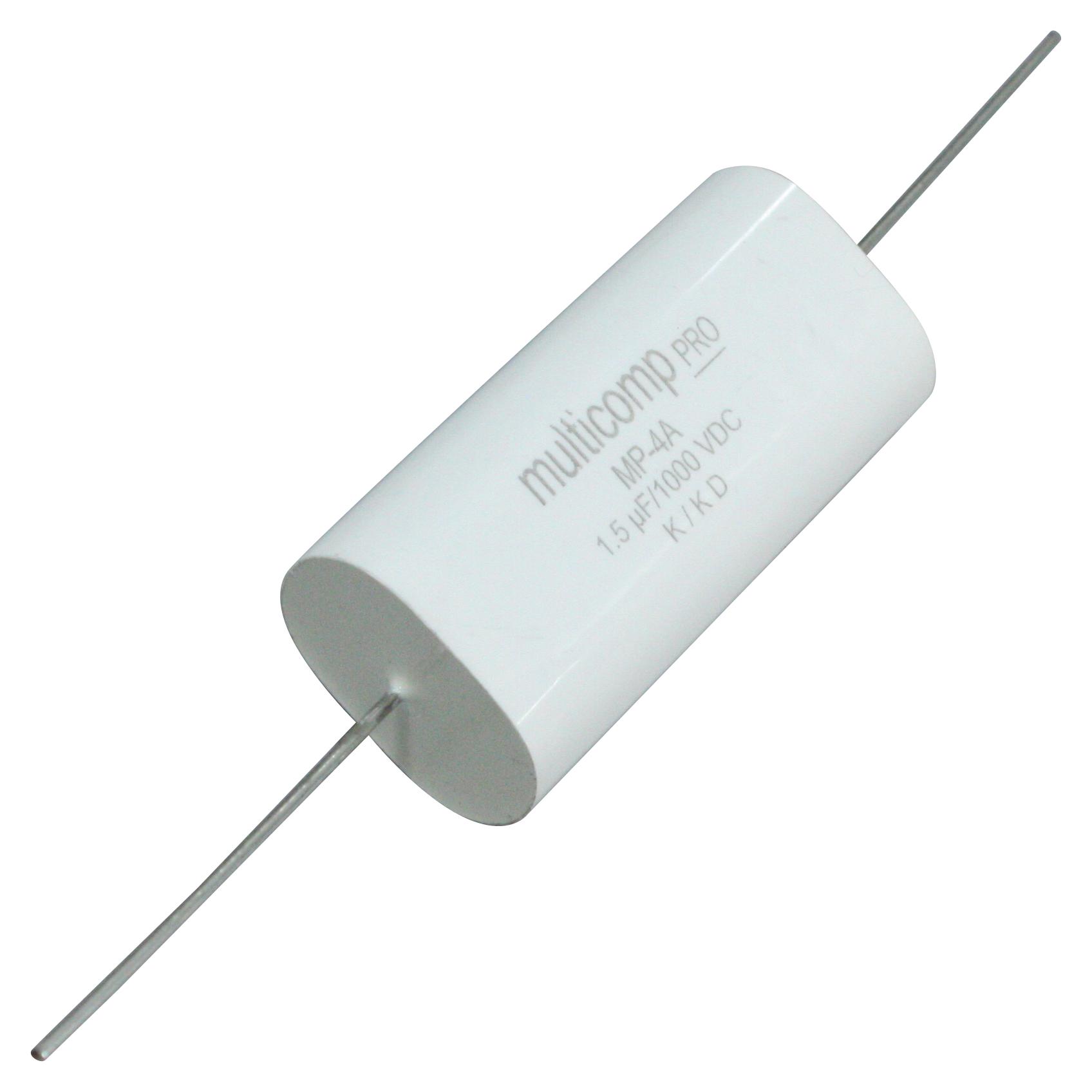

MULTICOMP PRO MP004199 Snubber Capacitor
High-quality axial leaded snubber capacitor designed with low-loss polypropylene dielectric, suitable for high voltage and high current applications such as snubber circuits, speed control, and SMPS. Features extended double metallized polyester electrodes with metallized polypropylene dielectric internal series connection, flame-retardant UL 94-V0, and compliance with IEC 61071 standards. This capacitor offers high peak current handling, high frequency and voltage capabilities, low ESR, and excellent electrical stability over a temperature range of -55°C to +105°C. Ideal for medium to high pulse and switching applications.
MULTICOMP PRO MP004199 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallized polypropylene film
- Winding construction: Extended double metallized polyester electrodes with metallized polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UL 94 V-0 flame retardant polypropylene tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51 μF
- Capacity tolerance: ±5% (J), ±10% (K)
- Rated voltage V DC: 600, 850, 1000, 1200, 1600, 2000, 2500, 3000 V
- Rated voltage V AC: 275, 450, 500, 630, 700, 750 V
- Test voltage between terminals: 2x rated V DC for 10 seconds
- Test voltage terminal to case: 2.3 kV AC
- Dissipation factor: < 0.0005 at 1 kHz and 25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 min
- Temperature range: -55°C to +105°C
- Maximum working voltage at +85°C: Full rated voltage; at +105°C: Half rated voltage
Buy the Buy multicomp:ro Snubber Capacitors Part Number MP004199 Online
Order the multicomp:ro MP004199 snubber capacitor online today to ensure your high voltage, high current, and pulse applications operate reliably and efficiently. Designed with polypropylene dielectric for low loss and high peak current handling, this flame-retardant capacitor meets IEC standards and provides excellent electrical stability. Its robust construction and wide temperature range of -55°C to +105°C make it ideal for medium to high pulse and switching applications such as snubber circuits, speed control, and SMPS. Purchase now for quick delivery and performance assurance.
Buy multicomp:ro MP004199 now and experience unmatched reliability and performance for high voltage snubber applications, speed control, and switching power supplies.
