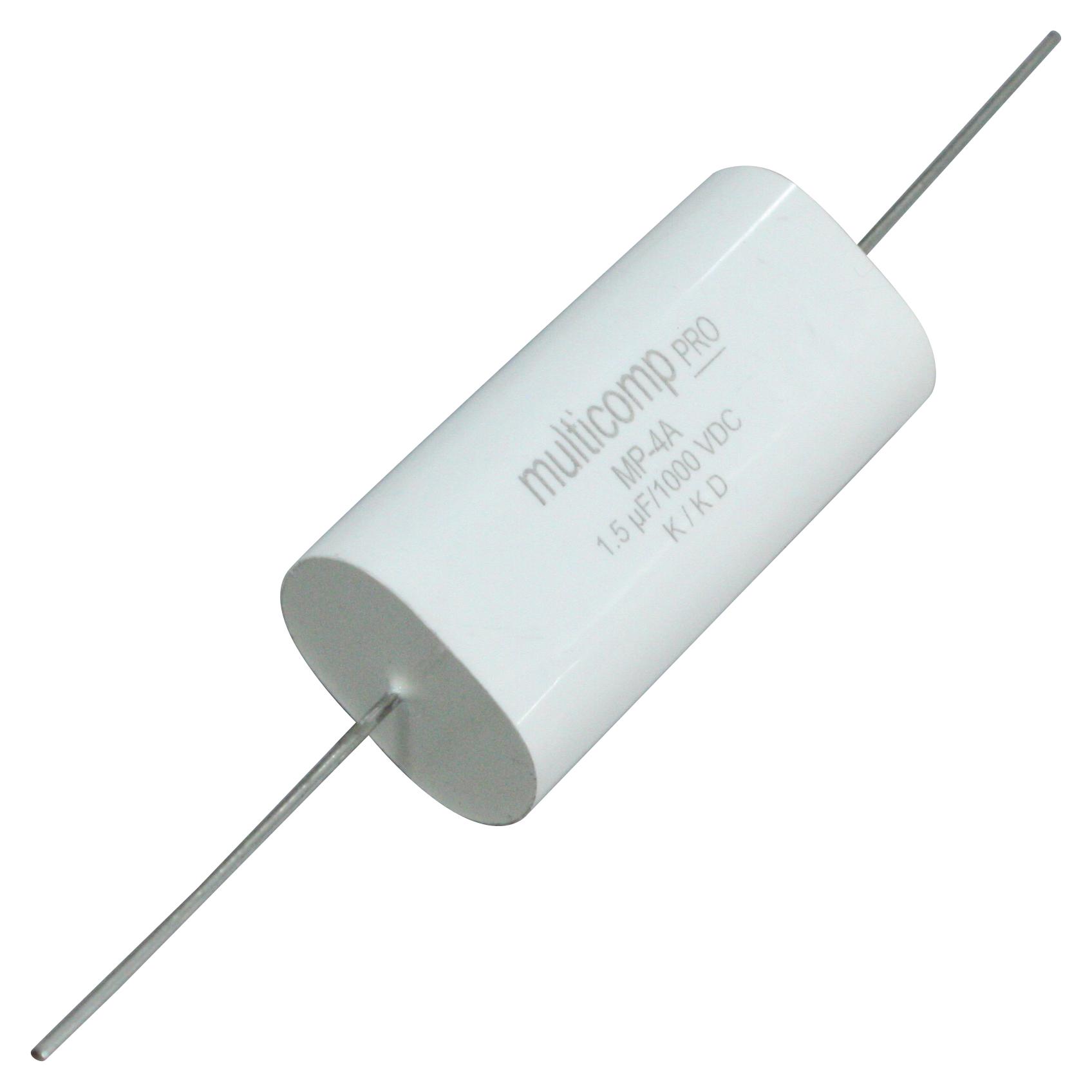

MULTICOMP PRO MP004217 Snubber Capacitor
These axial leaded snubber capacitors are designed for high voltage, high current, and medium to high pulse applications, including snubber circuits, speed control, and switch mode power supplies. Featuring low-loss polypropylene dielectric, metallised polyester and polypropylene films, they offer high peak currents, high DV/DT capabilities, low ESR, and are flame retardant UL94-V0. Suitable for demanding environments, they are RoHS compliant, with various voltage ratings up to 2000V DC and capacitance from 0.0151 to 51μF, making them reliable for power electronics and industrial applications.
MULTICOMP PRO MP004217 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film with double metallized polyester
- Electrode material: Tinned copper
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric
- Terminal: AXL style
- Enclosure: Tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151-51μF
- Capacitance tolerance: ±5%(J), ±10%(K)
- Rated voltage DC: Up to 2000 V
- Rated voltage AC: From 450 V to 630 V depending on model
- Test voltage: 2x rated V DC for 10 seconds; 2-3kV AC between terminals
- Dissipation factor: < 0.0005 at 1kHz, +25°C
- Insulation resistance: >100,000 MΩ at 100 VDC after 2 min
- Temperature range: -55°C to +105°C, with voltage derating at higher temperatures
- Dimensions vary by capacitance and voltage; for example, 0.22μF capacitor at 17.5mm diameter, 34mm length
Buy the Multicomp Series Snubber Capacitors: MP004217
Order the Multicomp axial leaded snubber capacitor MP004217 online today for high voltage, high current power applications. Perfect for snubber circuits, switch mode power supplies, and speed control systems, these capacitors feature polypropylene dielectric, metallised films, and are UL94-V0 flame retardant. They offer excellent peak current handling, high DV/DT capability, low ESR, and a wide voltage range up to 2000V DC. Ensure optimal performance and reliability in demanding industrial environments by purchasing online now.
Buy Multicomp axial leaded snubber capacitors at MP004217 now and experience unmatched reliability and high pulse performance in power electronics.
