MULTICOMP-PRO MP004239 Snubber Capacitor
High-performance snubber capacitor designed for high voltage, high current, and medium to high pulse applications such as snubber circuits, speed control, and SMPS. It features low-loss polypropylene dielectric, double metallised polyester electrodes, and metallised polypropylene film, providing excellent high-frequency and high-voltage capability, high peak current, and low ESR. Suitable for demanding electrical environments, it conforms to IEC 61071 standards, is UL94-VO flame retardant, and is RoHS compliant, ensuring safety and environmental standards are met. Compact and durable, ideal for industrial electronics and power electronics applications.
MULTICOMP-PRO MP004239 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallised polypropylene film
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UL94-VO flame retardant polypropylene tape wrap with thermosetting resin end fill
- Capacitance range: 0.0151 to 51 μF
- Capacity tolerance: ±5% (J), ±10% (K)
- Rated voltage DC: 600V, 850V, 1000V, 1200V, 1600V, 2000V, 2500V, 3000V
- Rated voltage AC: 275V to 750V depending on model
- Test voltage: 2x rated V DC for 10 sec, 2-3 kV AC test voltage
- Dissipation factor: < 0.0005 at 1 kHz and +25°C
- Insulation resistance: > 100,000 MΩ at 100 V DC after 2 min
- Temperature range: -55°C to +105°C, full rated voltage up to +85°C, half rated voltage at +105°C
- Peak current: Varies with model, up to 750 Amps
- Maximum RMS current at 70°C: up to 750 Amps
- Physical dimensions vary by capacitance and voltage rating, with typical sizes around 17-33 mm diameter and length 34-54 mm

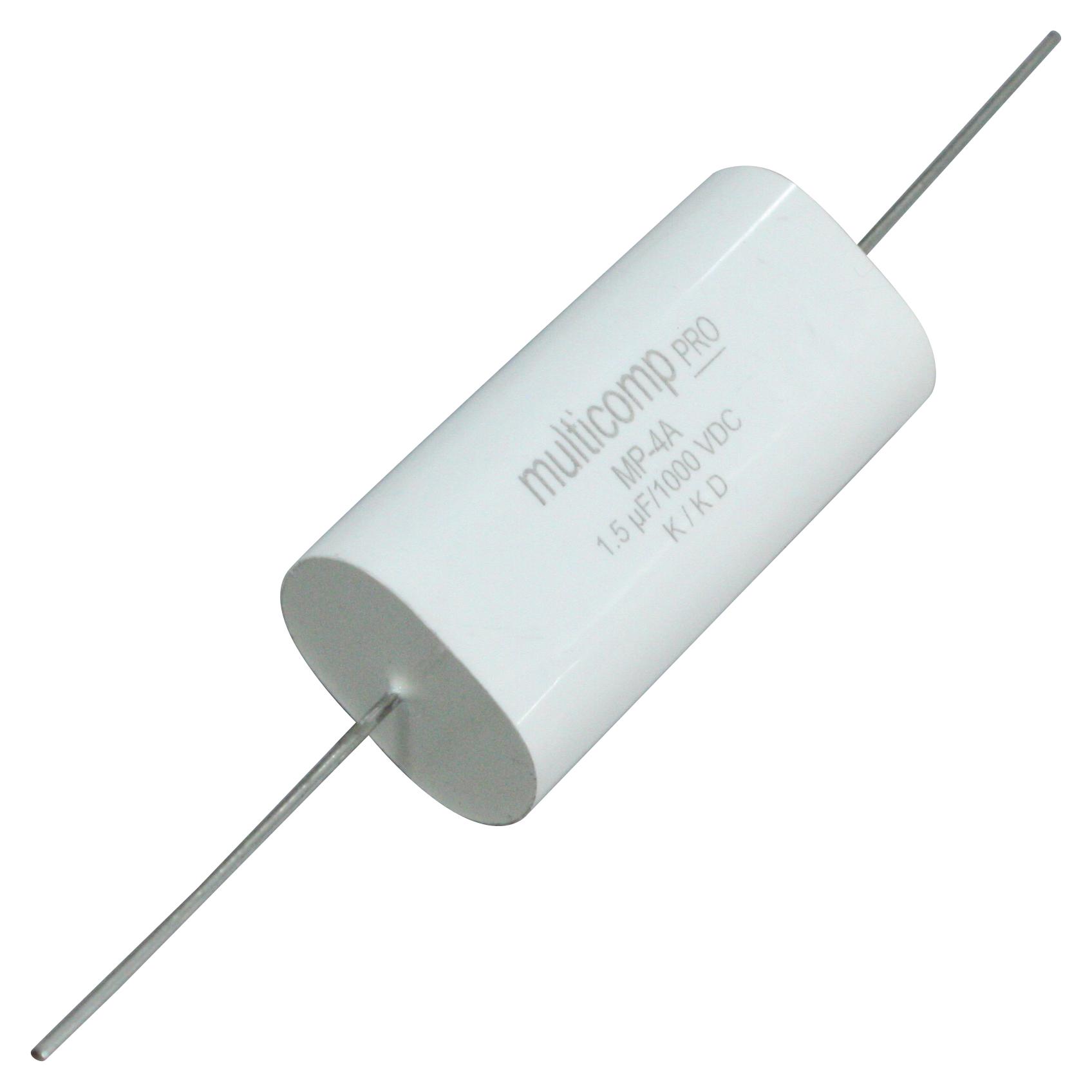

Buy the Buy Multicomp Capacitor Part Number MP004239 Online
Upgrade your power electronics with the high-quality snubber capacitor by Multicomp. Designed for high voltage and high current applications, it features polypropylene dielectric and excellent thermal stability. Whether for snubber circuits, speed control, or switching power supplies, this capacitor offers low ESR, high peak current capacity, and compliance with IEC standards. Easy to install with durable construction, it ensures long-lasting performance in demanding industrial environments. Purchase online today to enhance your electronic designs with confidence.
Buy Multicomp MP004239 now and experience reliable high-voltage performance in your power electronics projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004239?
You can click on the BUY or RFQ button to purchase MP004239 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004239?
You can download the MP004239 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004239?
MULTICOMP-PRO
